Ignition System: Overhaul: Disassembly
- Disconnect vacuum hoses from distributor. Disconnect primary wires from ignition coil. Remove distributor cap and spark plug wires. Remove distributor hold-down bolt and remove distributor.

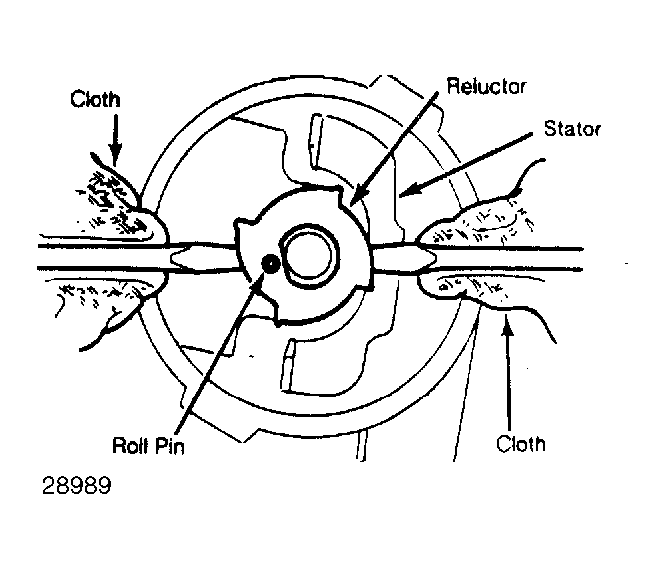

- Carefully pry upward on reluctor with 2 screwdrivers cushioned with shop rags to prevent damage. See Fig 1. Use care not to damage reluctor or stator.
- Remove vacuum advance diaphragm arm screw. Remove vacuum advance diaphragm mounting screws. Pull out diaphragm. Remove ignitor, stator and breaker plate assembly. Remove rotor shaft and thrust washer.
- Slide off pin retainer being careful not to stretch it. Remove roll pin and coupling from distributor shaft. Remove shaft from housing. Remove thrust plate, ball bearing and oil seal. Inspect and replace parts as necessary.
