Code 13: Atmospheric Pressure Sensor

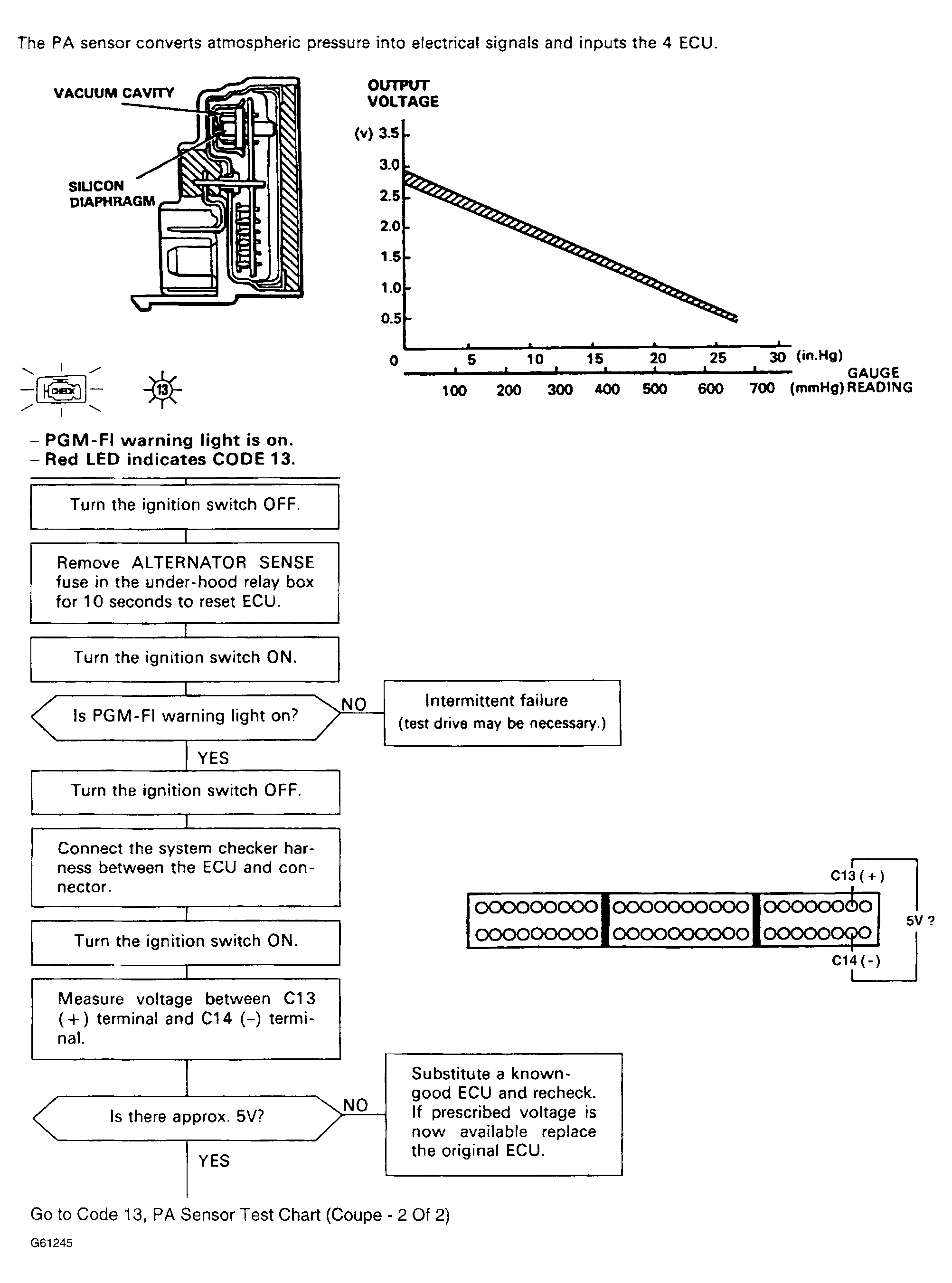

Fig 1: Code 13, PA Sensor Test Chart (Coupe - 1 Of 2)
G61245

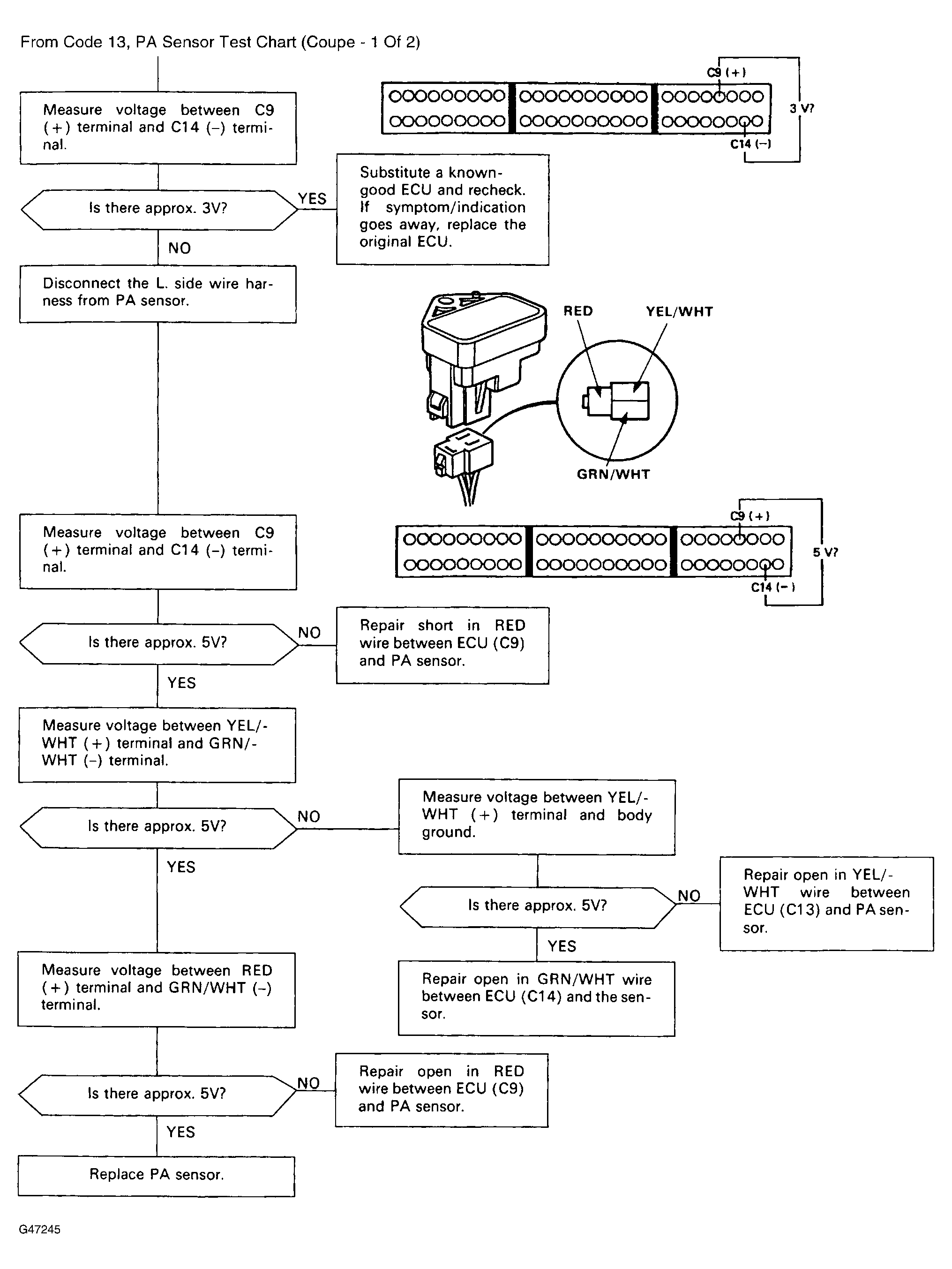

Fig 2: Code 13, PA Sensor Test Chart (Coupe - 2 Of 2)
G47245

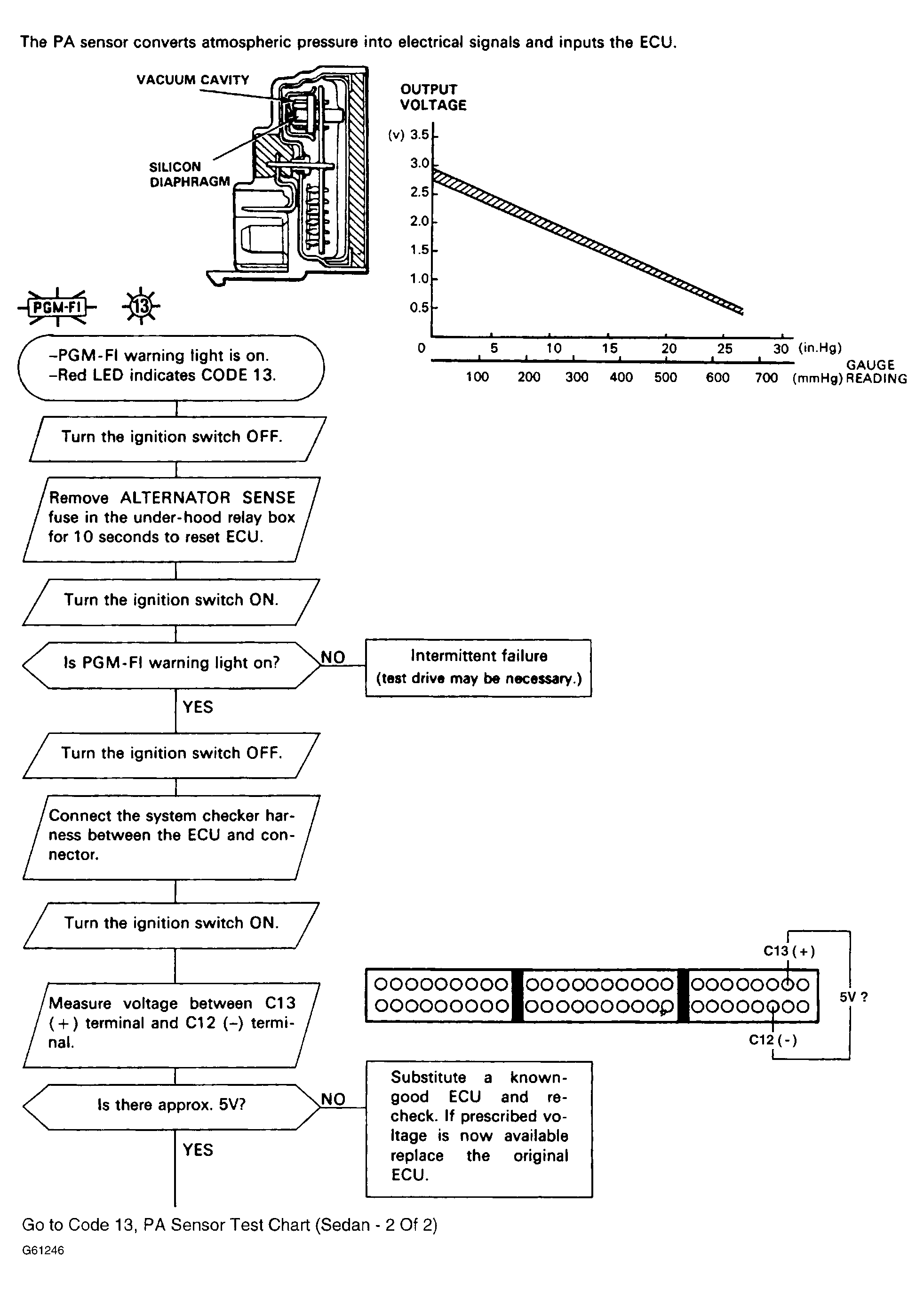

Fig 3: Code 13, PA Sensor Test Chart (Sedan - 1 Of 2)
G61246

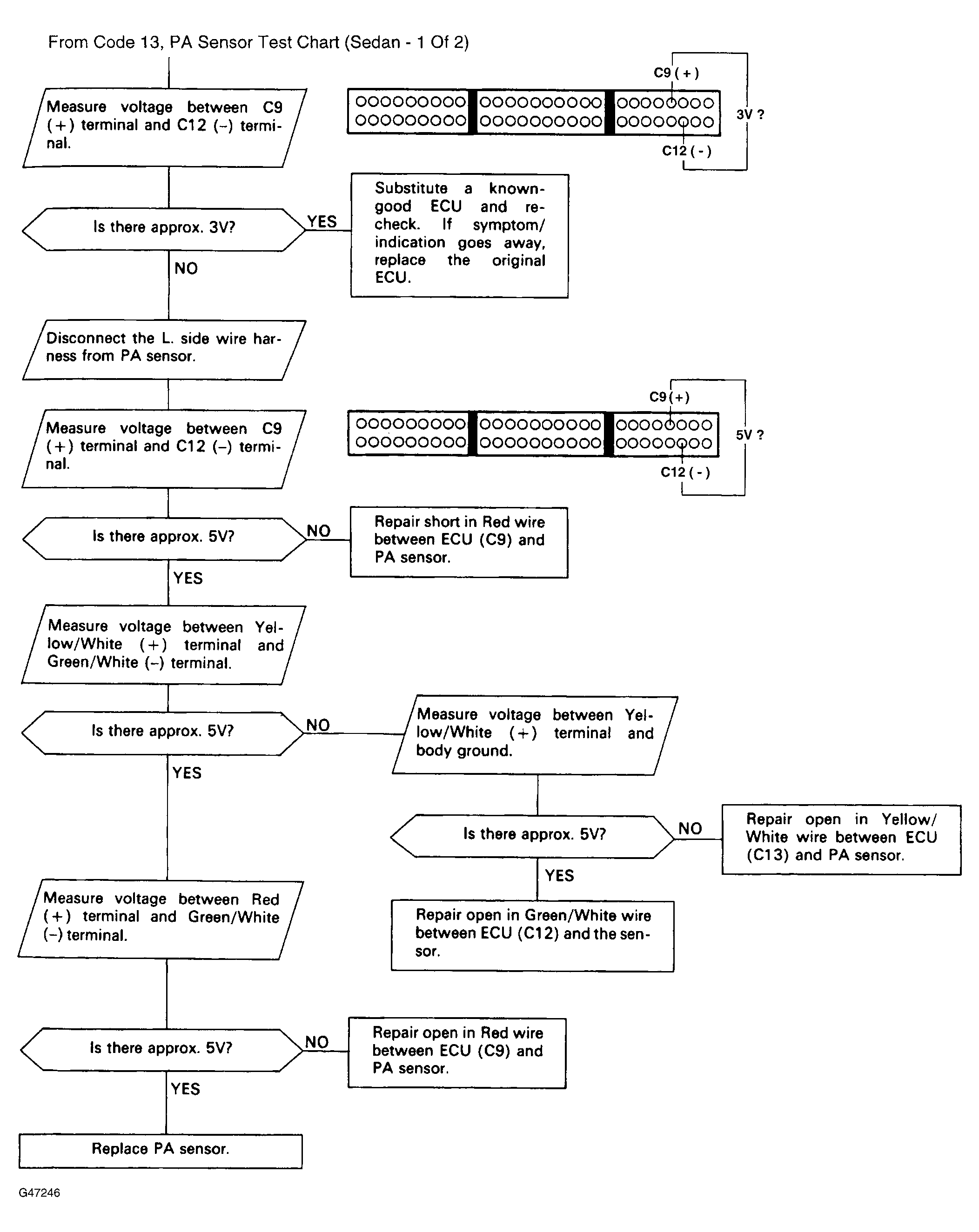

Fig 4: Code 13, PA Sensor Test Chart (Sedan - 2 Of 2)
G47246
