Code 13 - Atmospheric Pressure Sensor

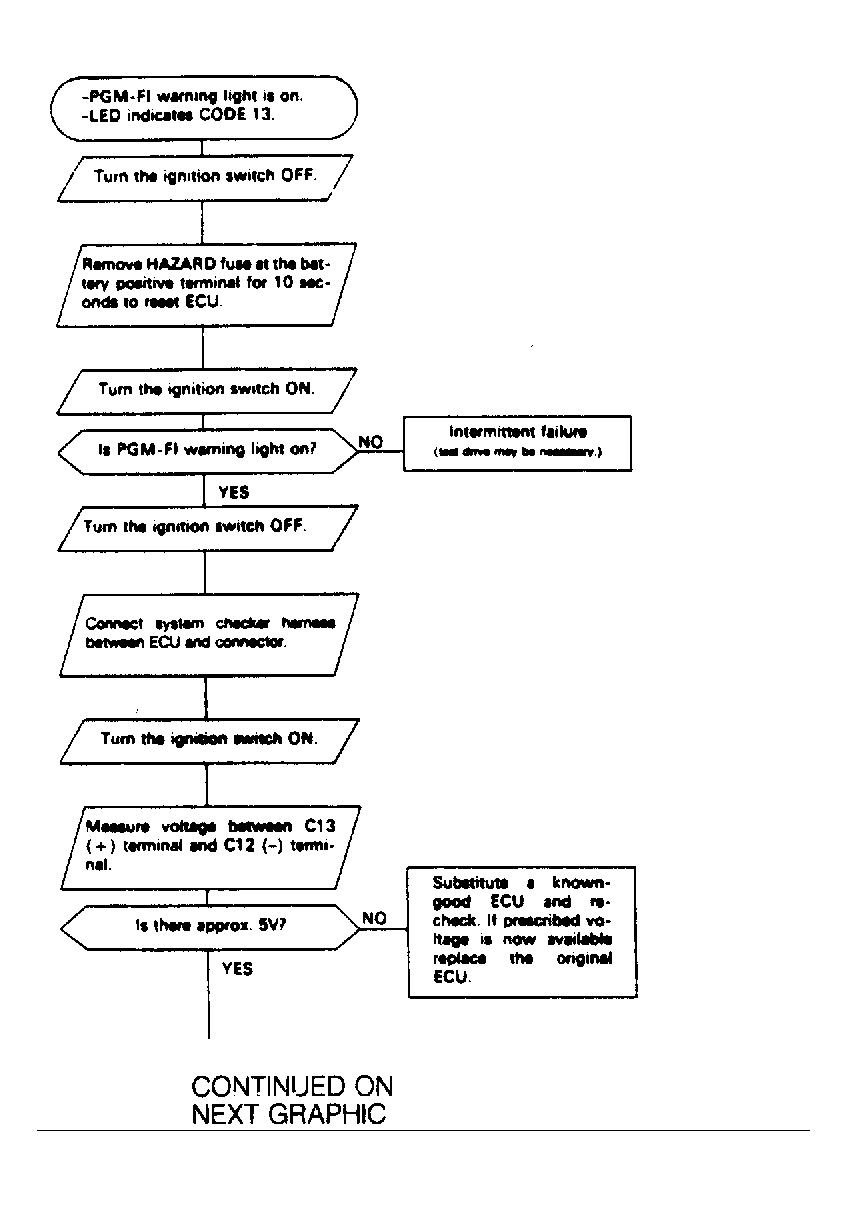

Fig 1: Code 13, PA Sensor Test Chart, Integra (1 of 2)
G61244

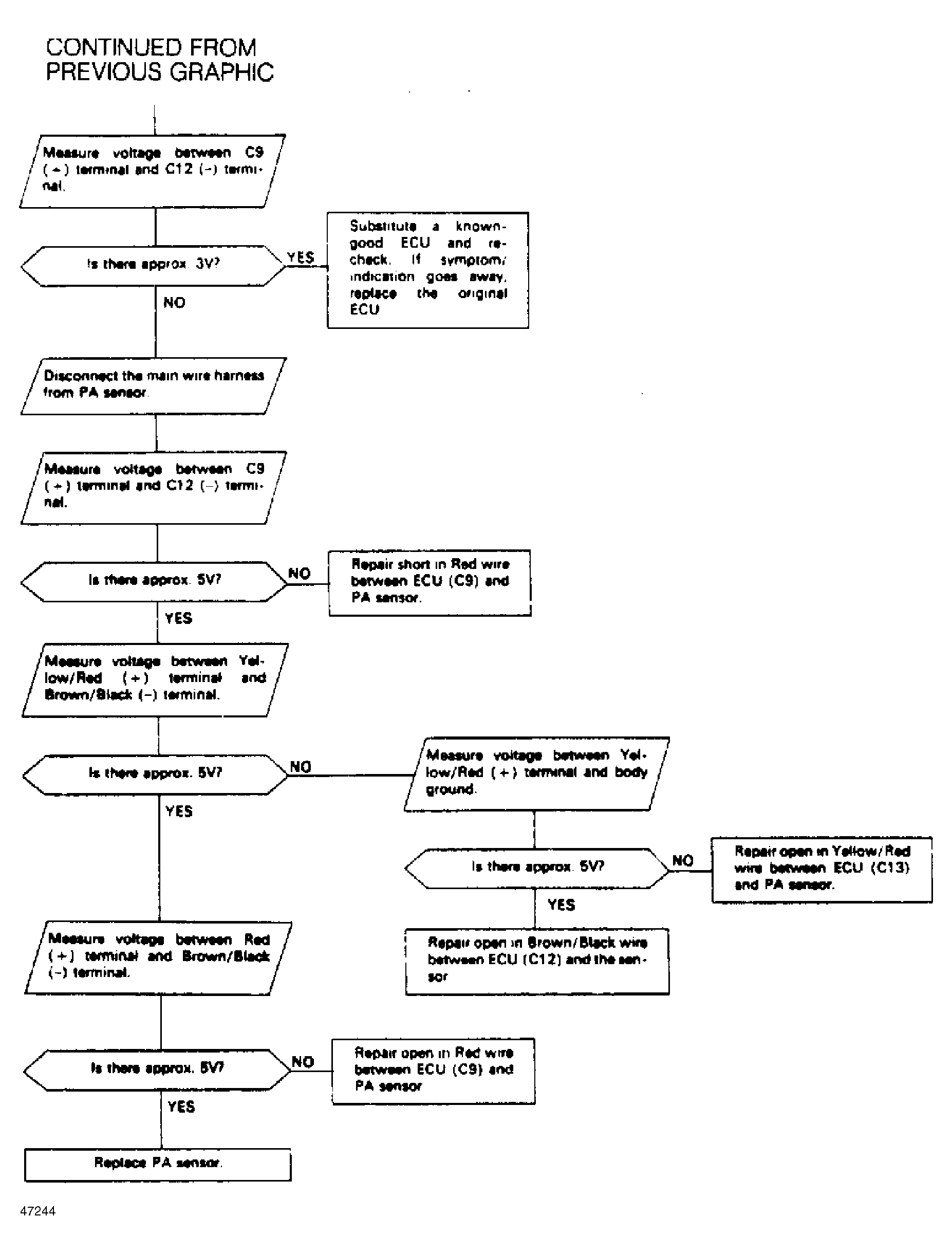

Fig 2: Code 13, PA Sensor Test Chart, Integra (2 of 2)
G47244
