Code 3 & 5 - Manifold Air Pressure Sensor

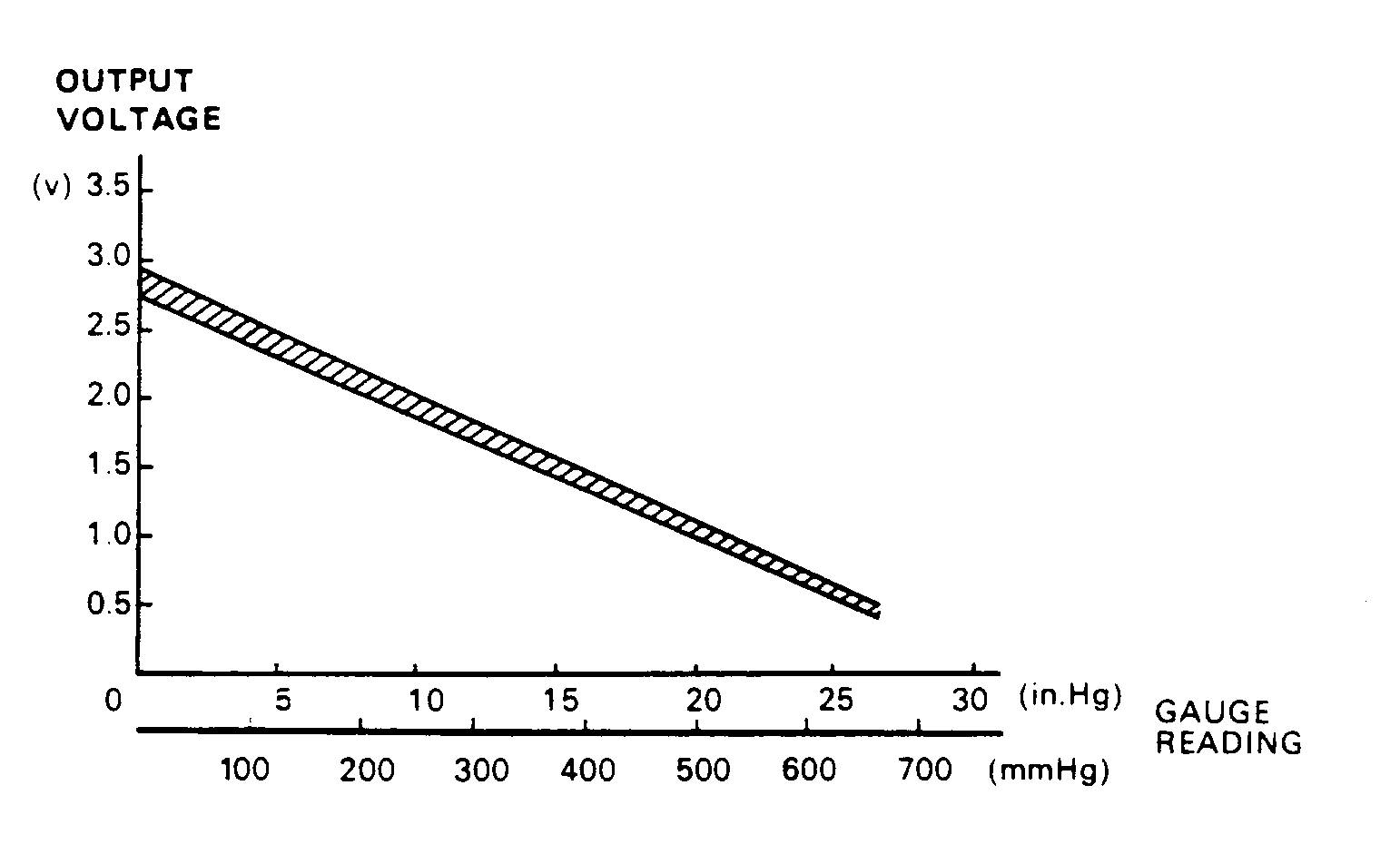

Fig 1: MAP Sensor Output Voltage Graph, Integra
G200146

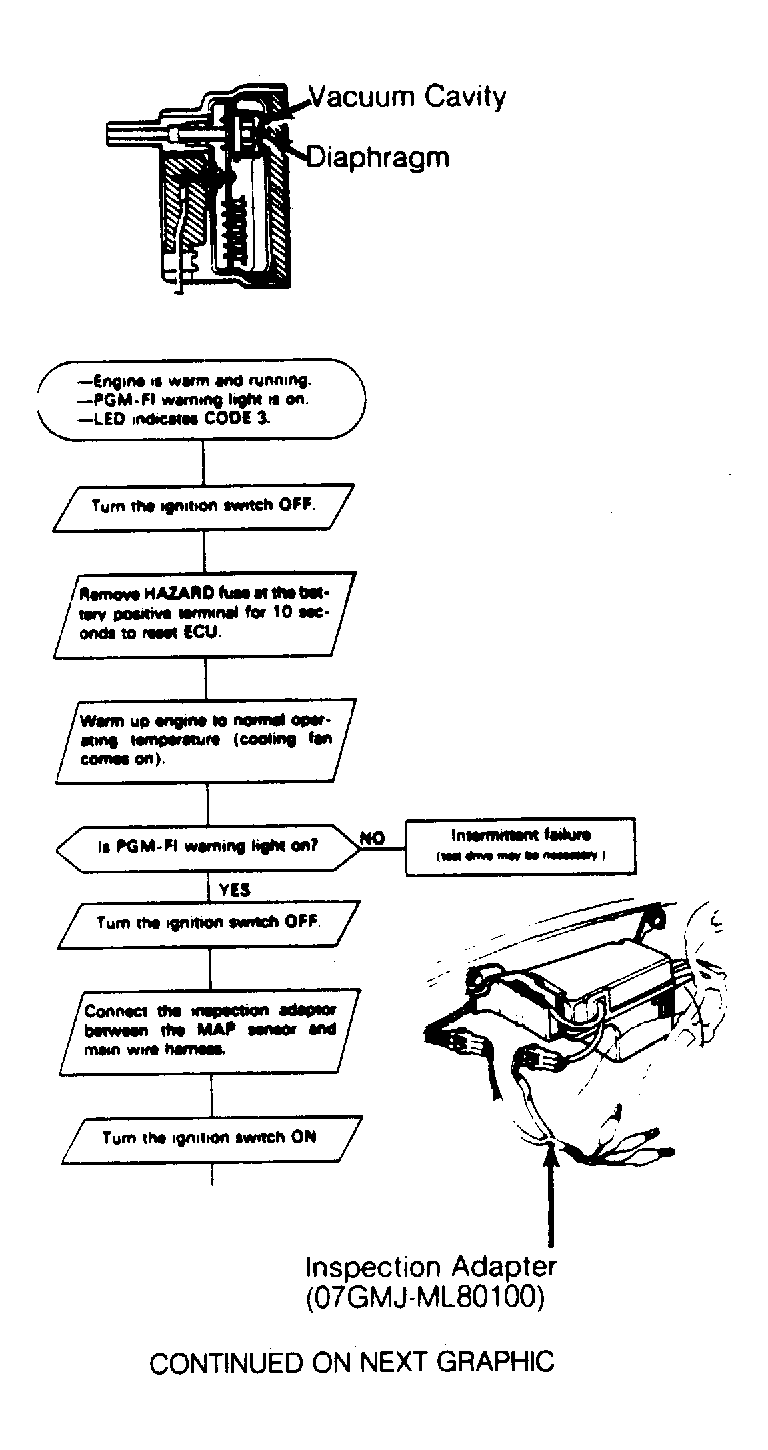

Fig 2: Code 3, MAP Sensor Test Chart, Integra (1 of 2)
G61226

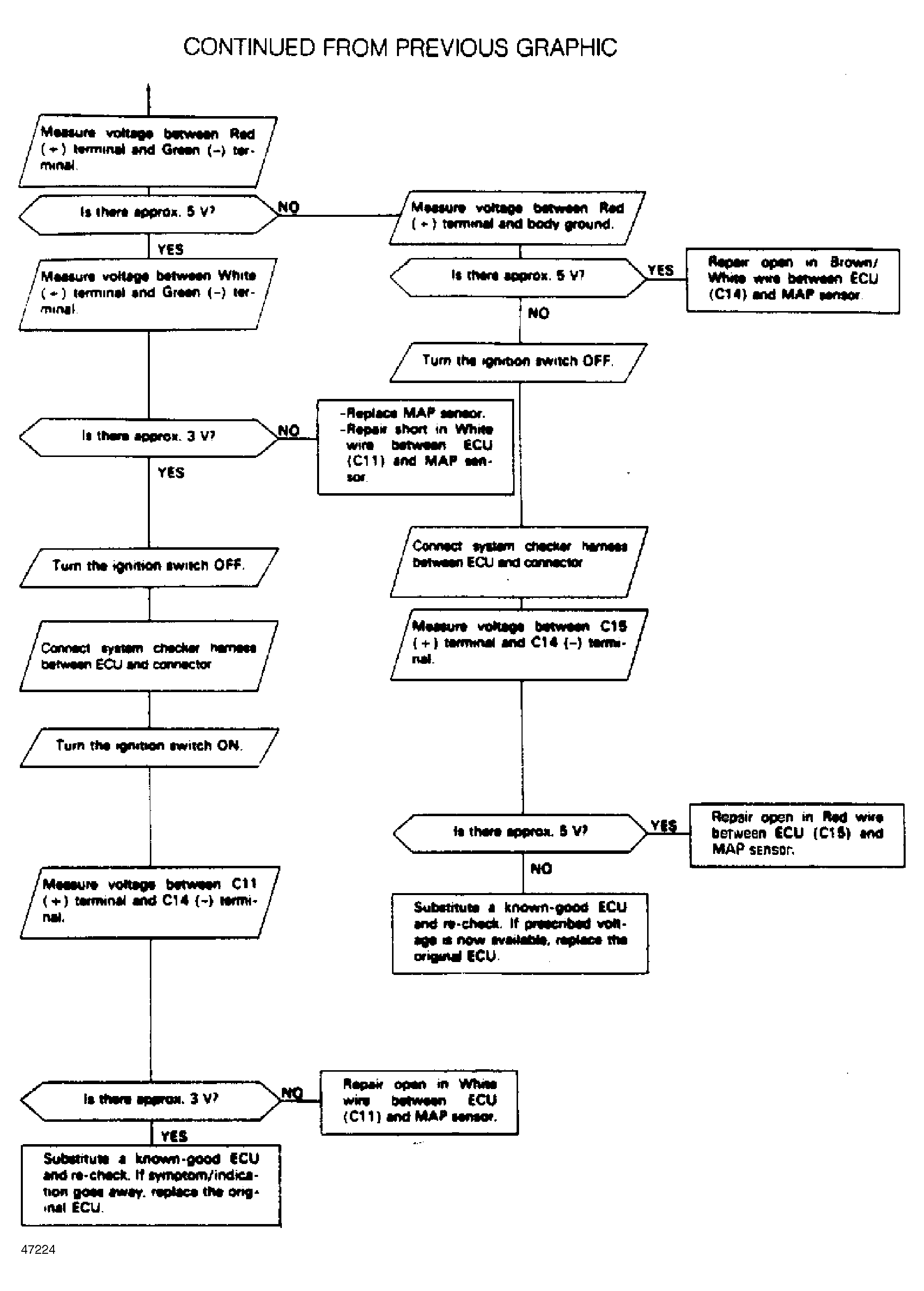

Fig 3: Code 3, MAP Sensor Test Chart, Integra (2 of 2)
G47224

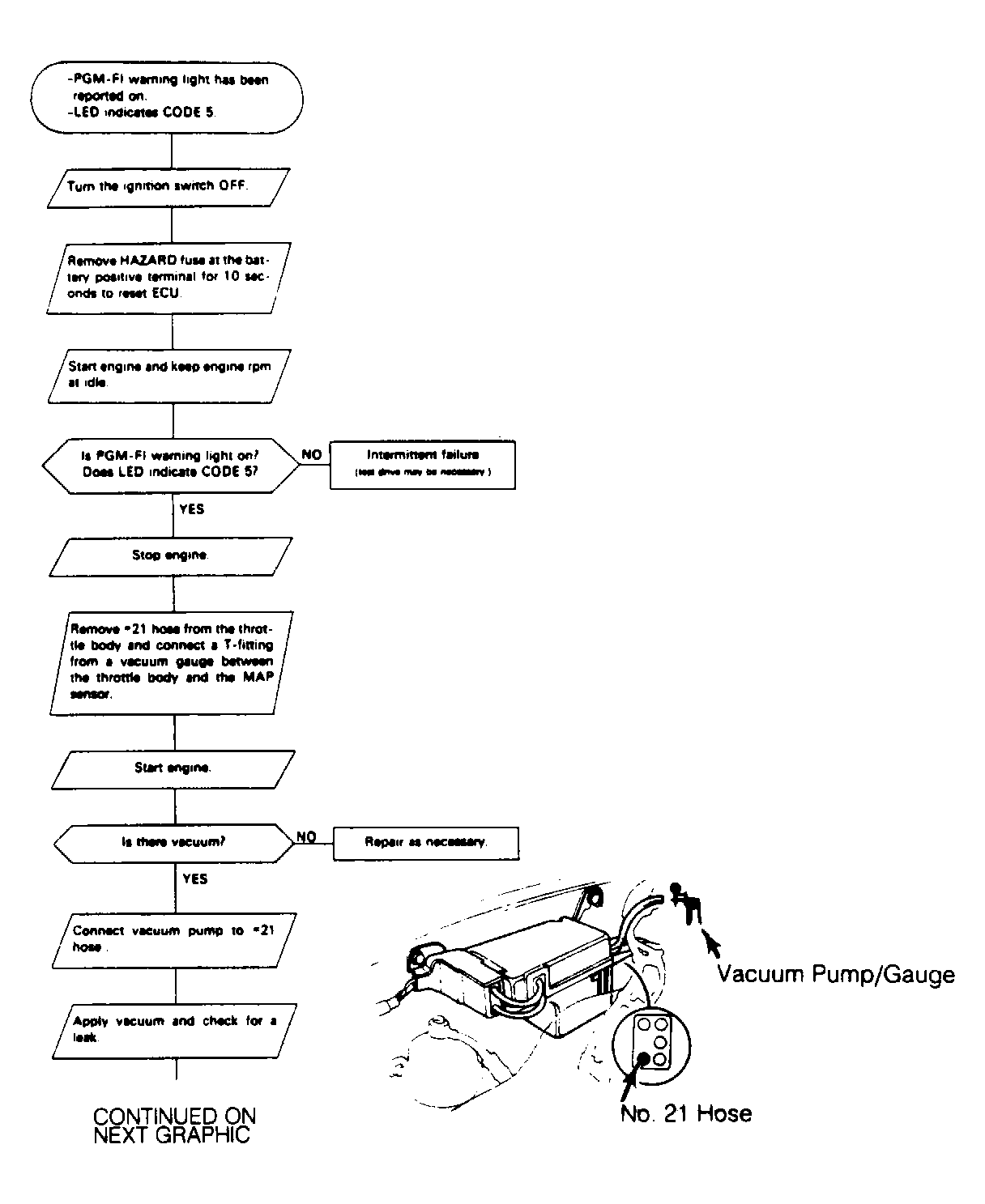

Fig 4: Code 5, MAP Sensor Test Chart, Integra (1 of 2)
G61227

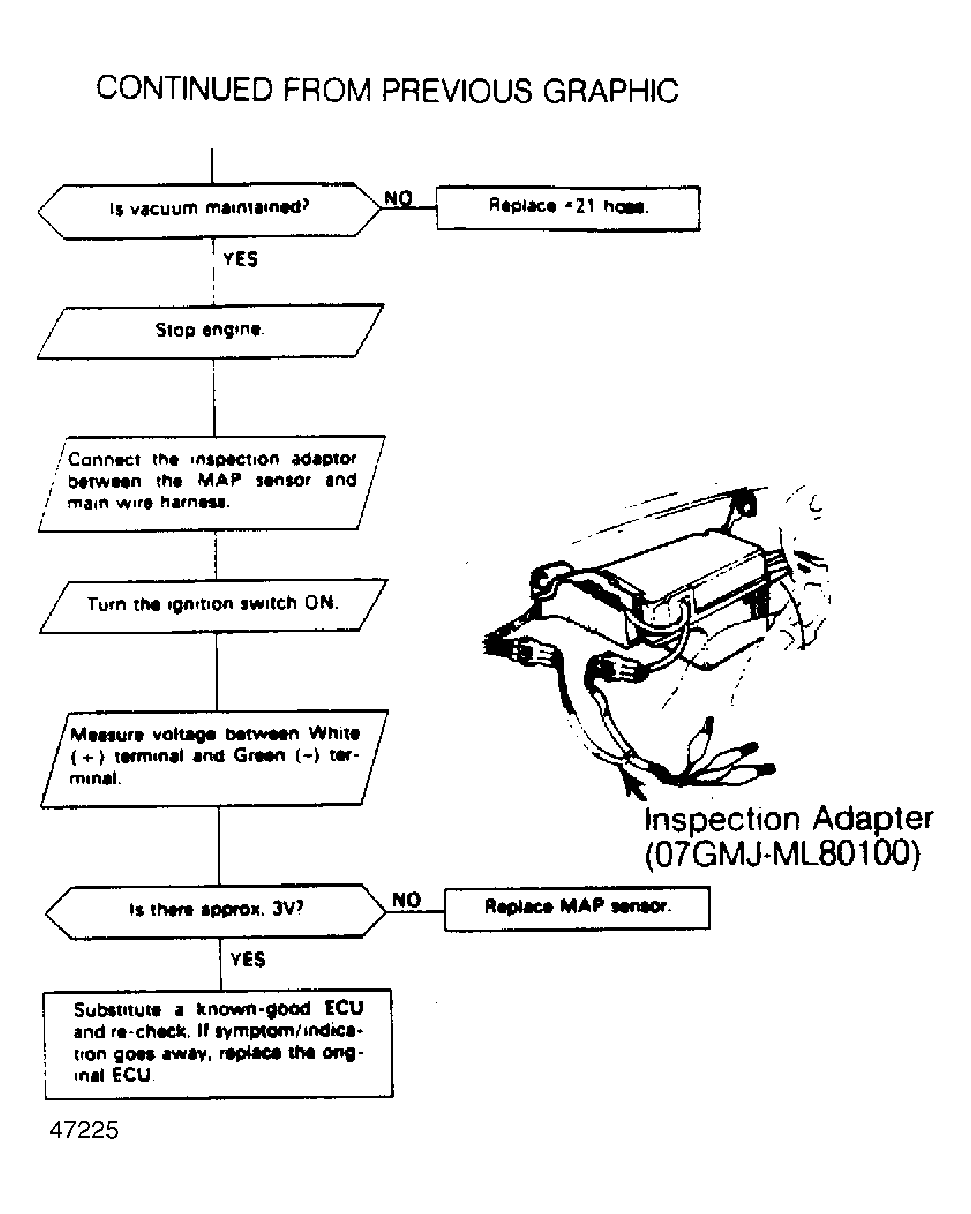

Fig 5: Code 5, MAP Sensor Test Chart, Integra (2 of 2)
G47225
