Throttle Cable

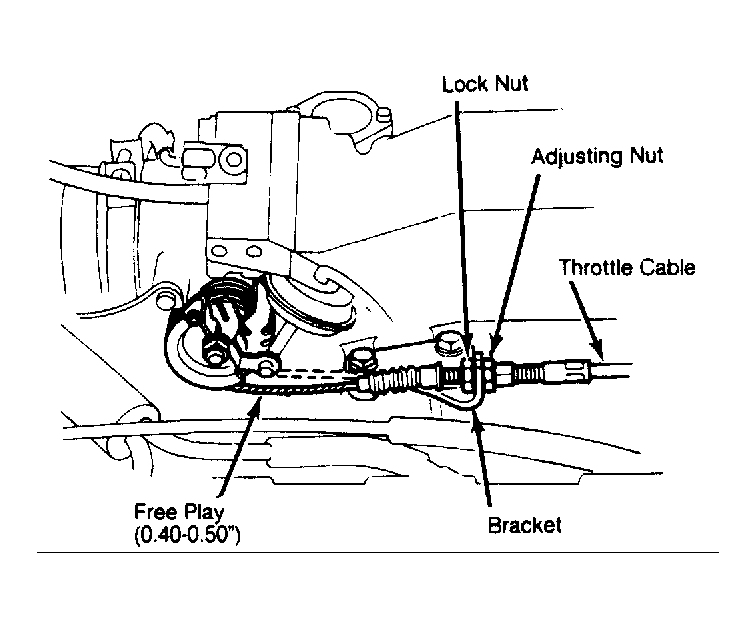

- Check that throttle cable operates properly with no binding or sticking. Check throttle cable free play at throttle linkage. Cable free play should be 0.40-0.50" (10-12 mm). If free play is not within specification, loosen lock nut and turn adjusting nut until free play is at specification. See Fig 1
.
- With cable properly adjusted, check throttle valve to ensure it opens fully when accelerator is depressed. Check throttle valve to ensure it returns when accelerator is released.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
