Control Unit Input Test: Integra

  1. Turn ignition off. Remove dashboard lower left cover. Remove left knee bolster. Cruise control unit is located near left kick panel. Disconnect cruise control unit 13-pin connector (1991) or 14-pin connector (1992).

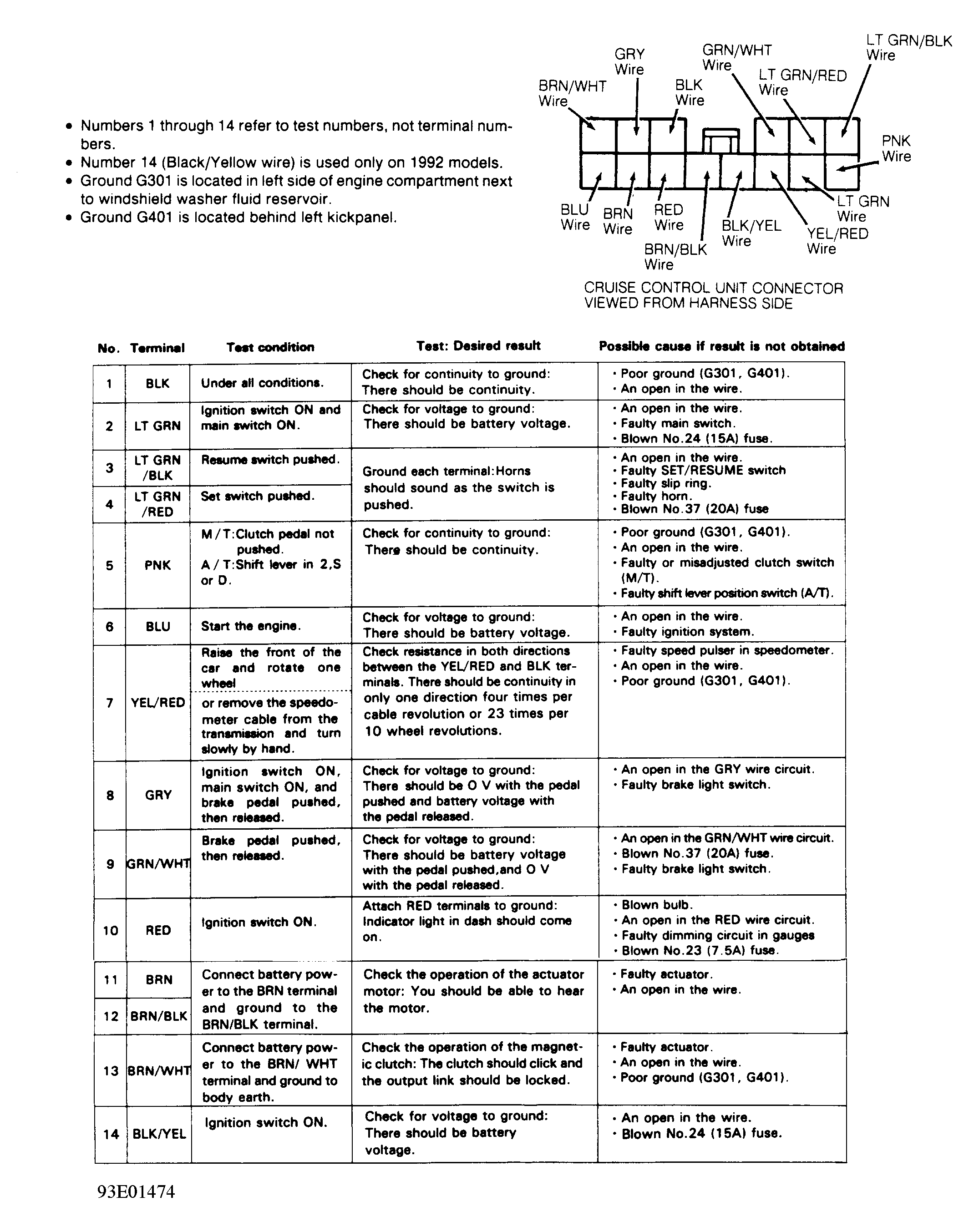

  2. Using a DVOM, perform cruise control unit input tests in Figure . If all input test results are okay, check cruise control unit connector for damage and proper fit to cruise control unit. If connector is okay and cruise control is still malfunctioning, replace cruise control unit.
