Control Unit Input Test: Legend

  1. Turn ignition off. Remove glove box. Cruise control unit is located near right kick panel. Disconnect cruise control unit 13-pin connector (1991) or 14-pin connector (1992).

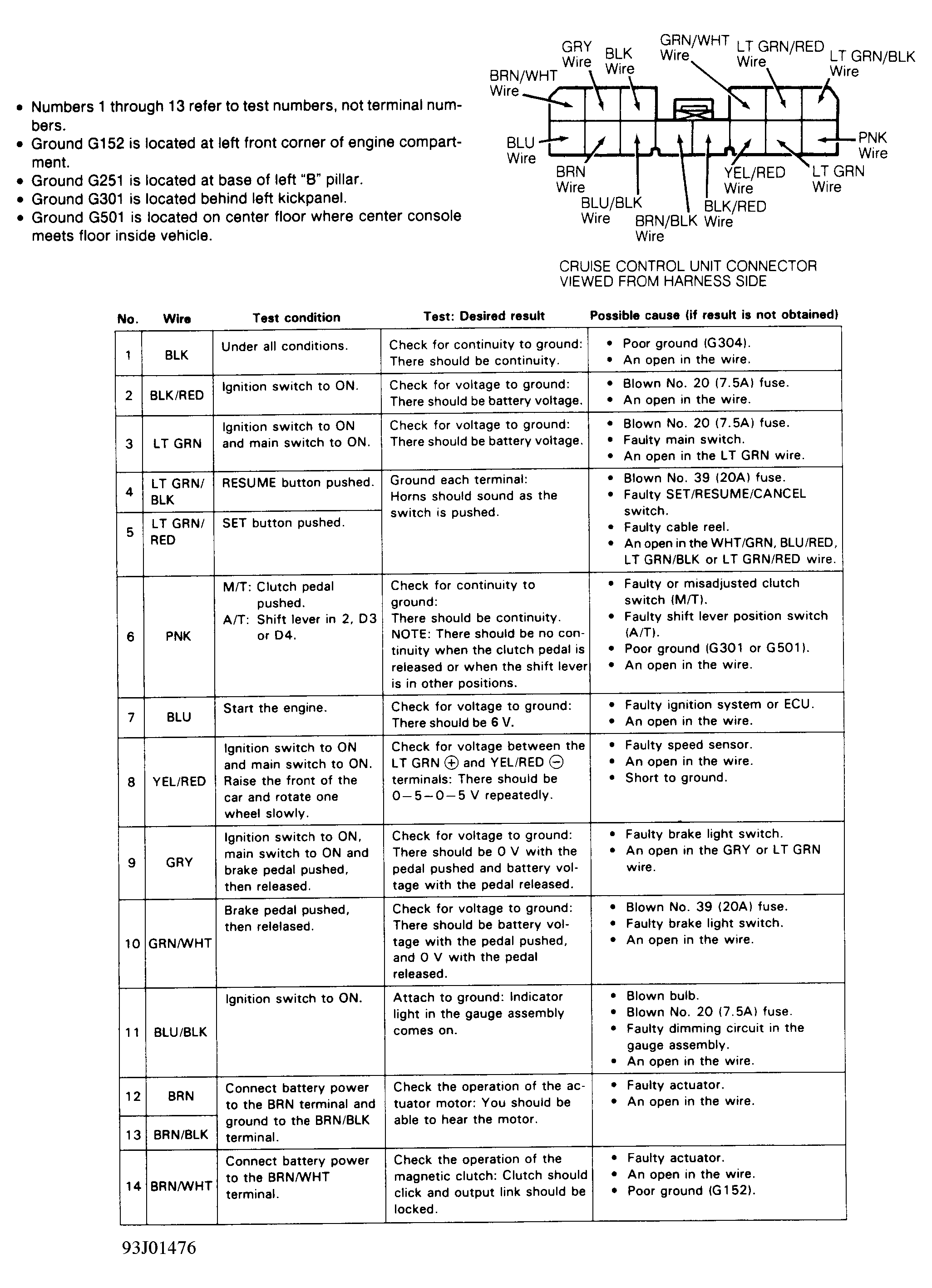

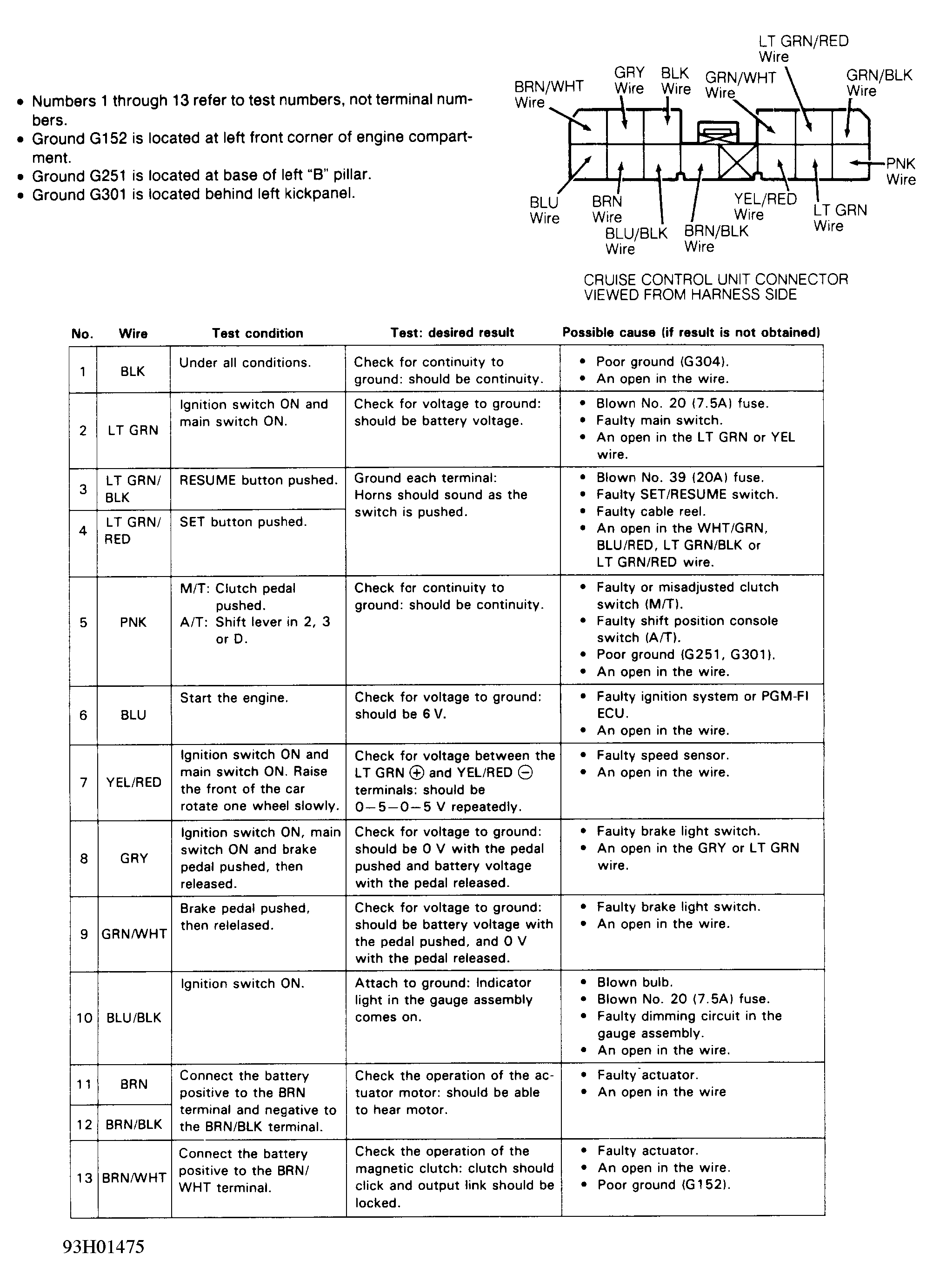

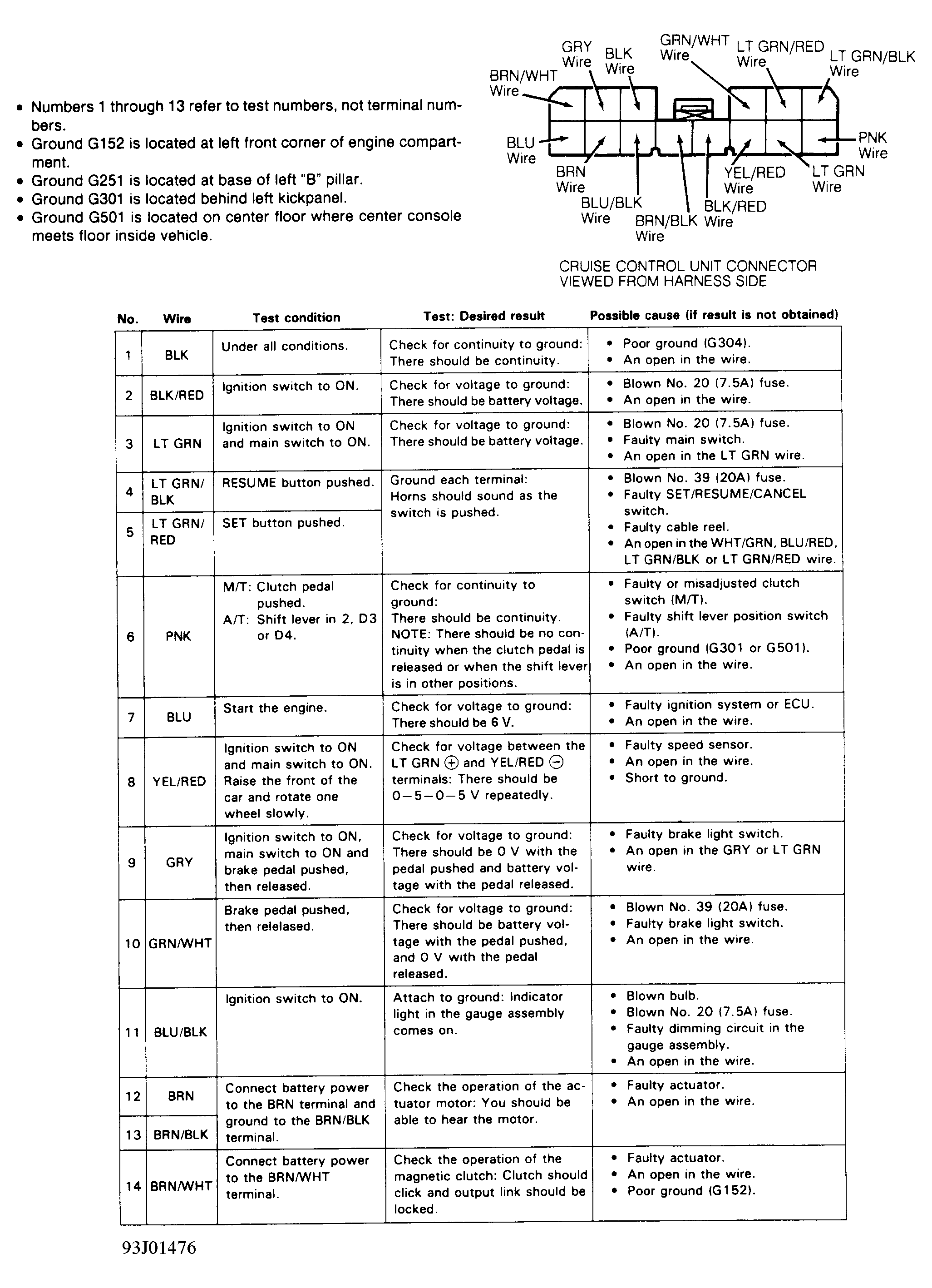

  2. Using a DVOM, perform cruise control unit input tests in Figure for 1991 models or Figure for 1992 models . If all input test results are okay, check cruise control unit connector for damage and proper fit to cruise control unit. If connector is okay and cruise control is still malfunctioning, replace cruise control unit.
