Control Unit Input Test: Vigor

  1. Turn ignition off. Cruise control unit is located under instrument panel above brake pedal bracket. Disconnect cruise control unit 13-pin connector.
  2. Using a DVOM, perform cruise control unit input tests in Fig 4 . If all input test results are okay, check cruise control unit connector for damage and proper fit to cruise control unit. If connector is okay and cruise control is still malfunctioning, replace cruise control unit.
Fig 1: Cruise Control Unit Input Test (Integra)
G93E01474Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 2: Cruise Control Unit Input Test (Legend 1991)
G93H01475Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 3: Cruise Control Unit Input Test (Legend 1992)
G93J01476Courtesy of AMERICAN HONDA MOTOR CO., INC.

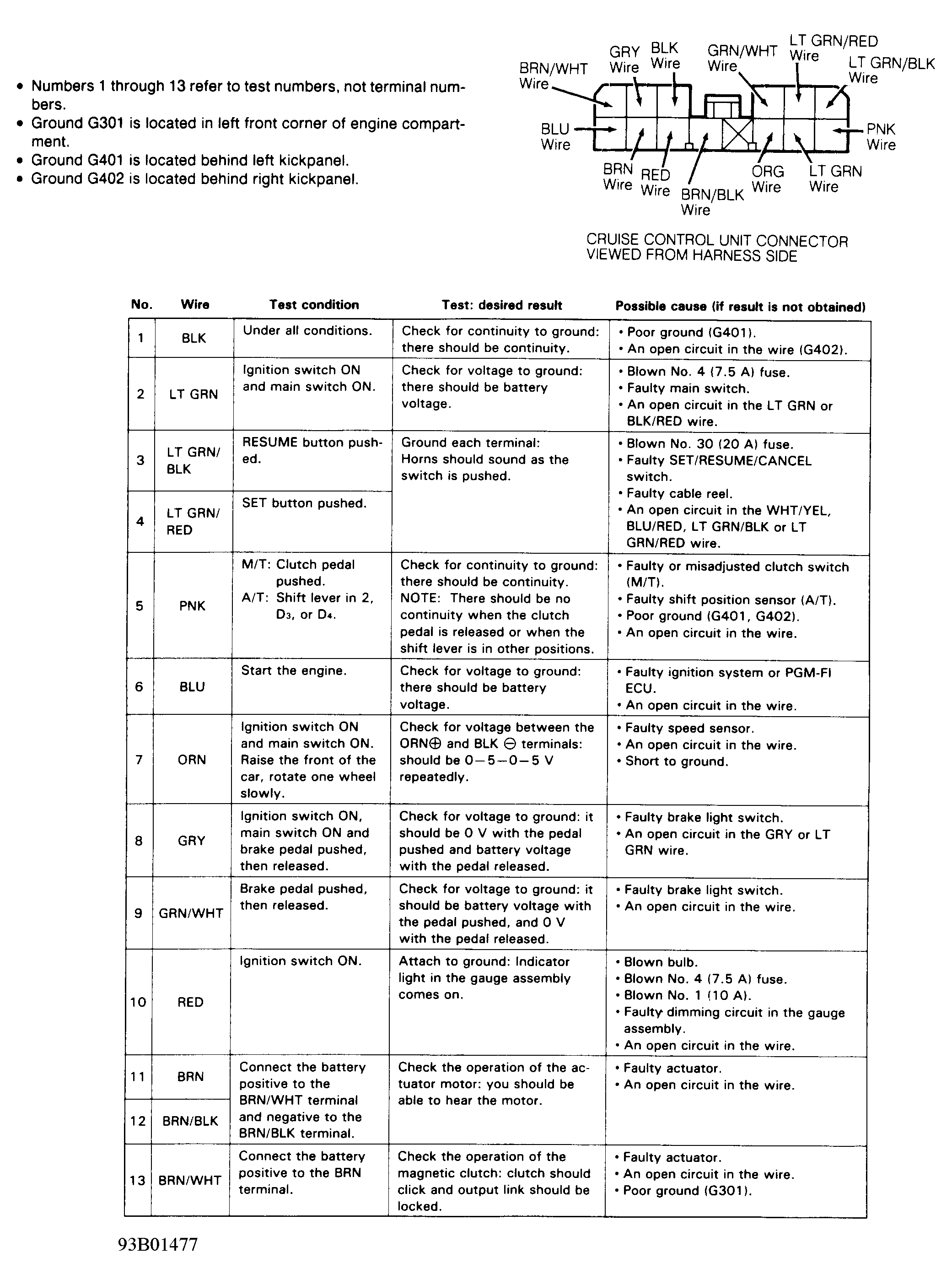

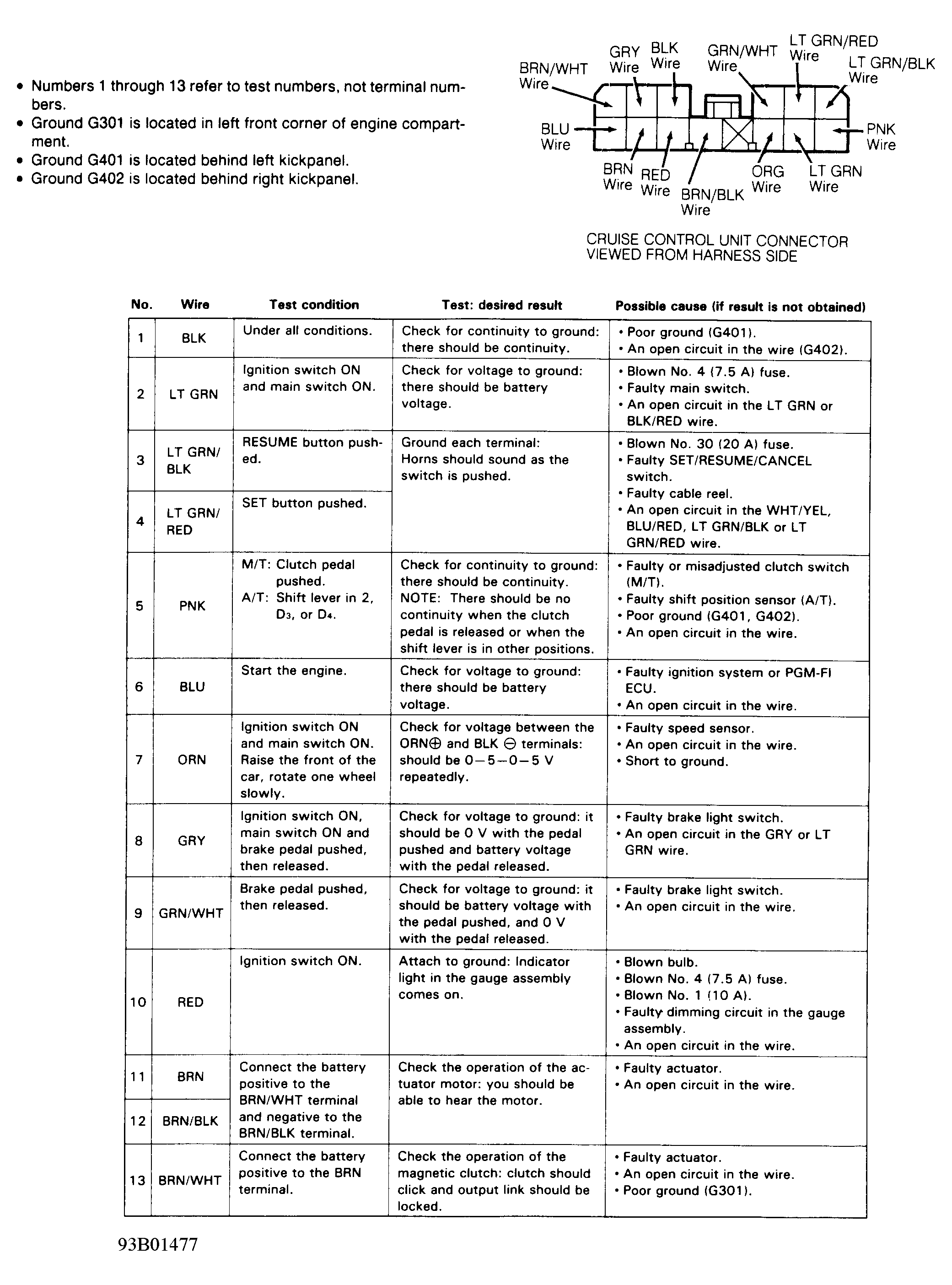

Fig 4: Cruise Control Unit Input Test (Vigor)
G93B01477Courtesy of AMERICAN HONDA MOTOR CO., INC.
