Defogger Switch Test

Remove switch from instrument panel. Check for continuity with switch in each position. See Fig 1 , Fig 2 or Fig 3 . If switch does not function as indicated, replace switch.

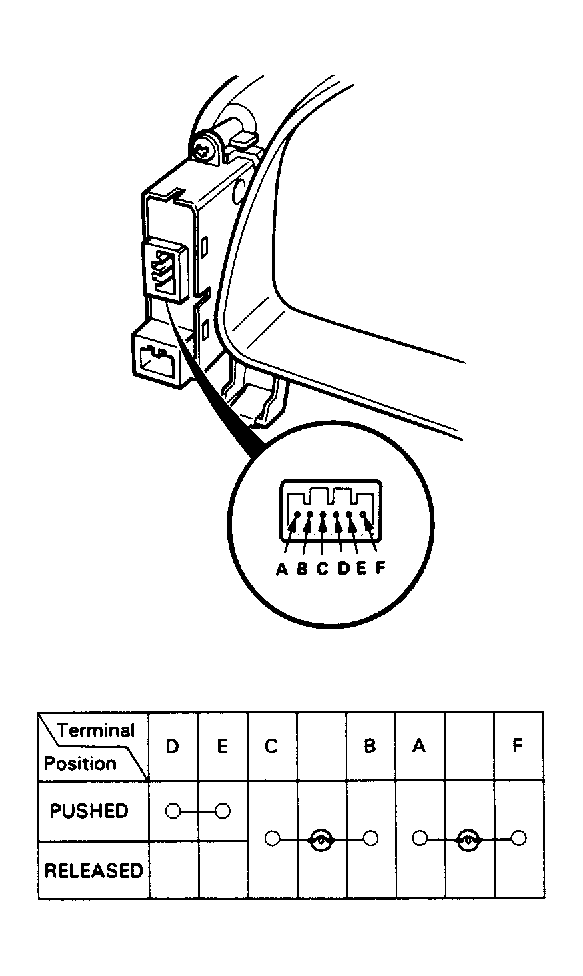

Fig 1: Testing Defogger Switch (Integra)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 2: Testing Defogger Switch (Legend)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 3: Testing Defogger Switch (Vigor)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
