Abs Function Test: Testing

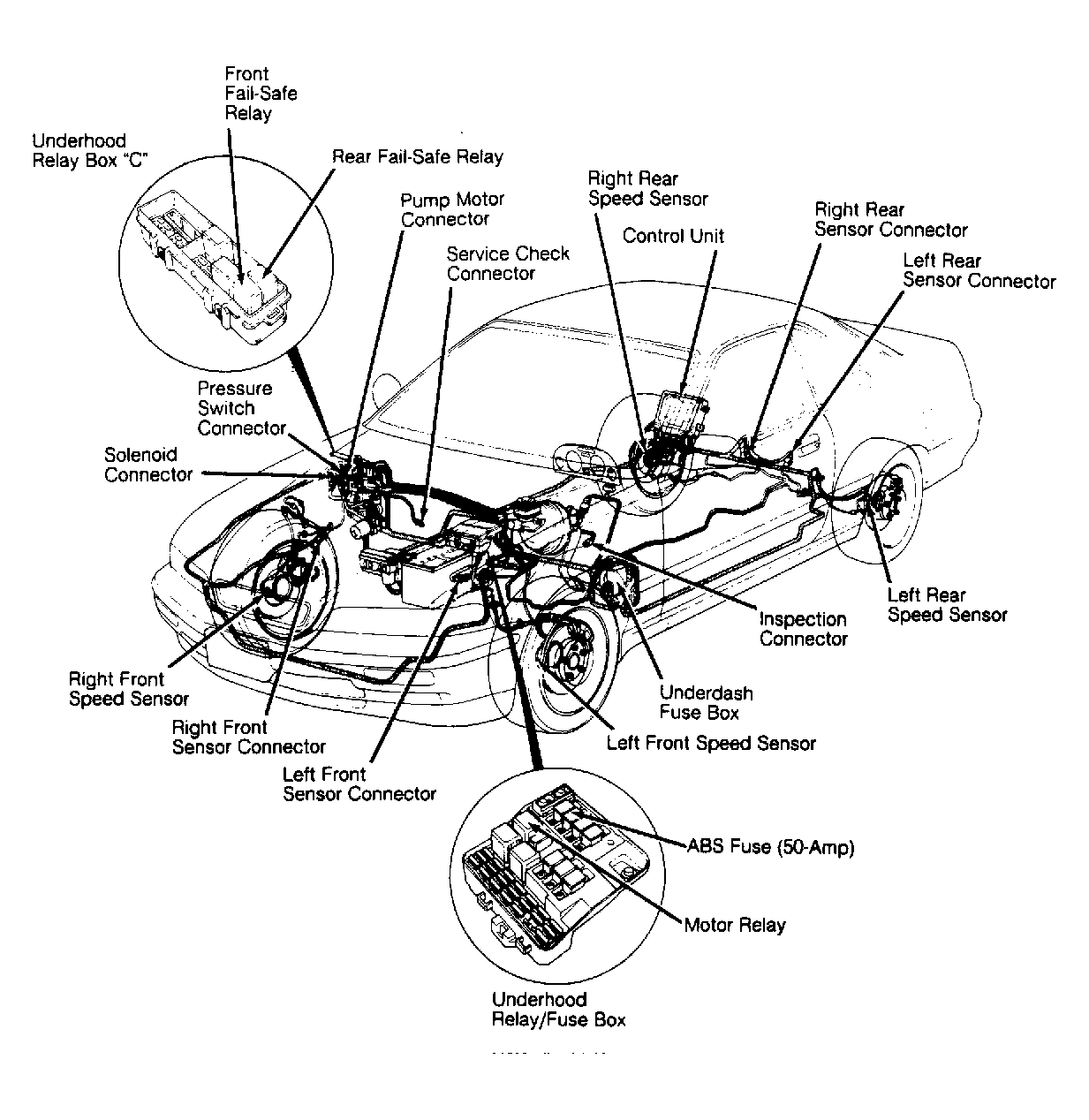

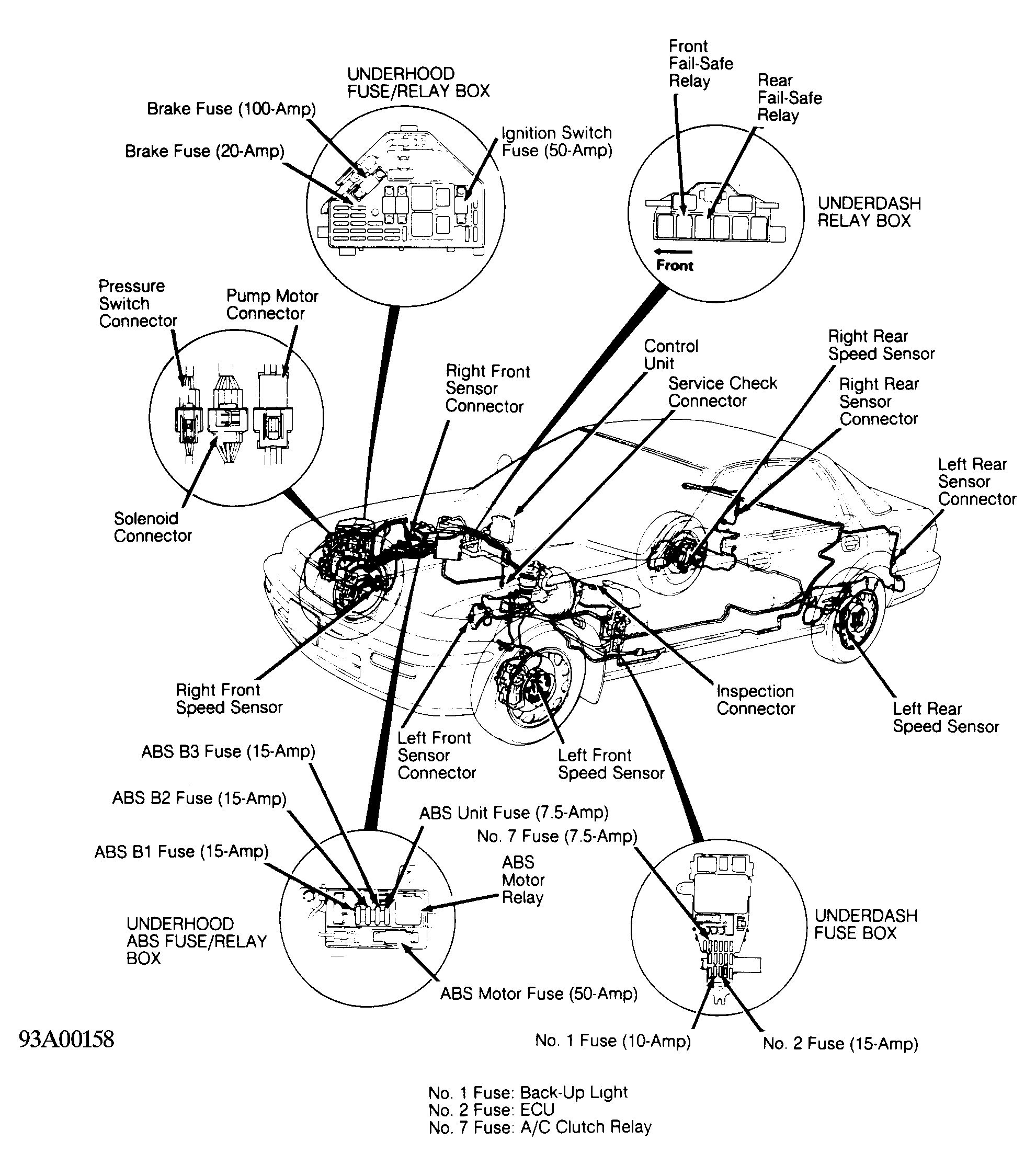

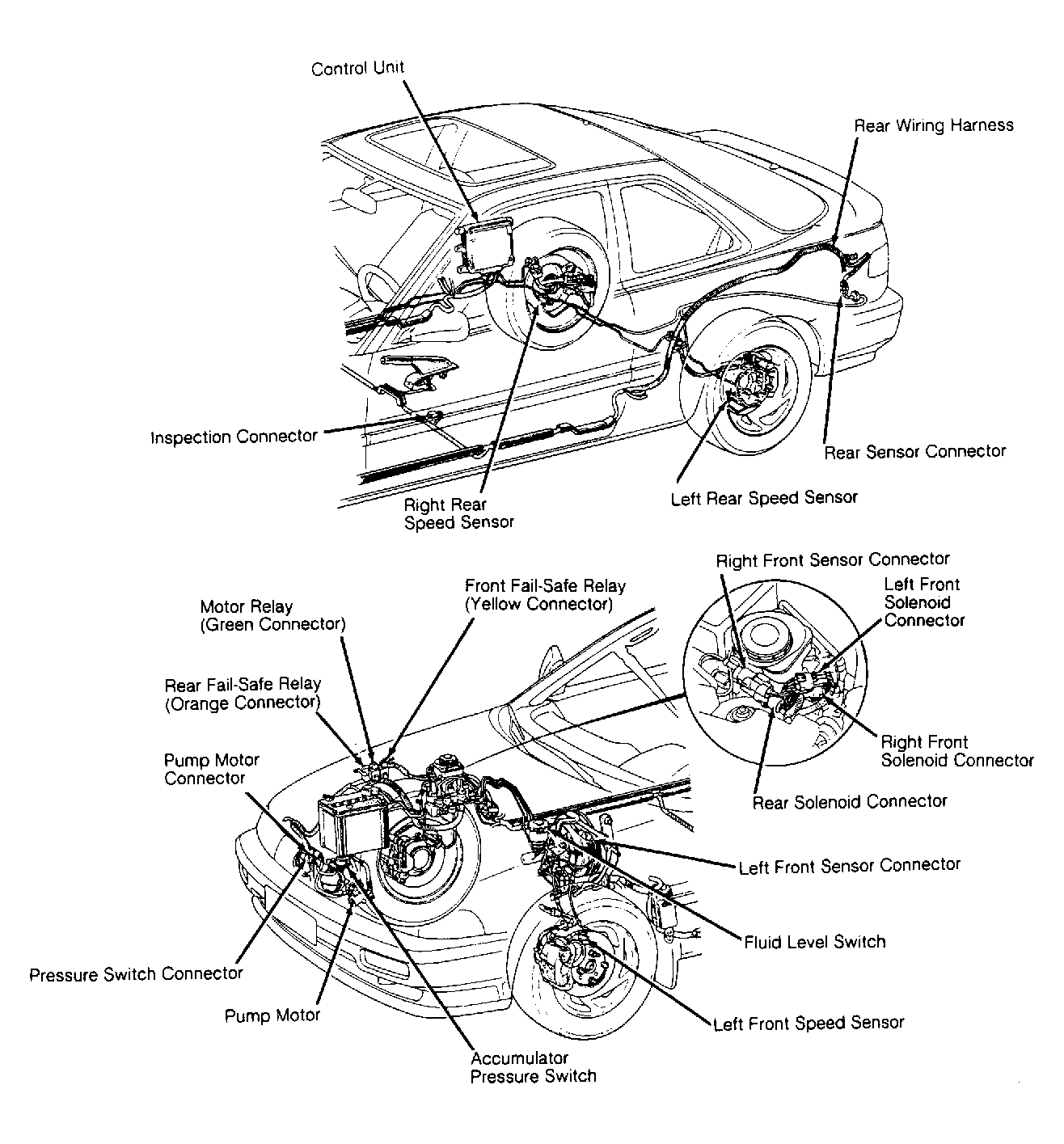

  1. Turn ignition switch to OFF position. Connect ABS Tester (07HAJ-SG00100) to 6-pin inspection connector. See Figure , Figure or Figure . Start engine. Release parking brake. Place mode selector to "1" position. Push START TEST button. TEST-IN-PROGRESS light should come on. Within 1-2 seconds, 4 monitor lights should come on. If tester lights do not come on, ABS tester is faulty.
  2. If ANTI-LOCK light comes on, ABS tester harness is faulty. Turn mode selector to "2" position. Depress brake pedal. Push START TEST button. ANTI-LOCK warning light should not come on and kickback should be felt in brake pedal.
  3. If light comes on or kickback is not felt, see ANTI-LOCK WARNING LIGHT STAYS ON  under ANTI-LOCK WARNING LIGHT under TROUBLE SHOOTING. Place mode selector in "3", "4" and "5" positions. Repeat step 2) for each test mode. Results should be as in test mode "2". If results differ, see ANTI-LOCK WARNING LIGHT STAYS ON  . Breakdown of modes is as follows:
