RS Model

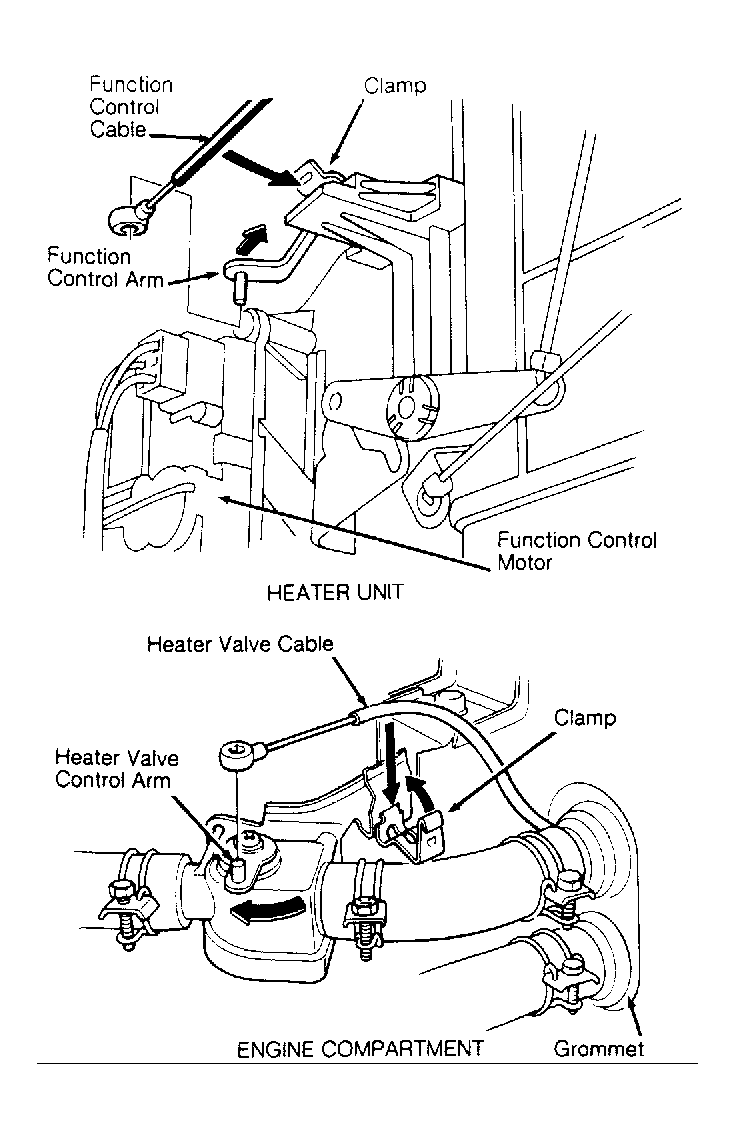

Slide function control lever to defrost position. Turn function control arm to front. Connect cable end to function control arm. See Figure. At heater assembly, slide cable housing back gently to eliminate slack, but not enough to move function control lever. Snap cable housing into clamp
