GS & LS Models

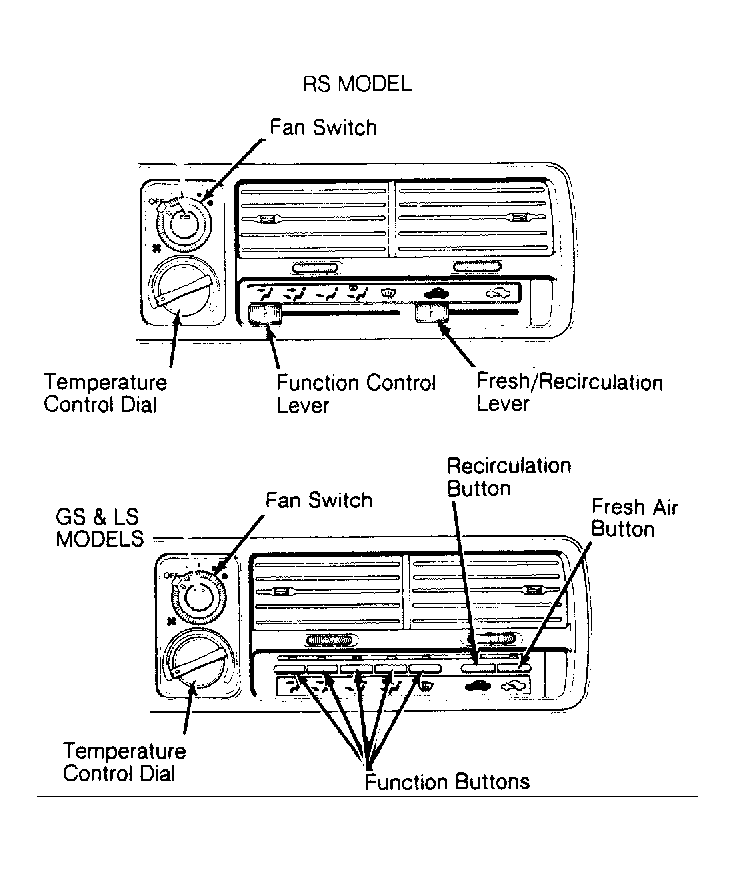

The function control buttons send an electrical signal to the function control motor. See Figure. The function control motor positions heater mode door to direct air to selected outlets. The 5 heater function control buttons are FACE, BI-LEVEL, FLOOR, FLOOR/DEFROST, and DEFROST.
