Function Control Motor

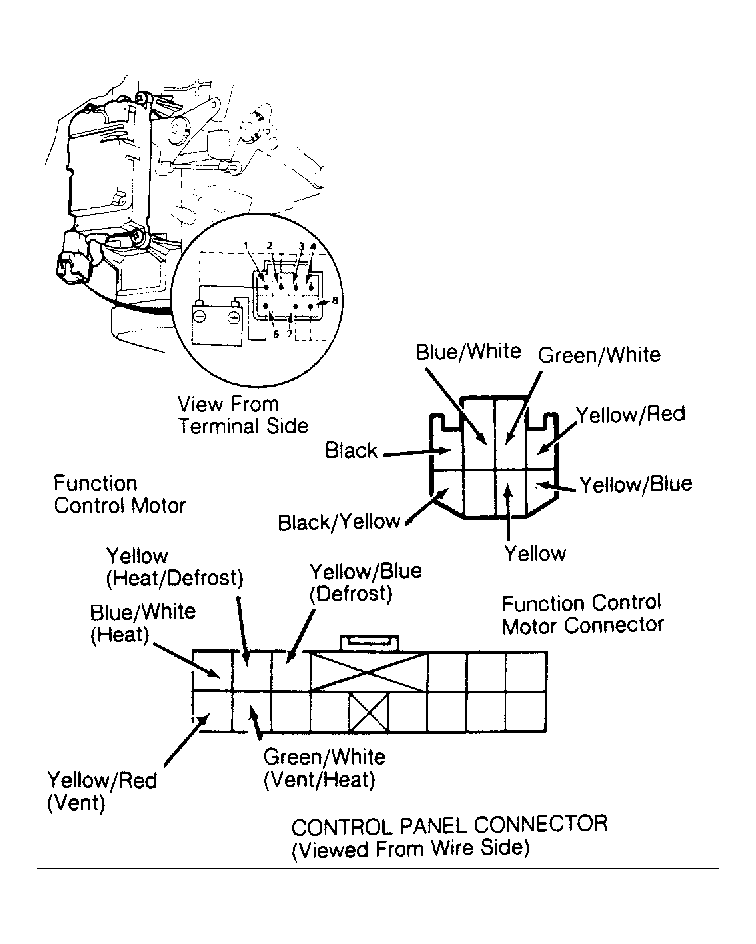

Unplug connector from function control motor. Connect battery voltage to terminal No. 5 of motor. Ground motor terminal No. 1. See Figure. Using jumper wire, connect terminal No. 1 in turn to terminals No. 2, 3, 4, 7, and 8. Motor should run each time connection is made. If motor does not perform as specified, replace function control motor.
