Steering Column

NOTE: For exploded view of steering column, see Fig 1, Fig 2 or Fig 3.

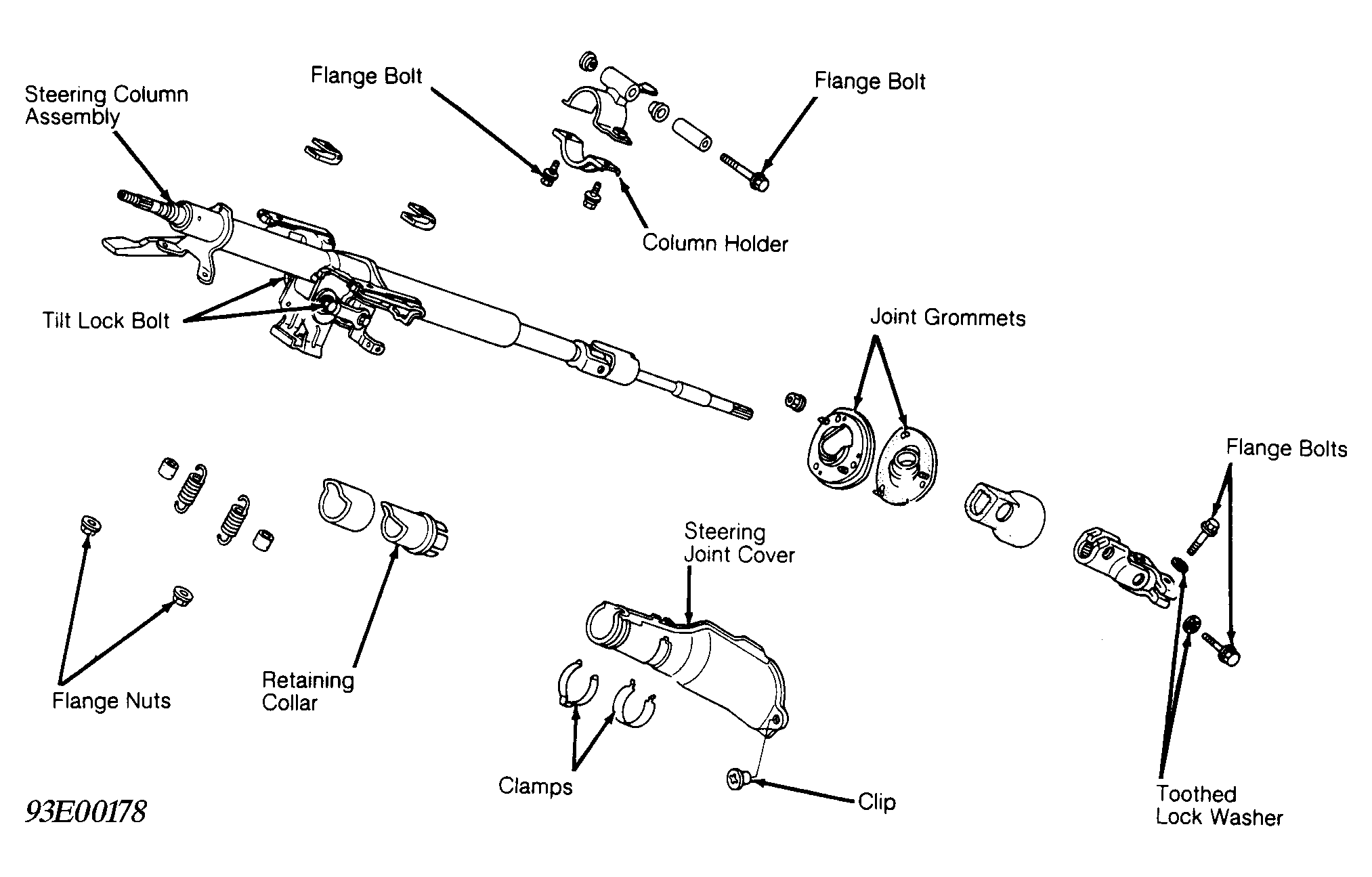

Fig 1: Exploded View of Steering Column Assembly (Integra)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

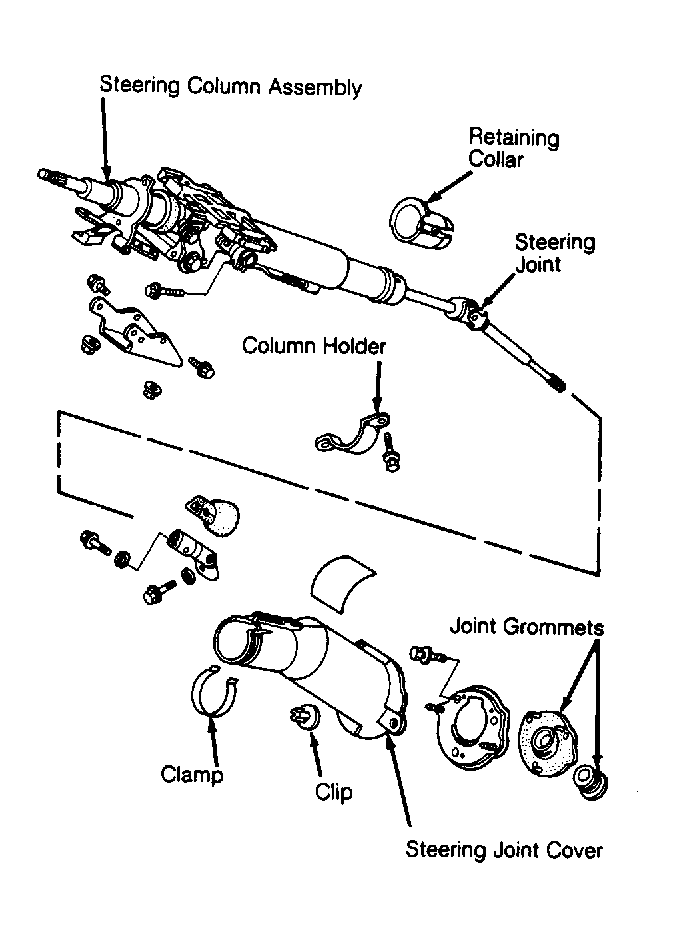

Fig 2: Exploded View of Steering Column Assembly (Legend)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 3: Exploded View of Steering Column Assembly (Vigor)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
