Both Mirrors Inoperative
- Check fuse No. 17 in underdash fuse panel. Replace as necessary. Remove power mirror switch. See POWER MIRROR SWITCH under REMOVAL & INSTALLATION.

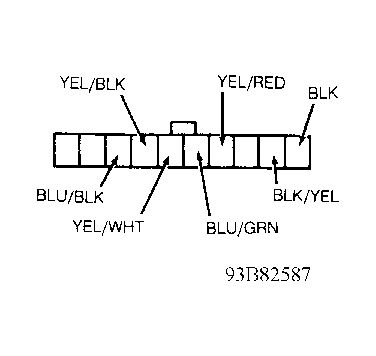

- Turn ignition on. Check for voltage between Black/Yellow wire and ground. See Fig 1
. If battery voltage exists, go to next step. If battery voltage does not exist, repair open Black/Yellow wire between mirror switch and fuse box.
- Check for continuity between Black wire and ground. If continuity does not exist, repair open circuit in Black wire or poor ground connection. If wiring is okay, substitute known good switch and retest.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
