Power Mirror Motor Test

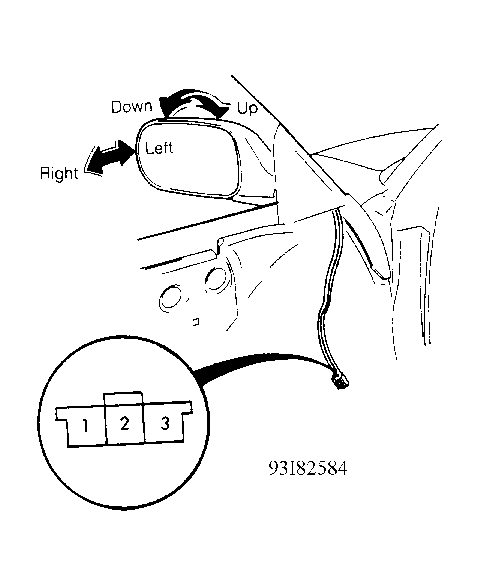

Remove door panel. Unplug connector. Using fused jumper wires, connect specified motor terminals to battery voltage and ground. See Fig 1 . Replace motor assembly if operation is not as specified. See POWER MIRROR MOTOR TEST table.
POWER MIRROR MOTOR TEST
| Apply 12 Volts To Pin | Ground Pin | Mirror Operation |
|---|---|---|
| 1 | 2 | Up |
| 2 | 1 | Down |
| 2 | 3 | Left |
| 3 | 2 | Right |
