Brake Booster Push Rod

Brake booster push rod length should be 4.58-4.62" (115.5-116.5 mm) on Integra and 4.78-4.82" (121.5-122.5 mm) on Vigor. See Fig 1 . On Legend, booster push rod length is governed by pedal height adjustment. See PEDAL PLAY & HEIGHT  .

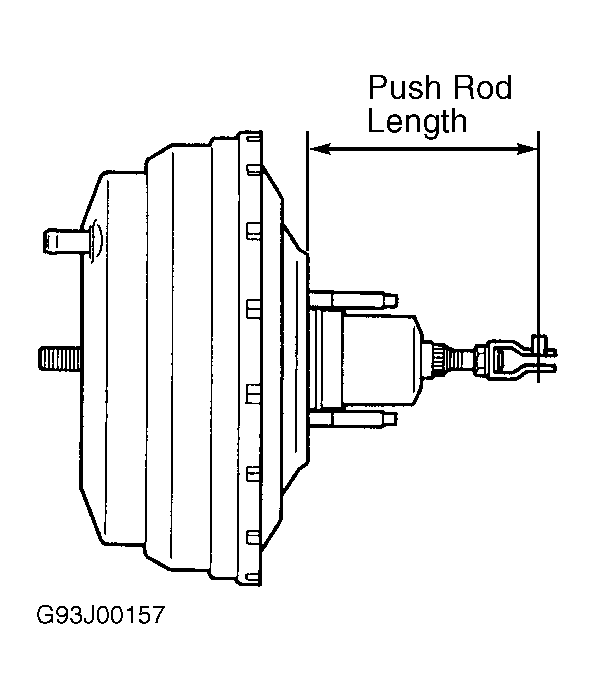

Fig 1: Checking Booster Push Rod Length (Integra & Vigor)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
