Integra & Vigor

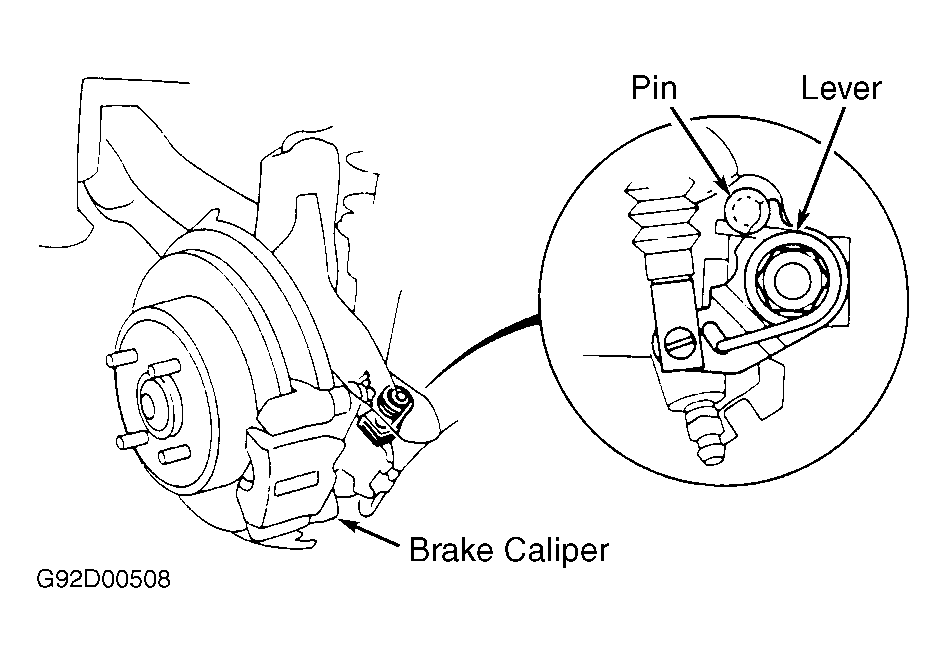

- Raise and support rear of vehicle. Ensure rear brake caliper lever contacts brake caliper pin. See Fig 1 . Pull parking brake lever up one notch.
- Remove end panel from rear of parking brake lever cover. Tighten equalizer nut until rear wheels drag slightly when turned. Release brake lever. Rear wheels should rotate freely. Rear wheels should lock when lever is pulled up 6-10 clicks.
