Relay Test: Integra

Remove relay to be tested. See Figure . Using an ohmmeter, check for continuity between relay terminals No. 3 and 4. See Fig 1 . Continuity should not exist. Apply battery voltage between terminals No. 1 and 2. Continuity should exist between terminals No. 3 and 4. If relay fails any of these tests, replace relay.

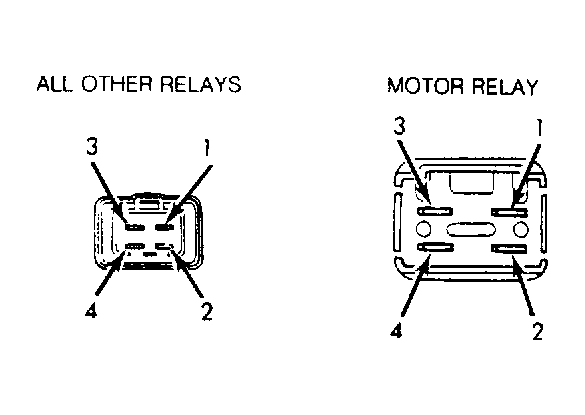

Fig 1: Identifying Relay Connector Terminals (Integra)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
