Retrieving Codes: Integra
- Turn engine off. Turn ignition on. Ensure ANTI-LOCK warning light comes on. Start engine and check ANTI-LOCK warning light. If warning light goes out, no fault codes exist.

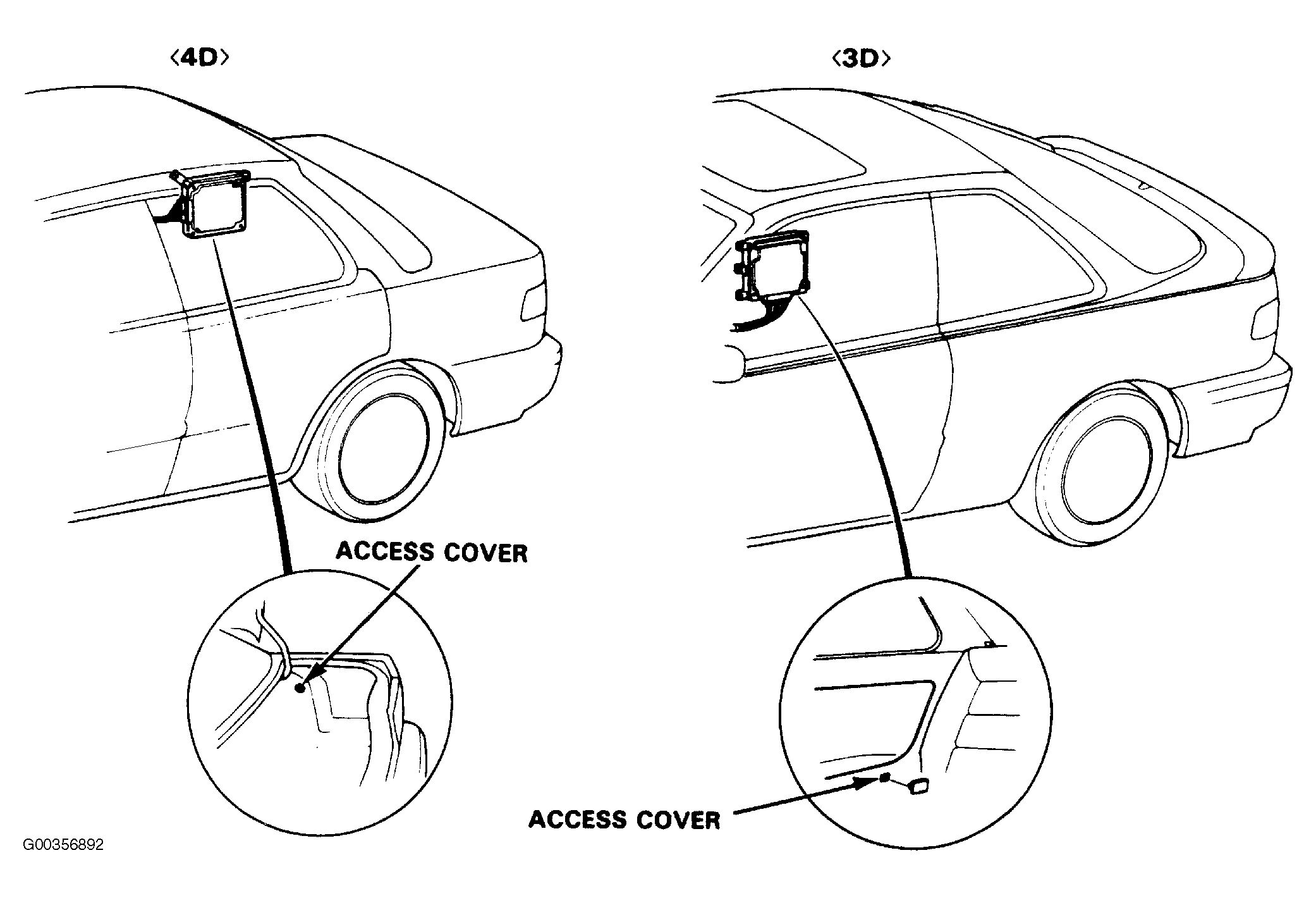

- If light remains on, turn engine off. Remove the anti-lock control unit access cover. See Fig 1
.
- Turn ignition on, but DO NOT start engine. Record flashing frequency of control unit LED light.

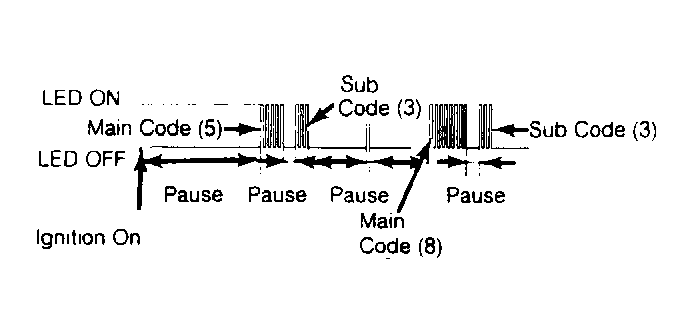

- First flashing sequence indicates main code of DTC, and second number indicates sub code of DTC. See Fig 2
. A one-second pause separates main and sub codes. Total of 3 DTC's can be set at one time. There is a 5-second pause between DTC's.
- To recheck DTC sequence, turn ignition off for a few seconds and then turn it back on. After codes are retrieved, go to appropriate test under TROUBLE CODES
to diagnose system.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
