Legend & Vigor
- Turn engine off. Turn ignition on. Ensure ANTI-LOCK warning light comes on. Start engine and check ANTI-LOCK warning light. If warning light goes out, no fault codes exist.

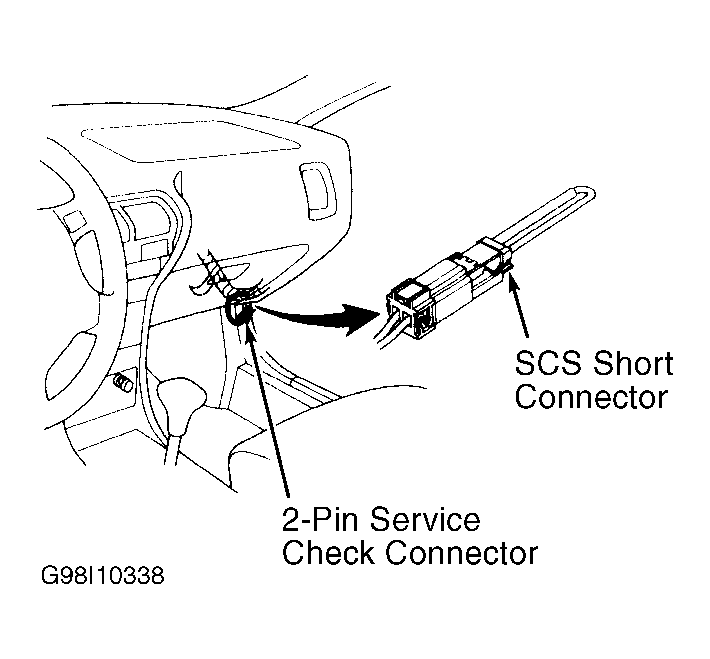

- If light remains on, turn engine off. Disconnect service check connector from connector cover located under glove box. See Fig 1 . Connect jumper wire between the two service check connector terminals.
- Turn ignition on, but DO NOT start engine. Record flashing frequency of ANTI-LOCK warning light.
- First flashing sequence indicates main code of DTC, and second number indicates sub code of DTC. See Figure . A one-second pause separates main and sub codes. Total of 3 DTC's can be set at one time. There is a 5-second pause between DTC's.
- To recheck DTC sequence, turn ignition off for a few seconds and then turn it back on. After codes are retrieved, go to appropriate test under TROUBLE CODES to diagnose system.
