Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location
Fuse/Relay Block

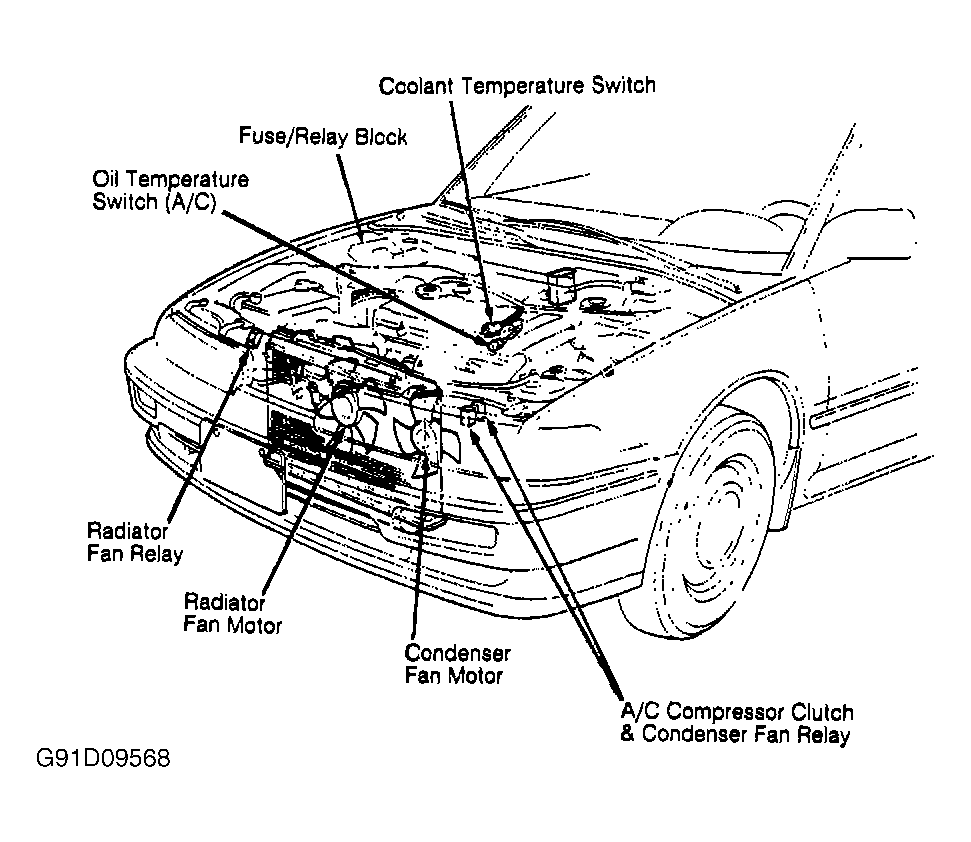

Engine Compartment On right side of engine compartment, behind strut tower. See Figure .

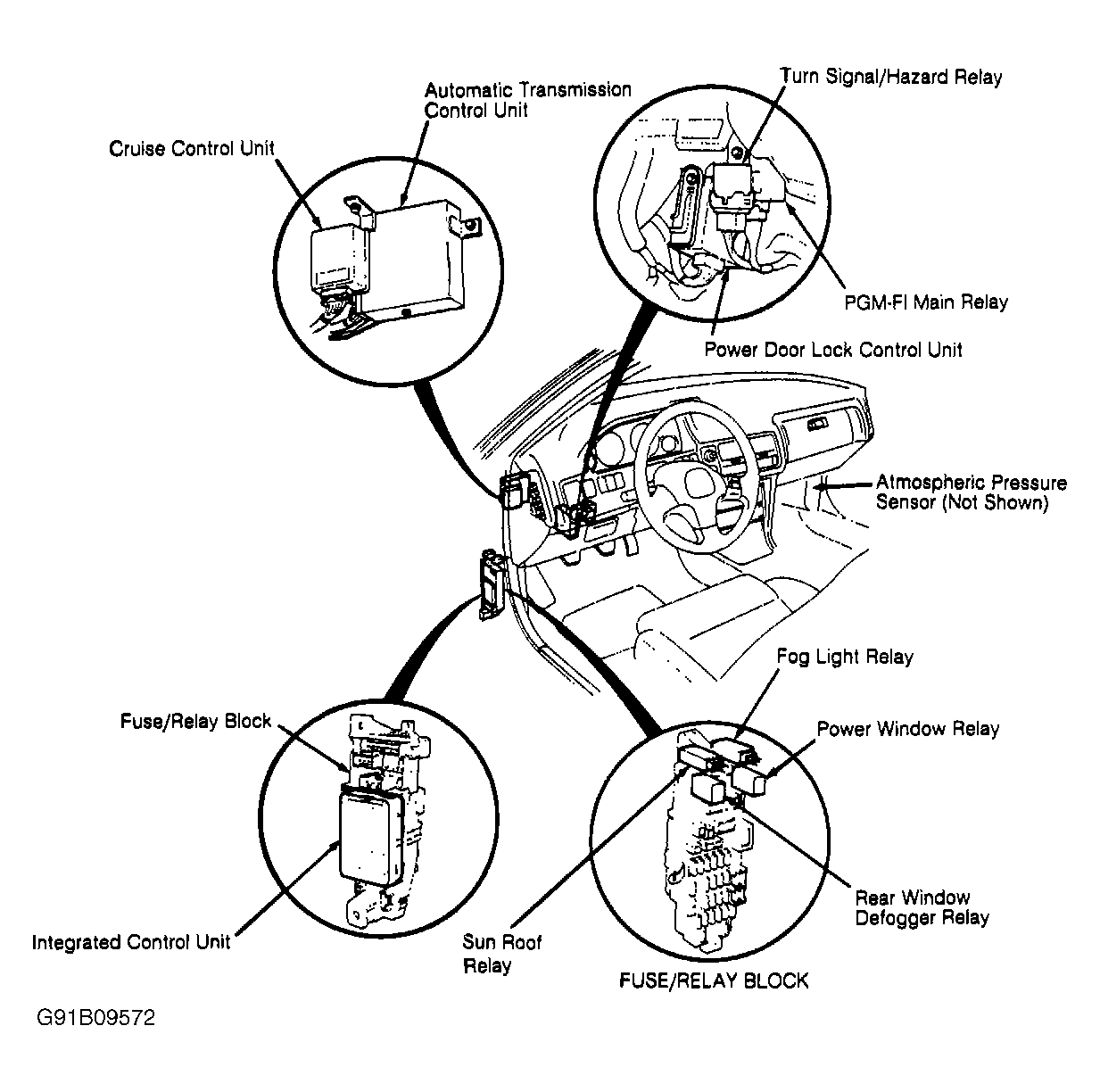

Passenger Compartment Behind left kick panel. See Figure .
