MISCELLANEOUS LOCATION
| Component | Location | |
|---|---|---|

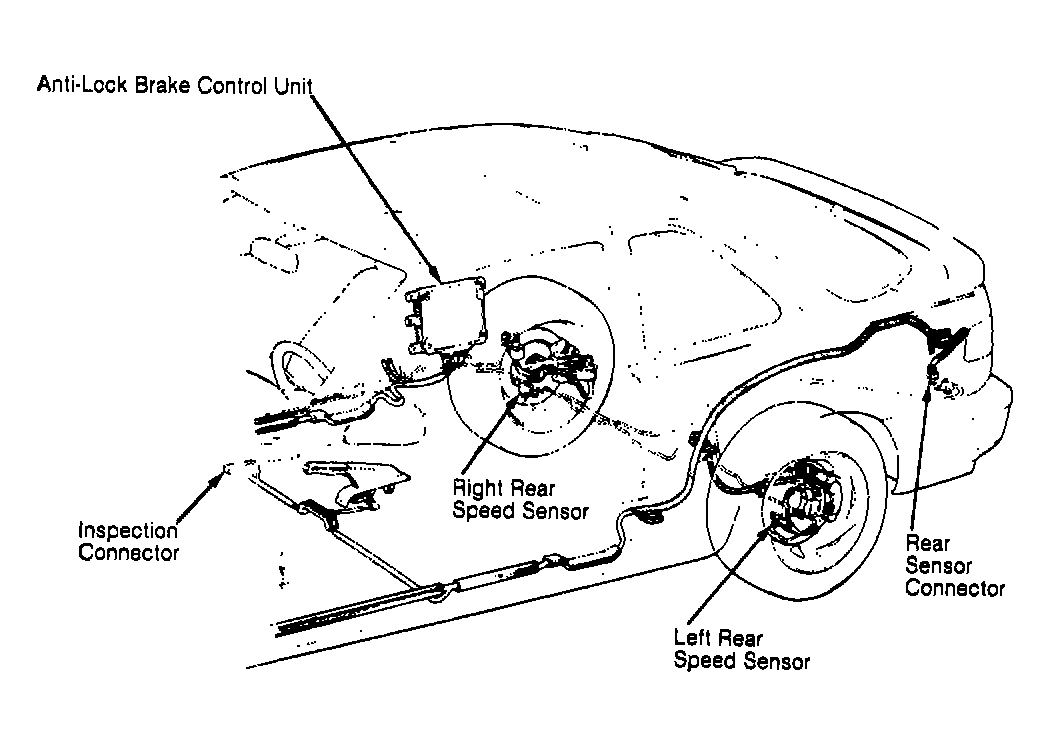

| ABS Inspection Connector | Under passenger seat. See Figure . | |
| Air Boost Valve (A/T) | Rear of intake manifold. See Figure . | |
| A/C Diode | Below right side of dash, below evaporator housing. | |
| A/C Thermostat | Behind center console, on left side of evaporator. | |
| Blower Motor Resistor | Behind glove box, on top of blower motor housing. | |
| Chime Module | Behind center of dash. | |

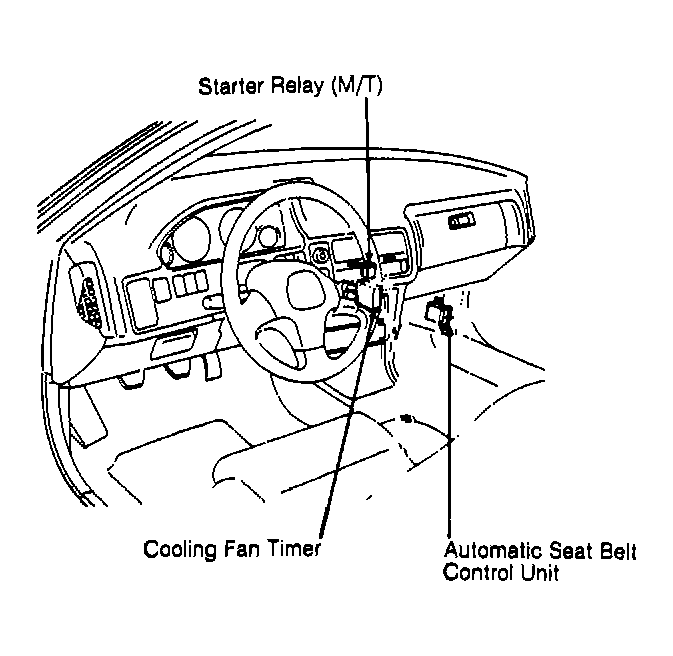

| Cooling Fan Timer | Behind center of dash, on right side of heater assembly. See Figure . | |
| Cruise Control Actuator | On left side of engine compartment, in front of strut tower. | |
| Diagnostic Connectors | Behind right kick panel. | |

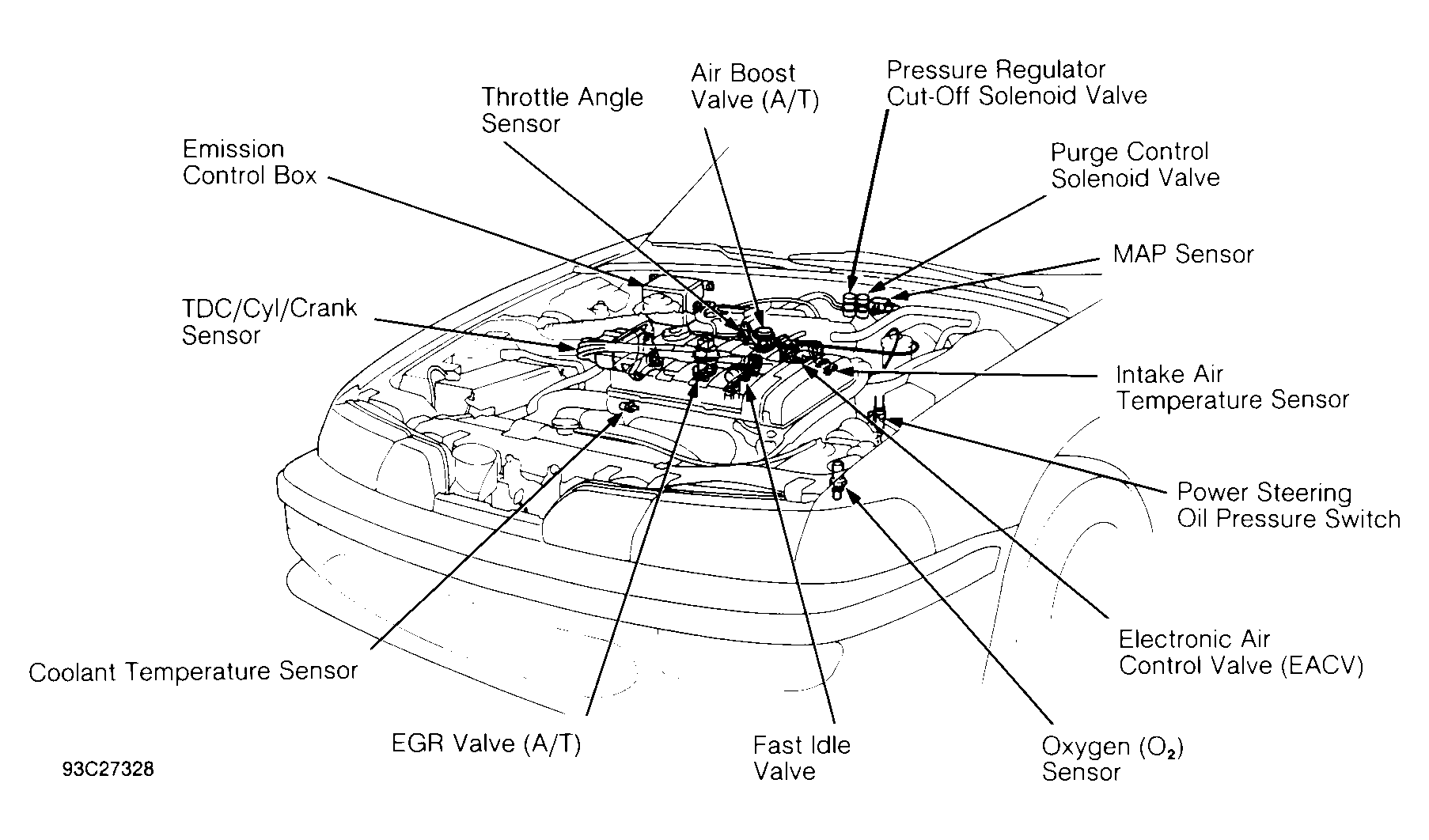

| Emission Control Box | On right side of firewall (includes EGR & fast idle solenoids). See Figure . | |
| Fuel Injector Resistor | In left rear corner of engine compartment. | |
| Fuse/Relay Block | ||
| Engine Compartment | On right side of engine compartment, behind strut tower. See Figure . | |
| Passenger Compartment | Behind left kick panel. See Figure . | |
