Electrical Component Locator: Motors

MOTORS LOCATION

Component Location

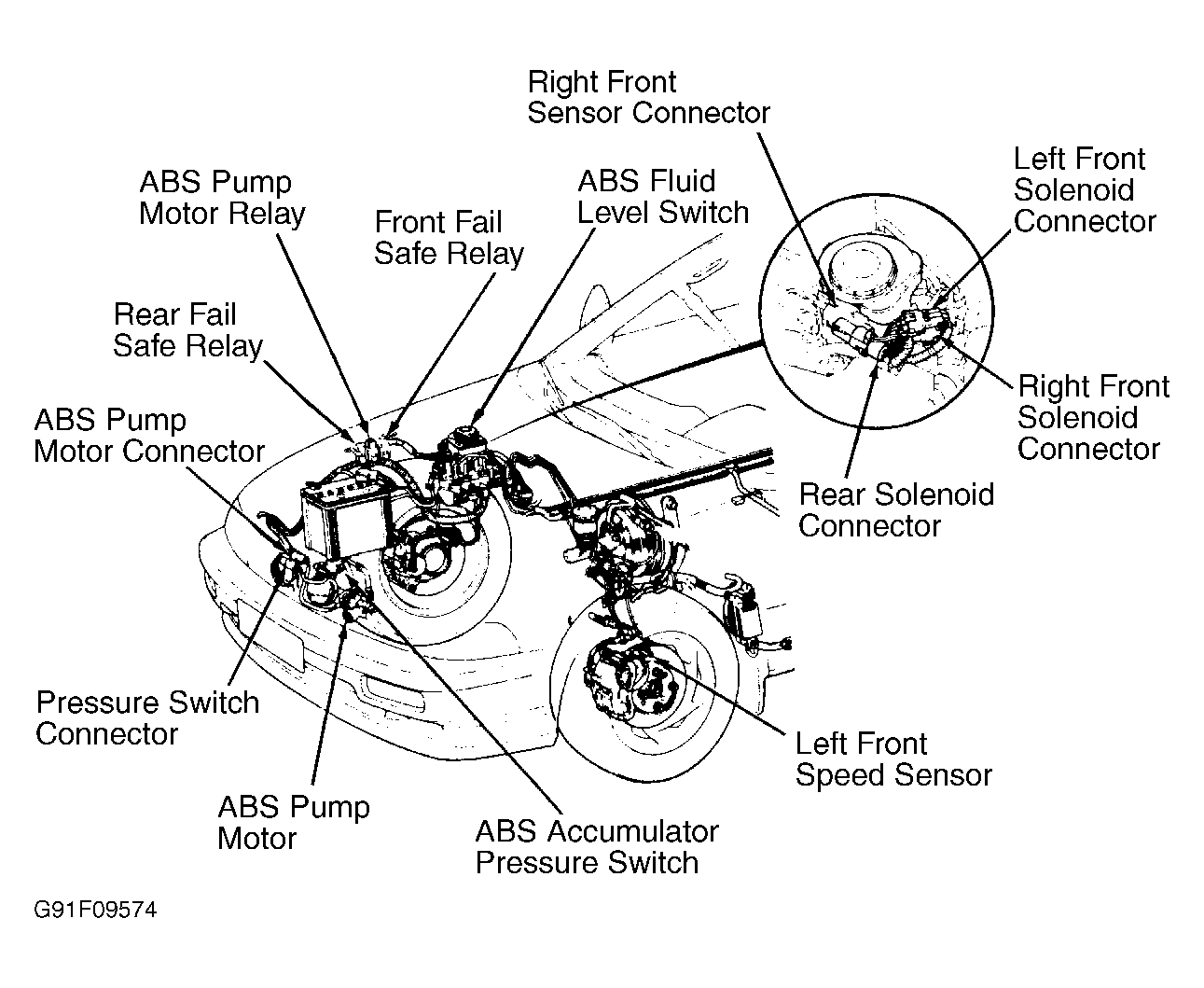

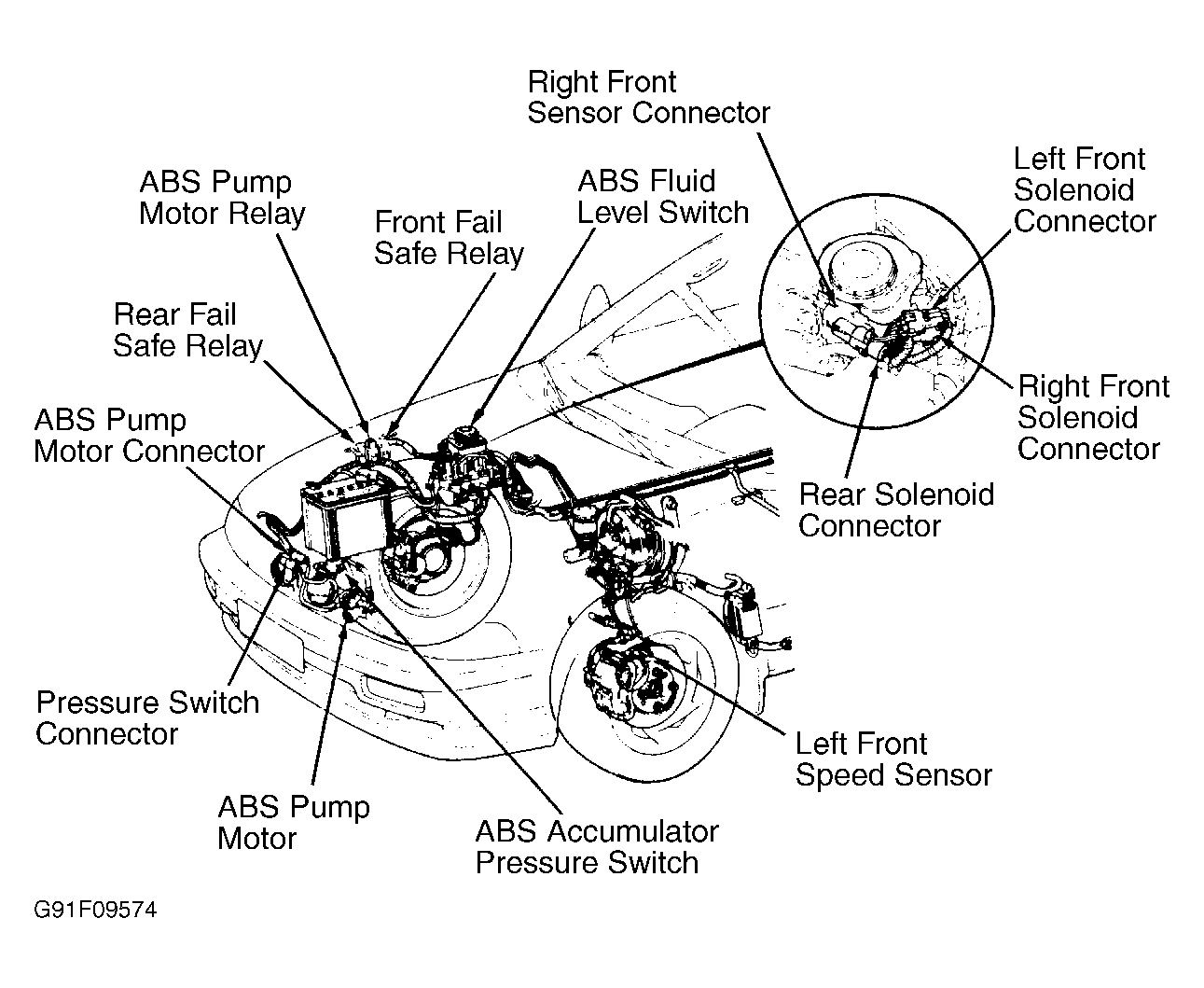

ABS Pump Motor Below battery. See Figure .
A/C-Heater Blower Motor Behind glove box, on bottom of blower motor housing.
Condenser Fan Motor Behind left side of radiator, at front of engine compartment. See Figure .
Function Control Motor Behind left side of dash, on left side of heater assembly.
Power Antenna Motor In luggage compartment, behind left trim panel.
Radiator Fan Motor Behind right side of radiator, at front of engine compartment. See Figure .
Rear Window Washer Pump Under washer reservoir, behind left side of front bumper.
Rear Window Wiper Motor On right side of liftgate, behind trim panel.
Recirculation Control Motor Behind glove box, on rear left side of blower housing.
Sun Roof Motor Upper rear center headliner, above rear window.
Windshield Washer Pump Under washer reservoir, behind left side of front bumper.
Windshield Wiper Motor On firewall, at rear right corner of engine compartment.
