Hazard Warning Switch

Check for continuity between specified switch terminals with switch in ON and OFF positions. See Fig 1 , Fig 2 or Fig 3 .

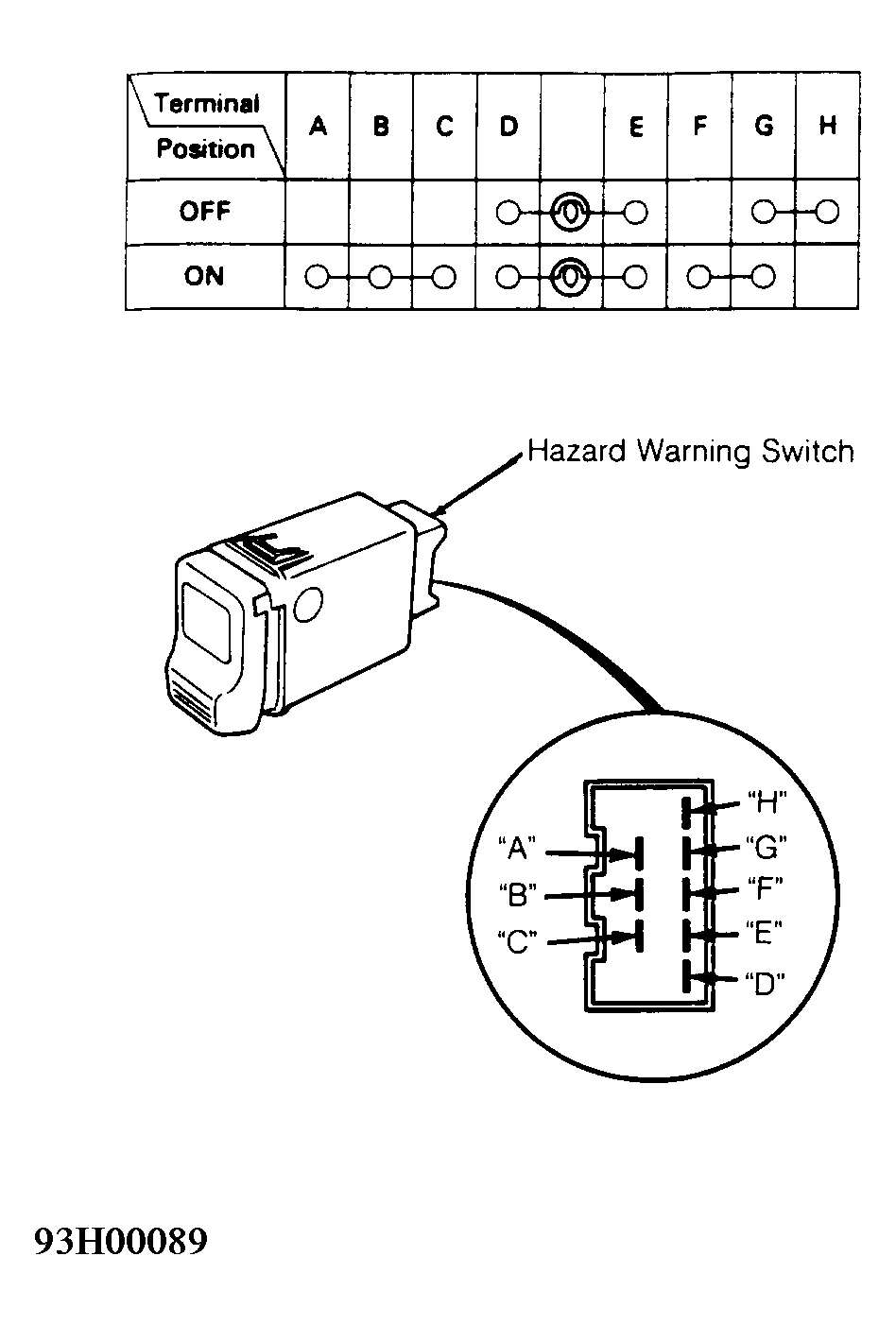

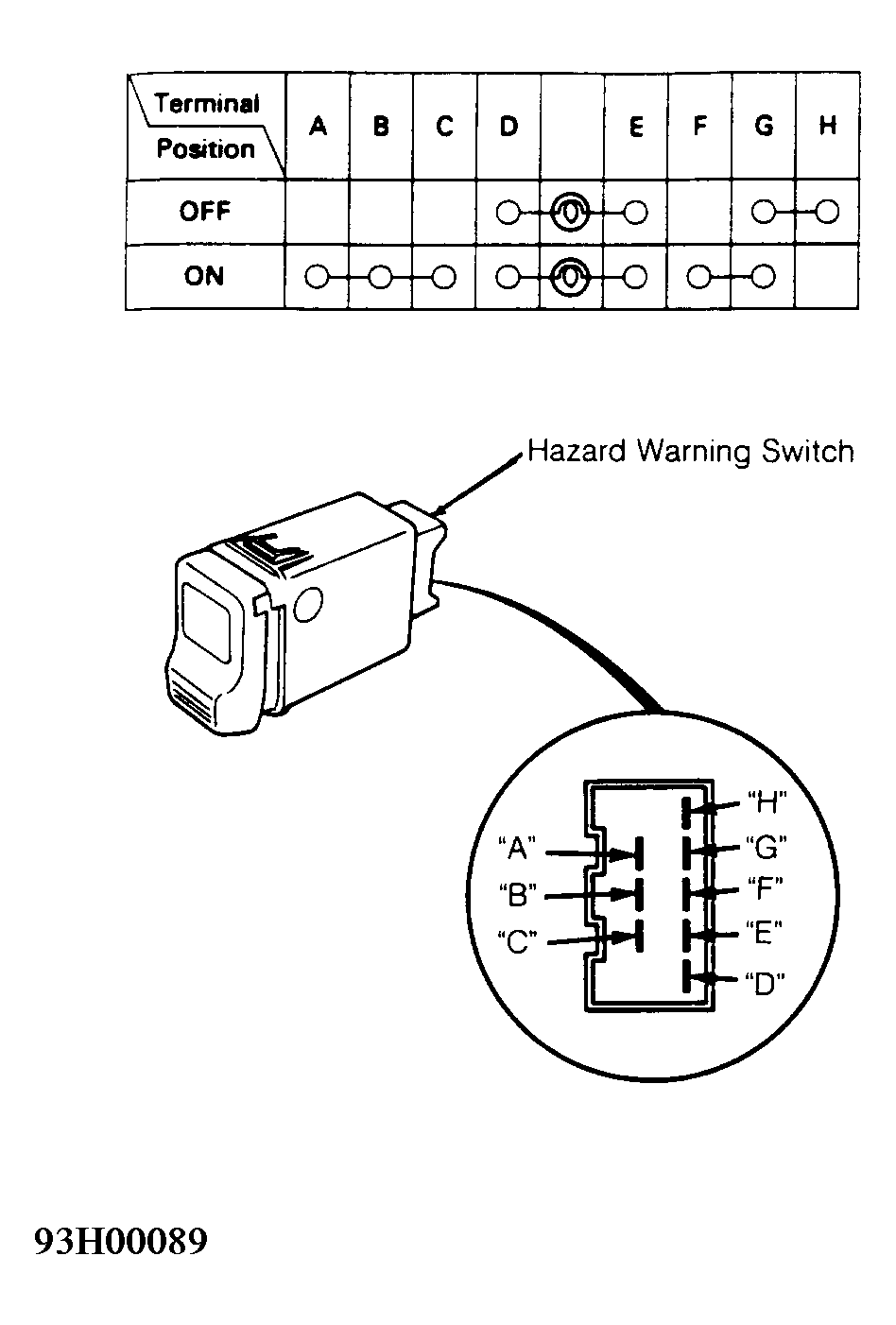

Fig 1: Testing Hazard Warning Switch (Integra)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

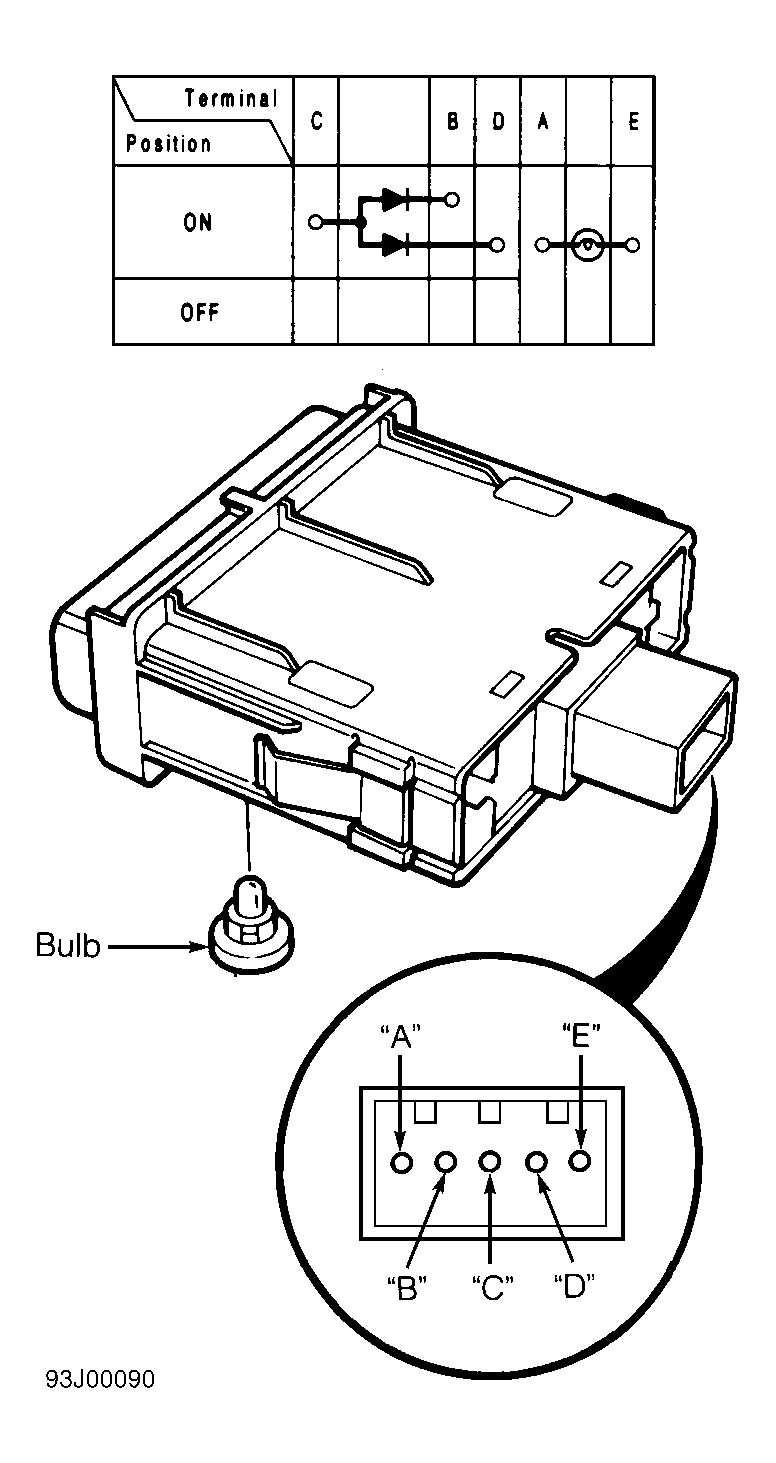

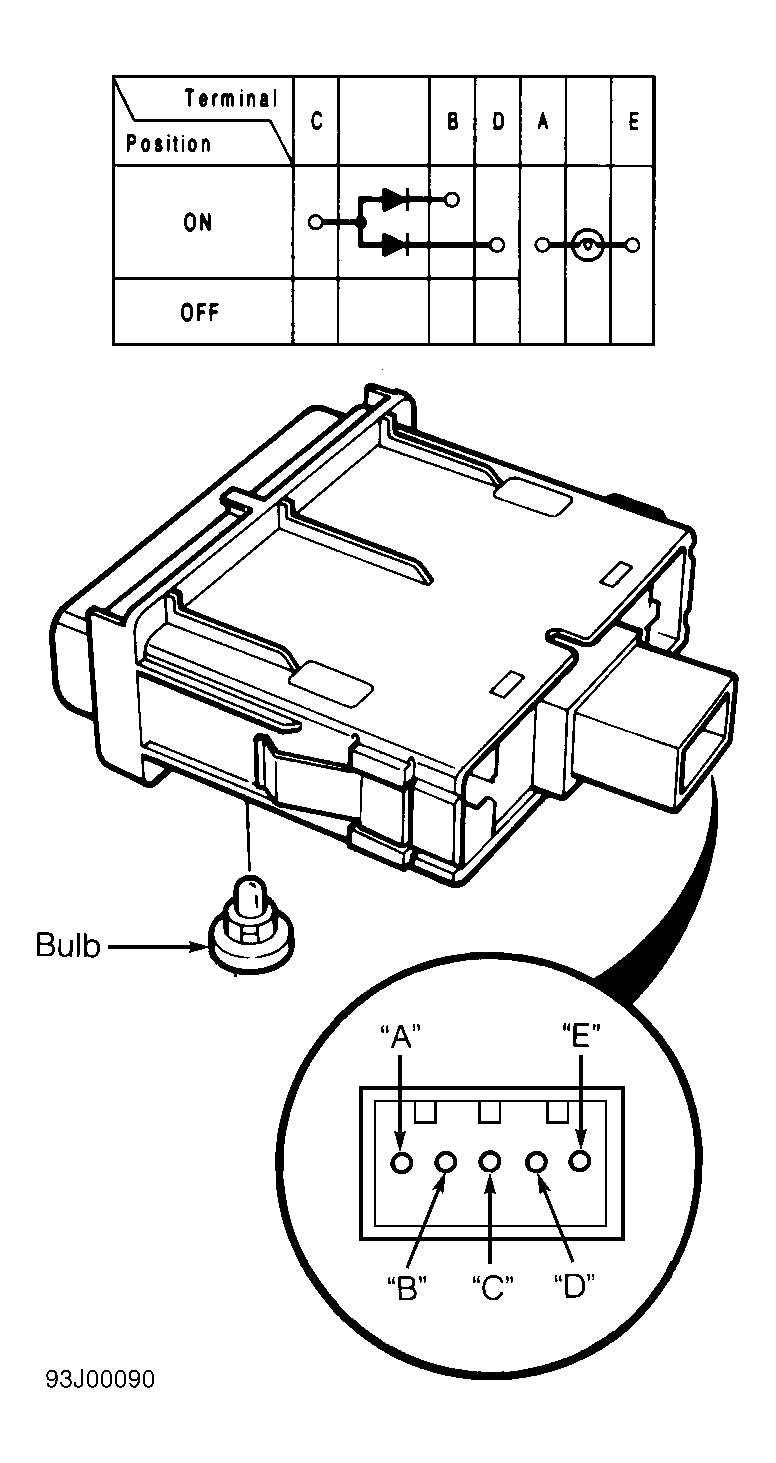

Fig 2: Testing Hazard Warning Switch (Legend)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

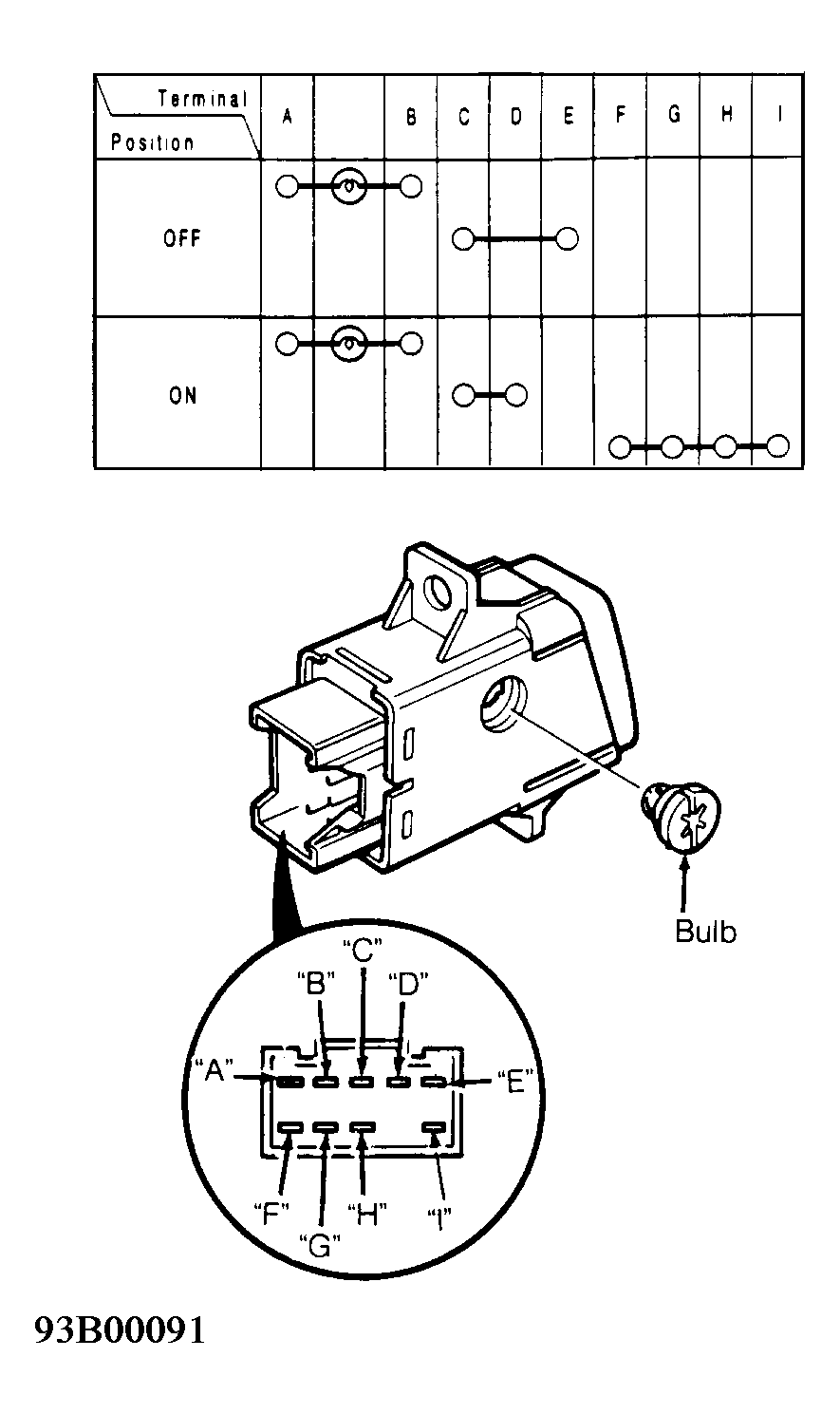

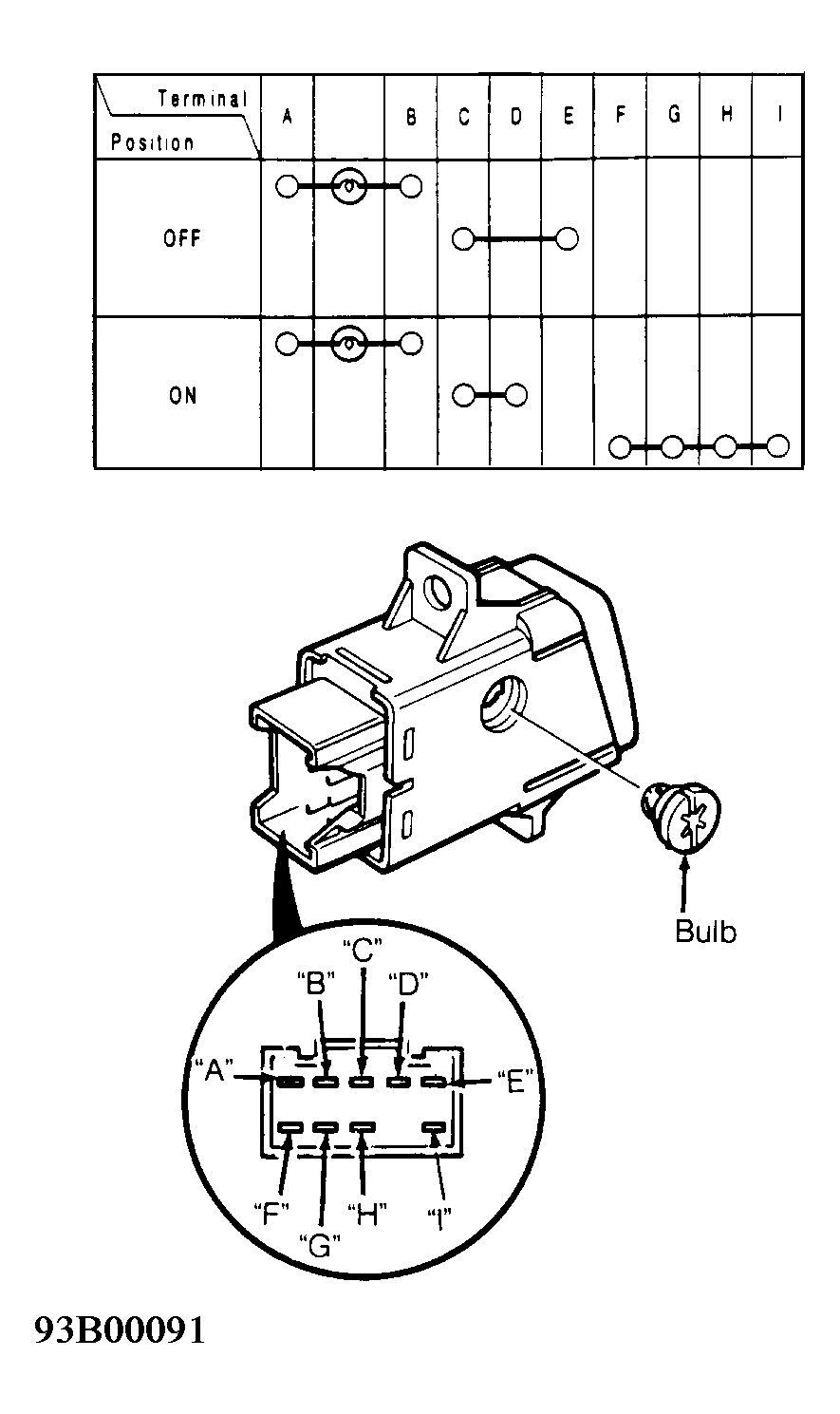

Fig 3: Testing Hazard Warning Switch (Vigor)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
