Speedometer Speed PULSER: Integra

Remove instrument cluster. Connect ohmmeter between terminals "A" and "B" of speed pulser. See Fig 1 . Insert a pencil into speedometer cable socket, and rotate it. Replace speed pulser if continuity does not exist 4 times per revolution of speed pulser.

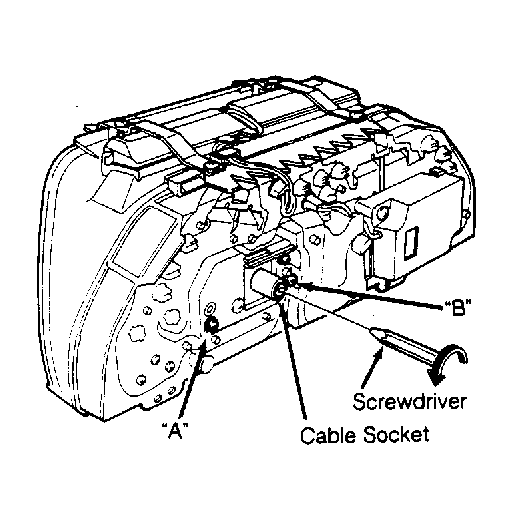

Fig 1: Testing Speedometer Speed Pulser (Integra)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
