Starter Solenoid Test

Check starter solenoid for continuity between terminal "S" and armature housing (ground). See Fig 1. Check continuity between terminals "S" and "M". Continuity should be present. If continuity is not present, replace solenoid.

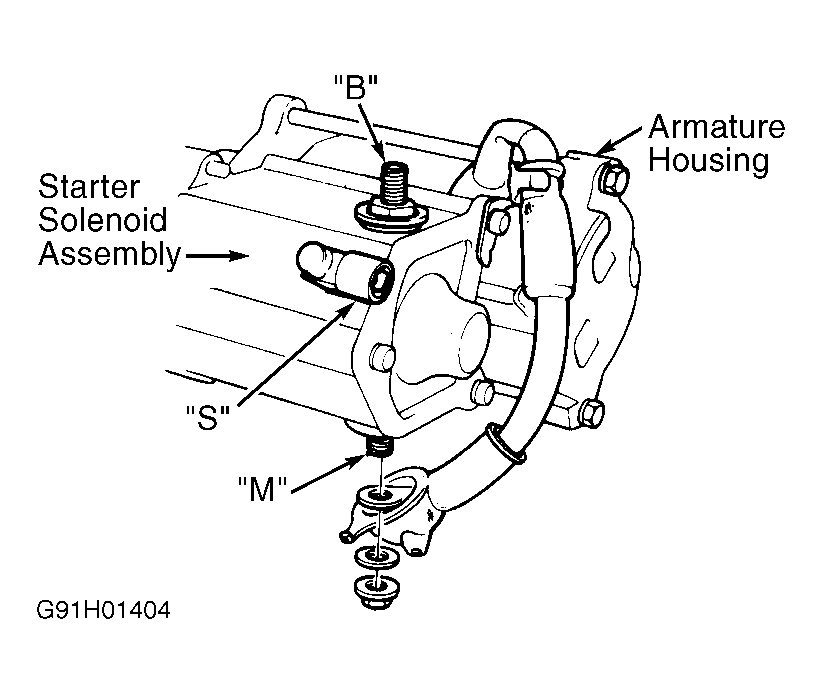

Fig 1: Identifying Solenoid Terminals (Integra)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
