Radiator Fan Main Relay (Legend)

Remove radiator fan main relay. Relay is located in underhood relay box "A". See Fig 2 . Continuity should exist between terminals "A" and "C" with battery voltage applied between terminals "D" and "E". See Fig 5 . With battery voltage disconnected, continuity should exist between terminals "B" and "C". If relay does not operate as specified, replace relay.

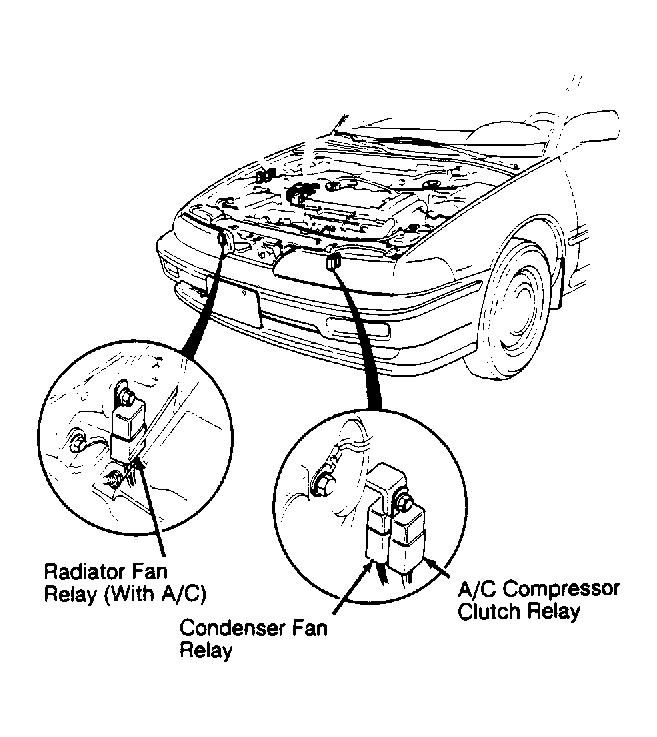

Fig 1: Locating Fan Relays (Integra)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

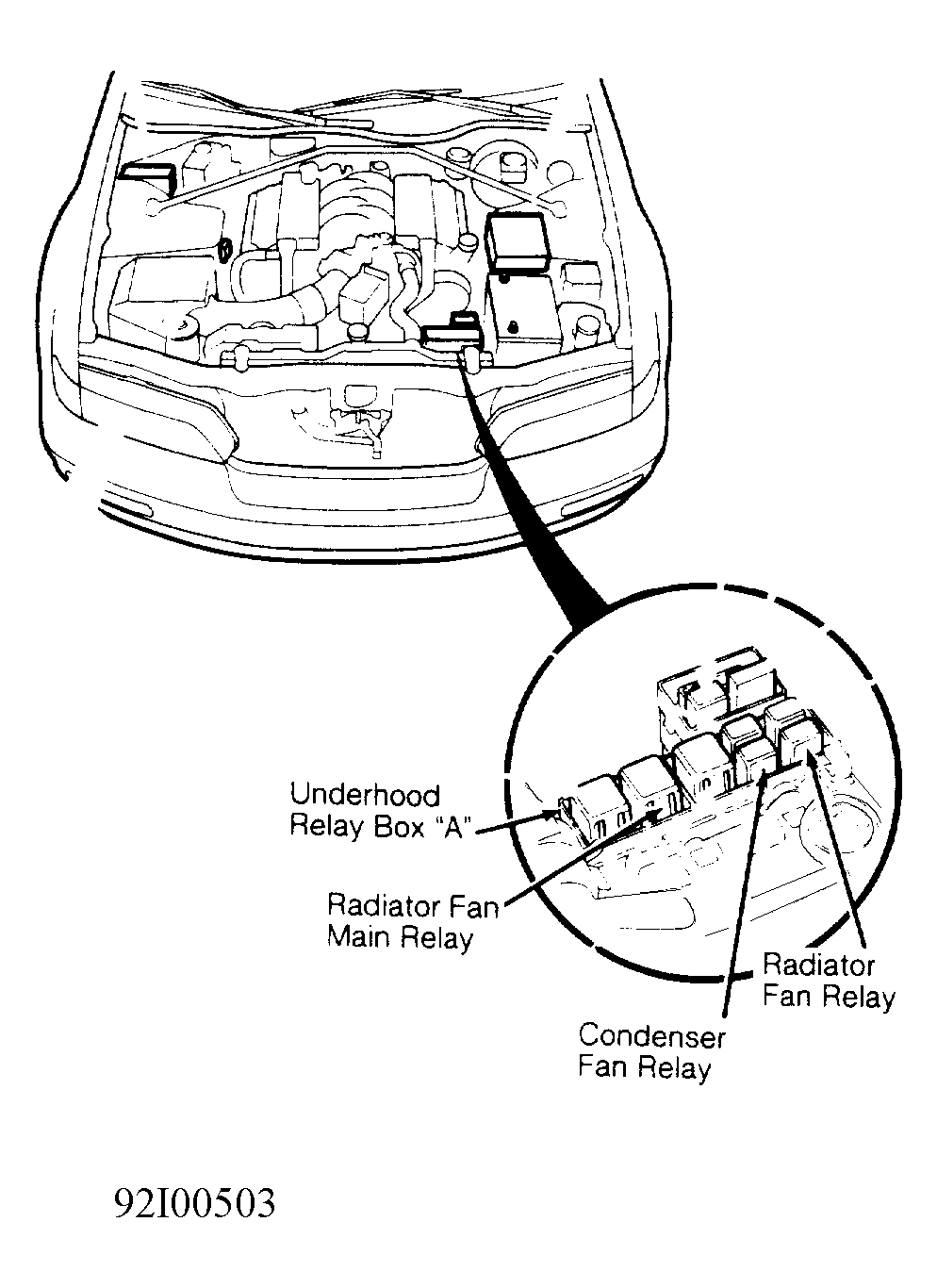

Fig 2: Locating Fan Relays (Legend)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

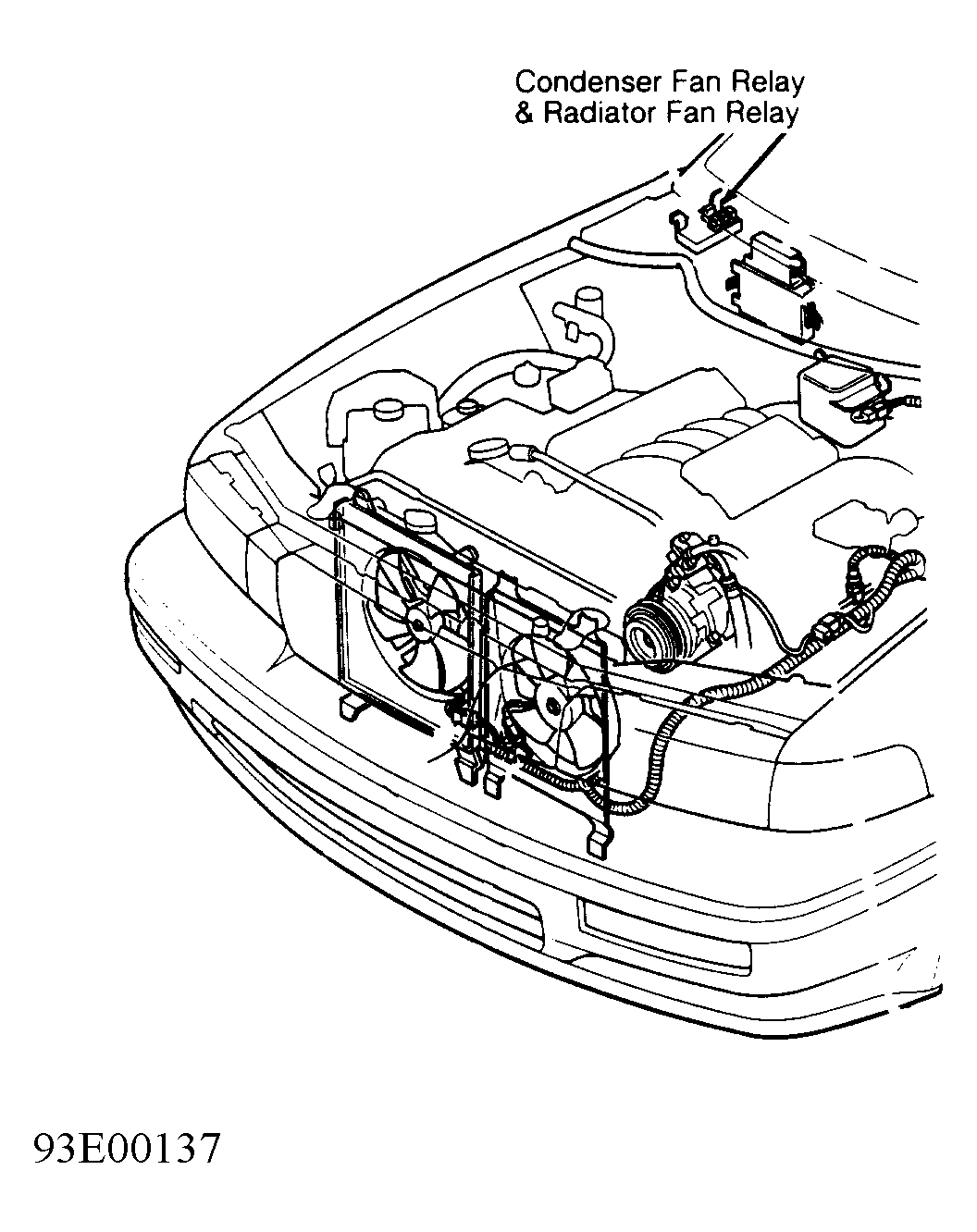

Fig 3: Locating Fan Relays (Vigor)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

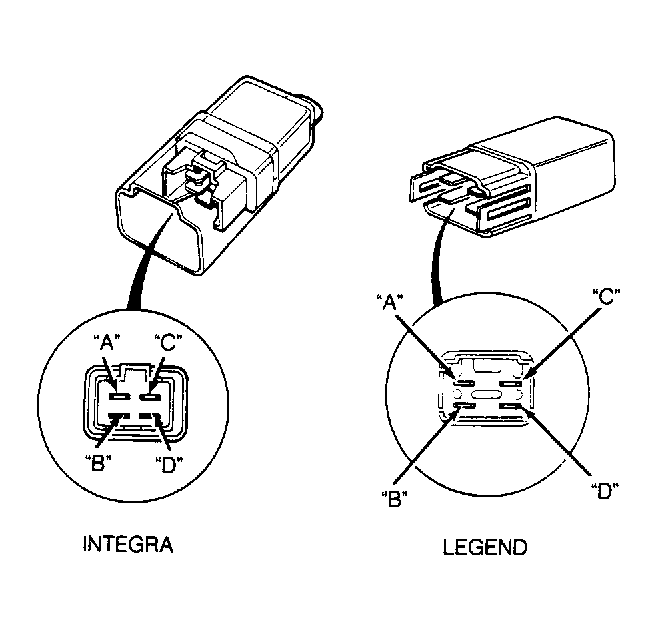

Fig 4: Identifying Cooling Fan Relay Terminals

Courtesy of AMERICAN HONDA MOTOR CO., INC.

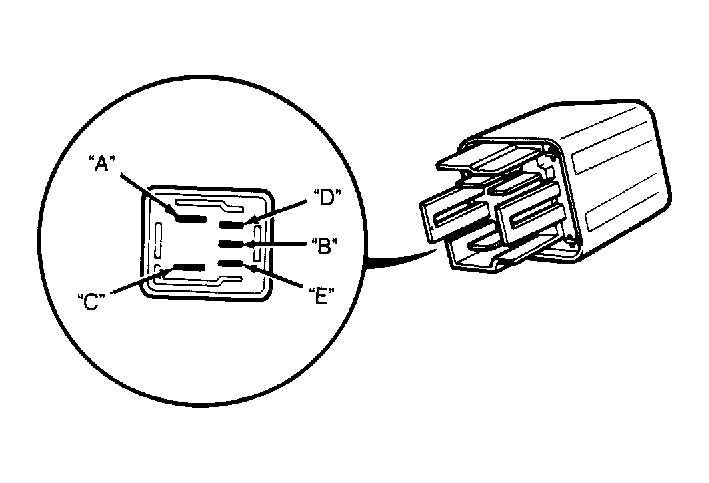

Fig 5: Identifying Radiator Fan Main Relay Terminals (Legend)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
