Ignition Timing: INTEGRA

Operate engine until cooling fan comes on. Locate Light Gray connector under right side of dash, next to blower motor. Connect terminals of ignition timing adjusting connector with jumper wire. See Fig 1 .
Red mark on crankshaft pulley should align with pointer. See Fig 2 . If Red mark and pointer are not aligned, adjust base ignition timing by turning distributor. See IGNITION TIMING table. Remove jumper wire from ignition timing adjusting connector.

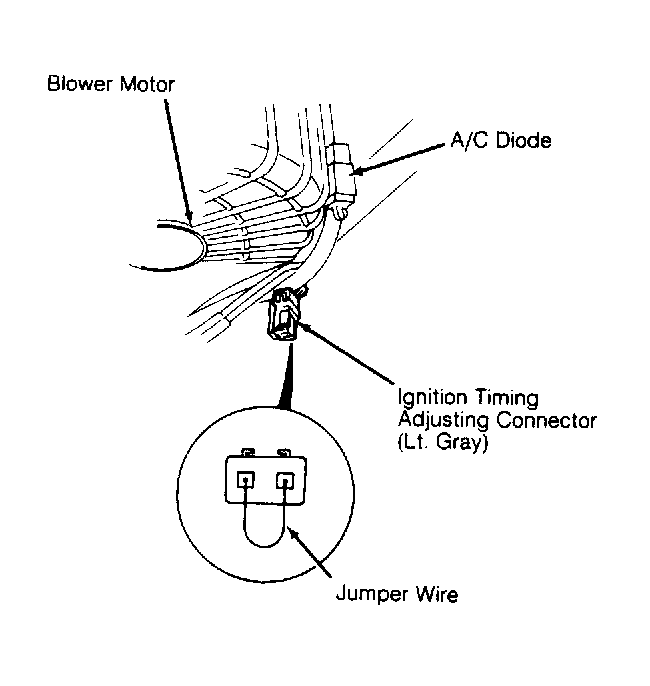

Fig 1: Locating Ignition Timing Adjusting Connector (Integra)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

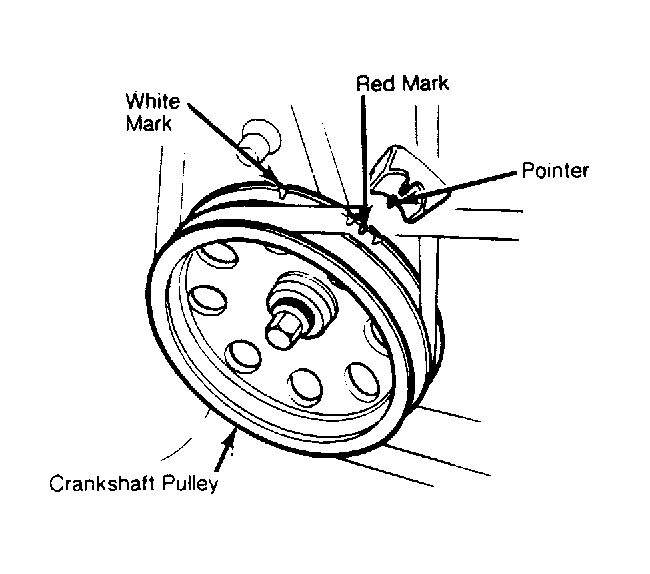

Fig 2: Locating Ignition Timing Marks (Integra)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
