Fuel Pump Relay (Vigor)

  1. Remove fuel pump main relay located at left side of cowl. Connect battery voltage to terminal No. 6, and ground terminal No. 8 of relay. See Fig 1 .
  2. Check continuity between relay terminals No. 5 and 7. If continuity exists, go to next step. If continuity does not exist, replace relay.
  3. Connect battery voltage to relay terminal No. 5, and ground terminal No. 2. Check continuity between relay terminals No. 1 and 3. If continuity exists, go to next step. If continuity does not exist, replace relay.
  4. Connect battery voltage to relay terminal No. 3, and ground terminal No. 8. Check continuity between relay terminals No. 5 and 7. If continuity exists, relay is okay. If continuity does not exist, replace relay.

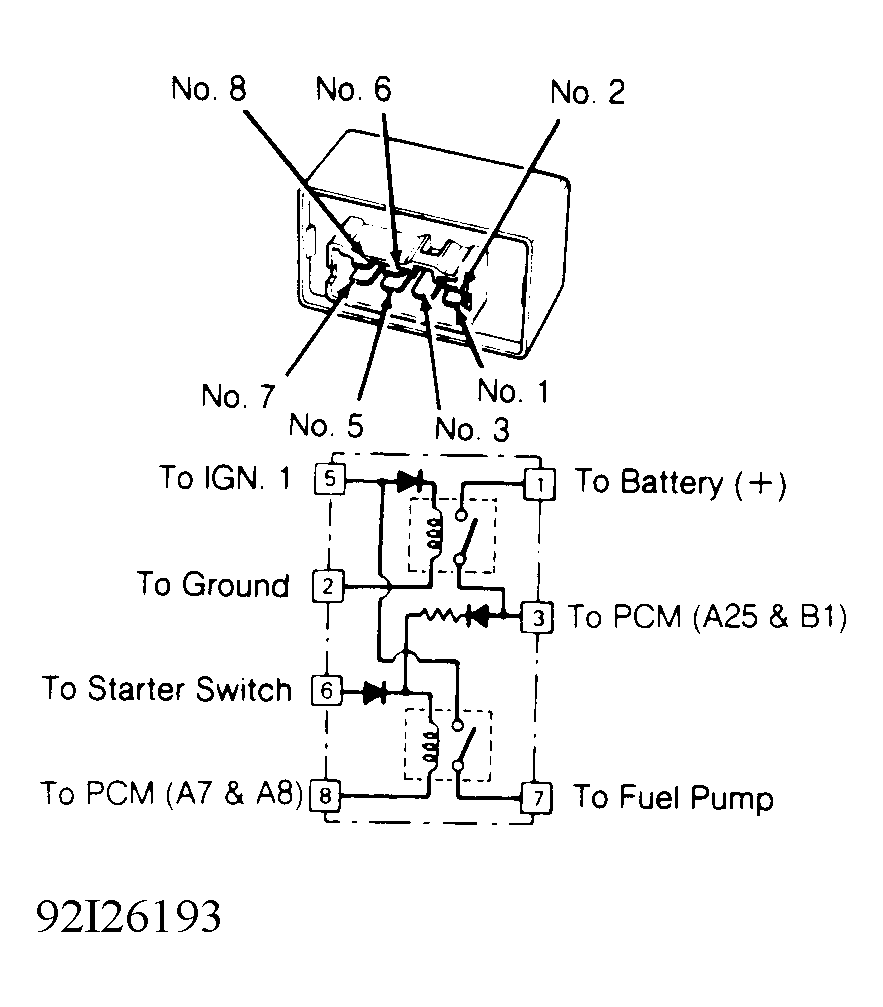

    Fig 1: Fuel Pump Relay Terminal ID (Vigor)
    G92I26193Courtesy of AMERICAN HONDA MOTOR CO., INC.
