Maintenance Overview: Antifreeze/Coolant

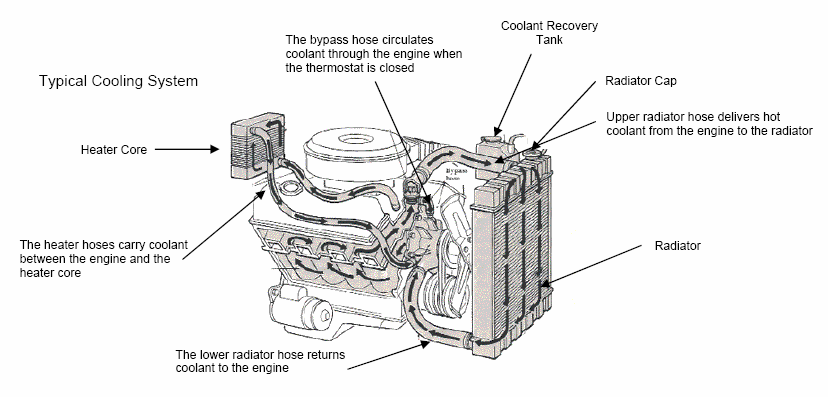

The main function of the Engine Cooling System is to carry heat away from the engine and maintain the desired operating temperature. This is accomplished by circulating antifreeze/coolant through the engine, where heat is generated, and carrying it to the radiator to be cooled.
Over the past decade internal combustion engines have become more fuel efficient; however, most of the energy in the gasoline (perhaps 70%) is converted into heat, and the cooling system keeps the engine from overheating by transferring this heat to the air. But the cooling system also has several other functions.
An automobile engine runs best at a fairly high temperature. When the engine is cold, components wear out faster, and the engine is less efficient and releases more pollutants into the atmosphere. The cooling system is designed to allow the engine to heat up as quickly as possible, and then to keep the engine at a constant temperature.
Modern automobiles operate in a wide variety of ambient temperatures, from well below freezing to well over 100 F. The fluid used to cool the engine must have a very low freezing point, a high boiling point, and it must have the ability to transfer a lot of heat.
An adequate amount of an antifreeze/coolant and water mixture is necessary to reduce the possibility of engine overheating and freezing, and to prevent rust and corrosion in the cooling system.
Water is one of the most effective fluids for holding heat, but water freezes at too high a temperature to be used in car engines. The fluid that most cars use is a mixture of water and ethylene glycol, also known as antifreeze. By adding ethylene glycol to water, the boiling and freezing points are improved significantly.
The temperature of the coolant can sometimes reach 250 to 275 F (121 to 135 C). Even with ethylene glycol added, these temperatures would boil the coolant. The cooling system is pressurized, which further raises the boiling point of the coolant. Most automobiles have around 14 to 15 pounds per square inch (psi), which raises the boiling point approximately 45 F so the coolant can endure the high temperatures produced in the engine.
Hoses showing obvious signs of wear such as cracks, cuts, stiffness, bulges, excessive softness or abrasions should be replaced.
The National Automotive Radiator Service Association (NARSA) recommends a seven (7)-point preventative cooling system maintenance check at least once every two years. The program is designed to identify any areas that need attention, and consists of:
- a visual inspection of all cooling system components, including belts and hoses
- a radiator cap test to check for the recommended system pressure level
- a thermostat check for proper opening and closing
- a pressure test to identify any external leaks to the cooling system parts; including the radiator, water pump, engine coolant passages, radiator and heater hoses and heater core
- an internal leak test to check for combustion gas leakage into the cooling system
- an engine fan test for proper operation h a system power flush and refill with car manufacturer's recommended concentration of coolant
