A/C Clutch Relay

Relay is located in relay block, at right rear of engine compartment. Remove relay. Check for continuity between terminals "A" and "B". If continuity exists, replace relay. Using fused jumper wires, connect 12-volt battery power and ground to terminals "C" and "D". Continuity should exist between terminals No. "A" and "B". See Fig 1 . Replace relay if continuity is not as specified.

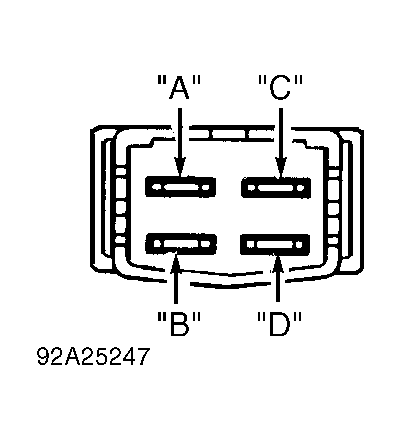

Fig 1: A/C Clutch Relay Terminal ID

Courtesy of AMERICAN HONDA MOTOR CO., INC.
