Fuel Injector Resistor
WARNING:
DO NOT smoke during the test. Keep open flame away from your work area. ALWAYS release fuel pressure before disconnecting any fuel injection-related component. DO NOT allow fuel to contact engine or electrical components.
- Disconnect the resistor connector.

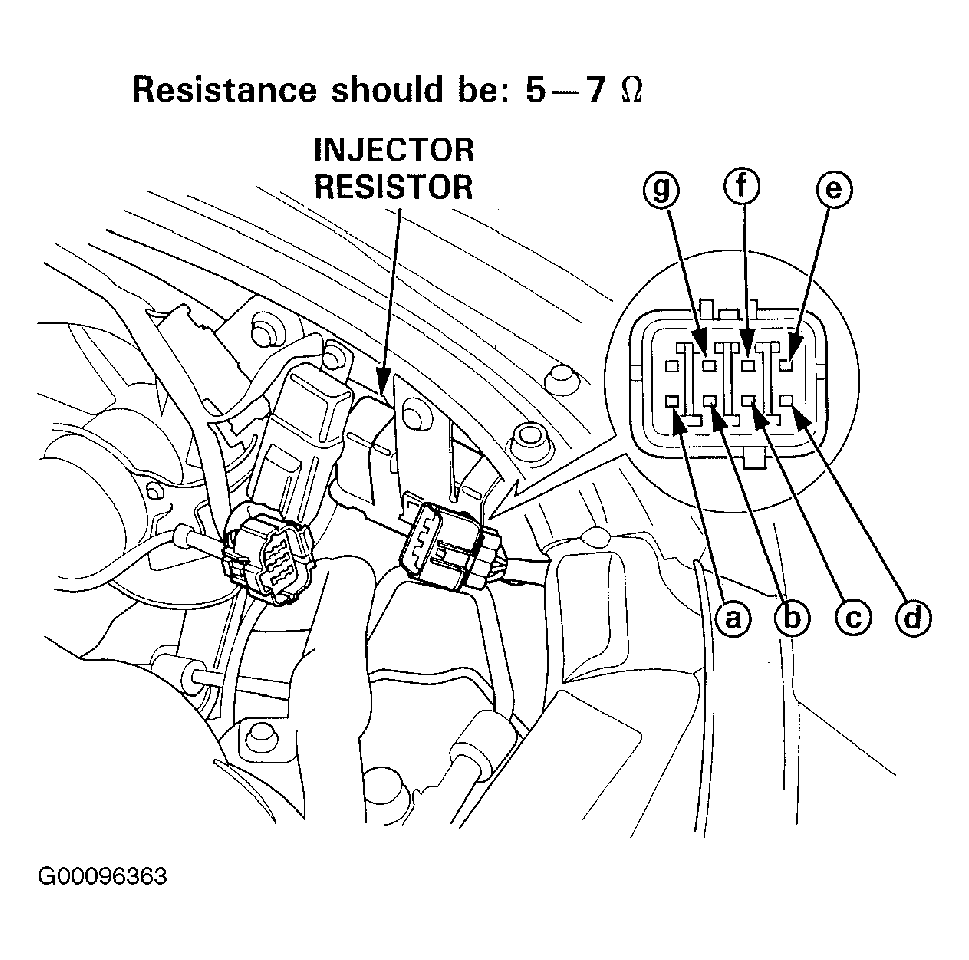

- Check for resistance between each of the resistor terminals "b", "c", "d", "e", "f" and "g" and the power terminal "a". See Fig 1 .
- Resistance should be 5-7 ohms.
- Replace the resistor with a new one if any of the resistances are outside of the specification.
