Fuel Pump Resistor
WARNING:
DO NOT smoke during the test. Keep open flame away from your work area. ALWAYS release fuel pressure before disconnecting any fuel injection-related component. DO NOT allow fuel to contact engine or electrical components.

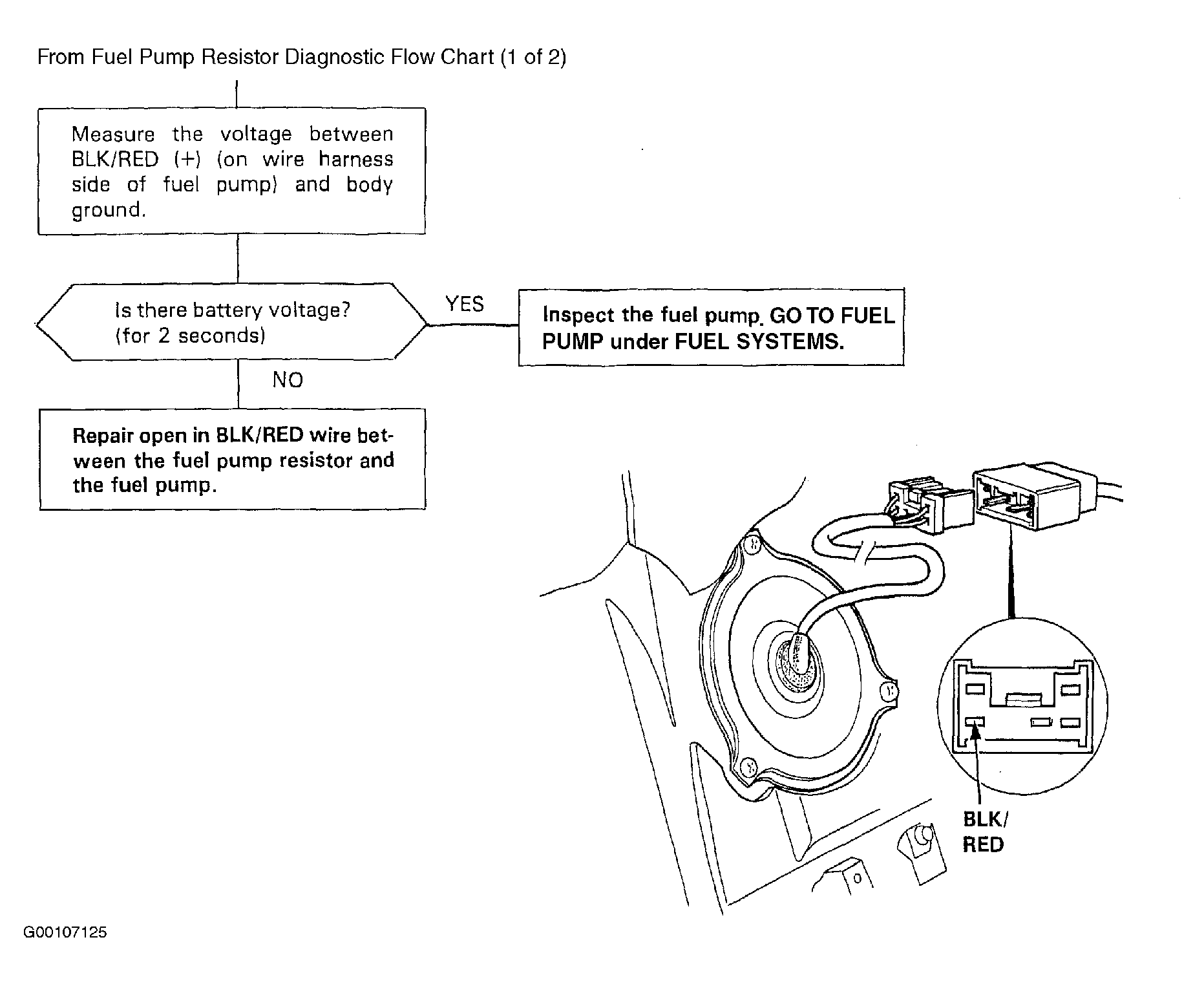

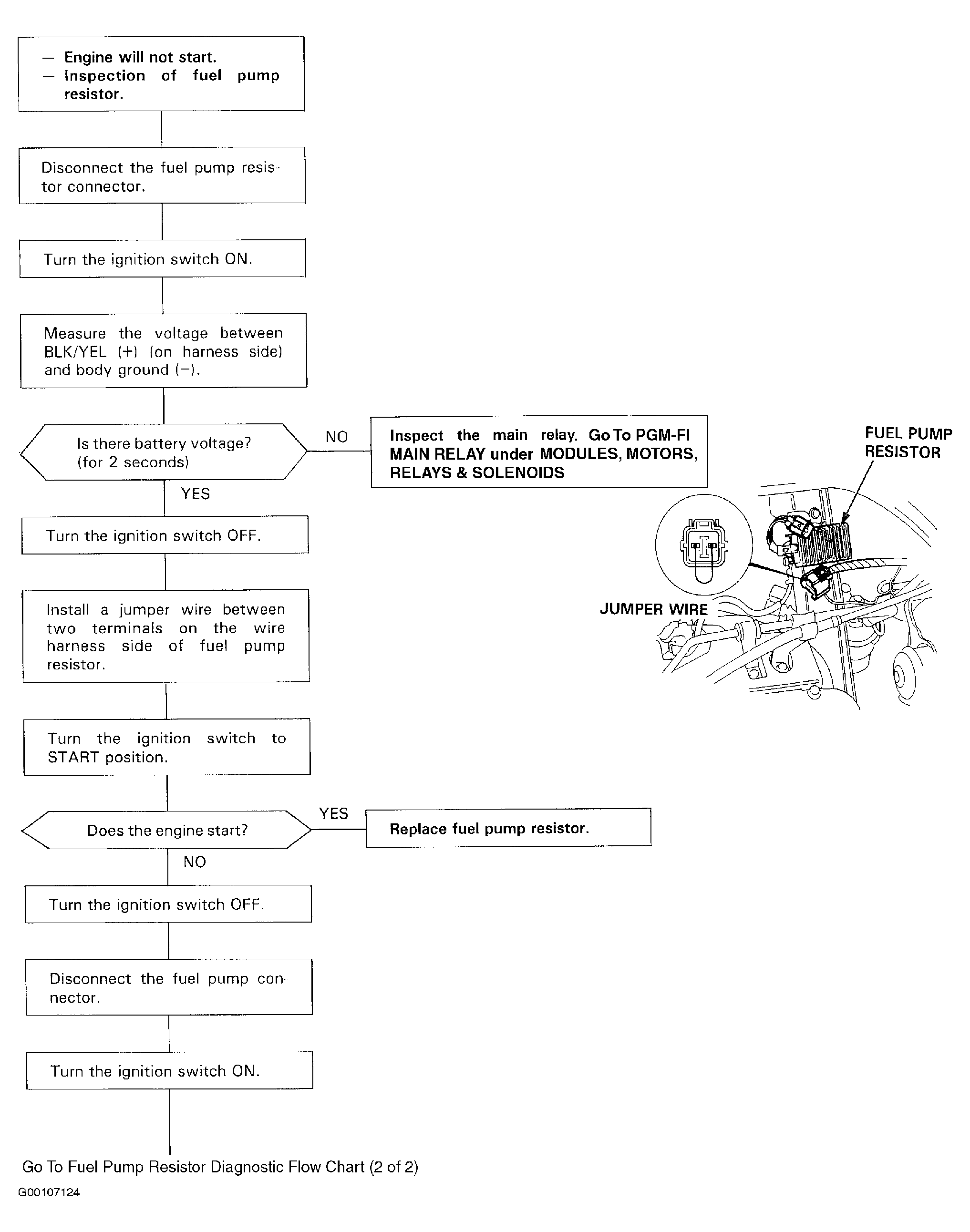

For troubleshooting of the fuel pump resistor, see Fig 1
and Fig 2
.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
