Clutch Switch Signal

This signals the PGM-FI ECU when the clutch is engaged. See Fig 1 and Fig 2 .

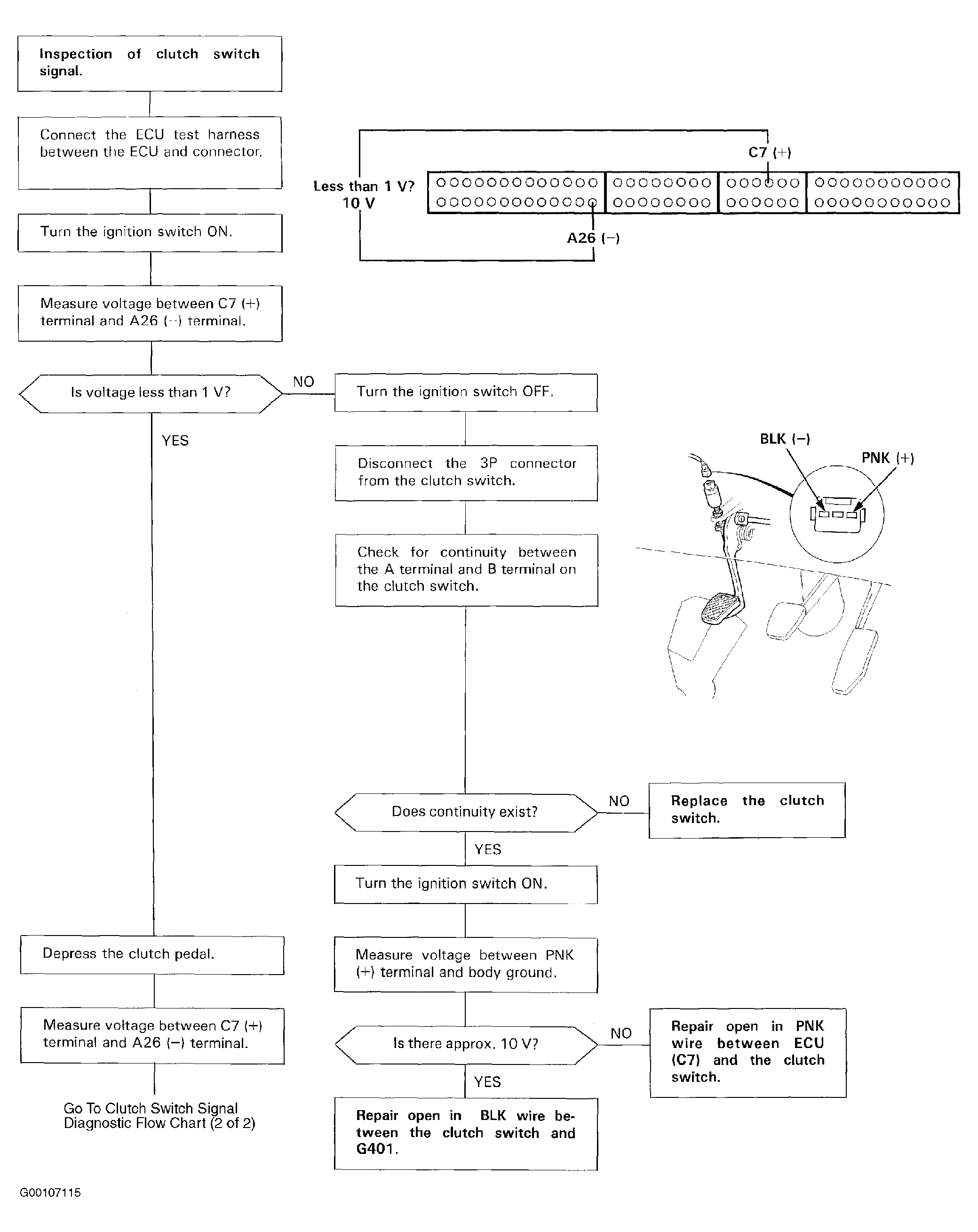

Fig 1: Clutch Signal Switch Diagnostic Flow Chart (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

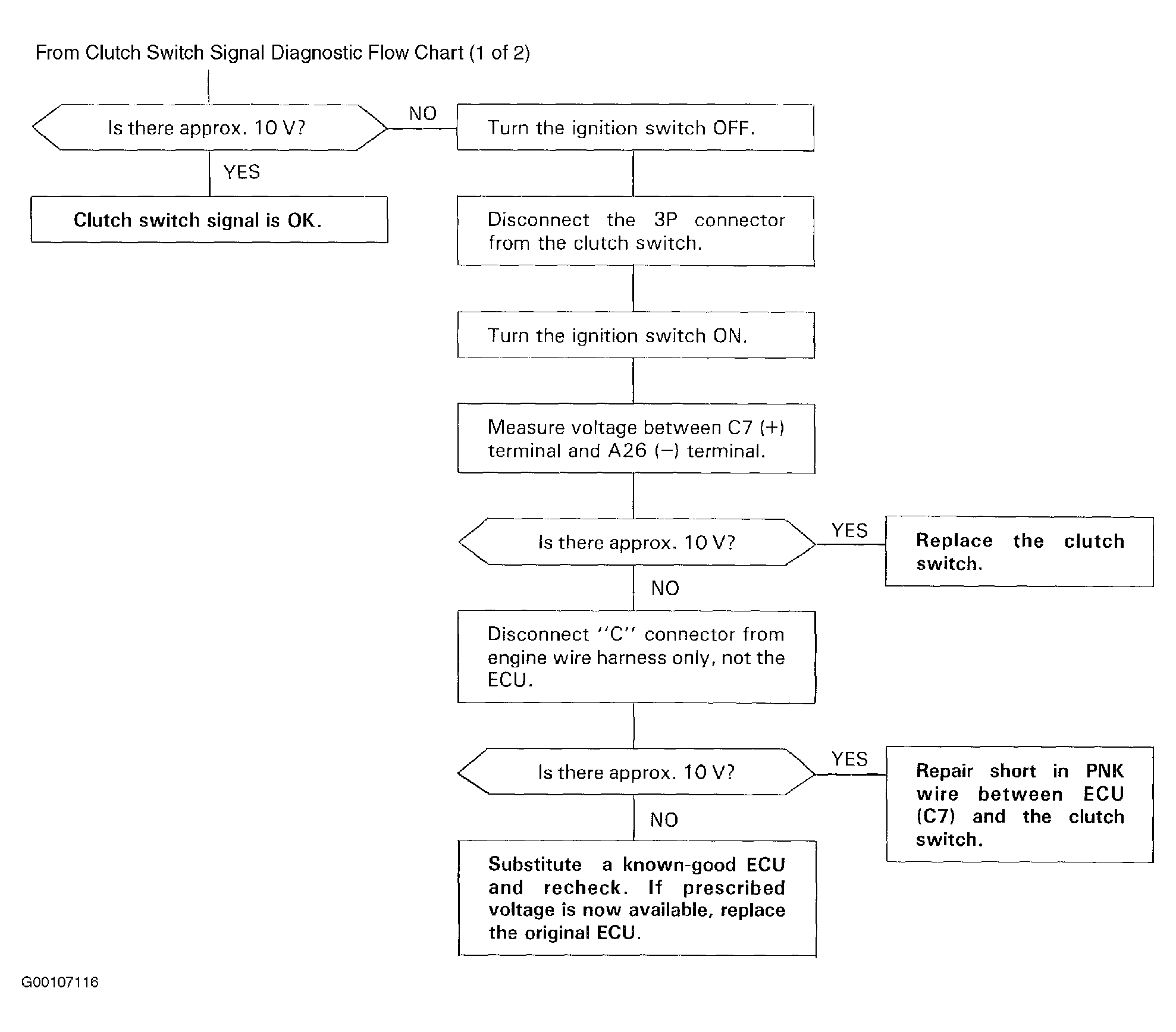

Fig 2: Clutch Signal Switch Diagnostic Flow Chart (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
