M/T Neutral Switch Signal

This signals the PGM-FI ECU when the transmission is in Neutral. See Fig 1 .

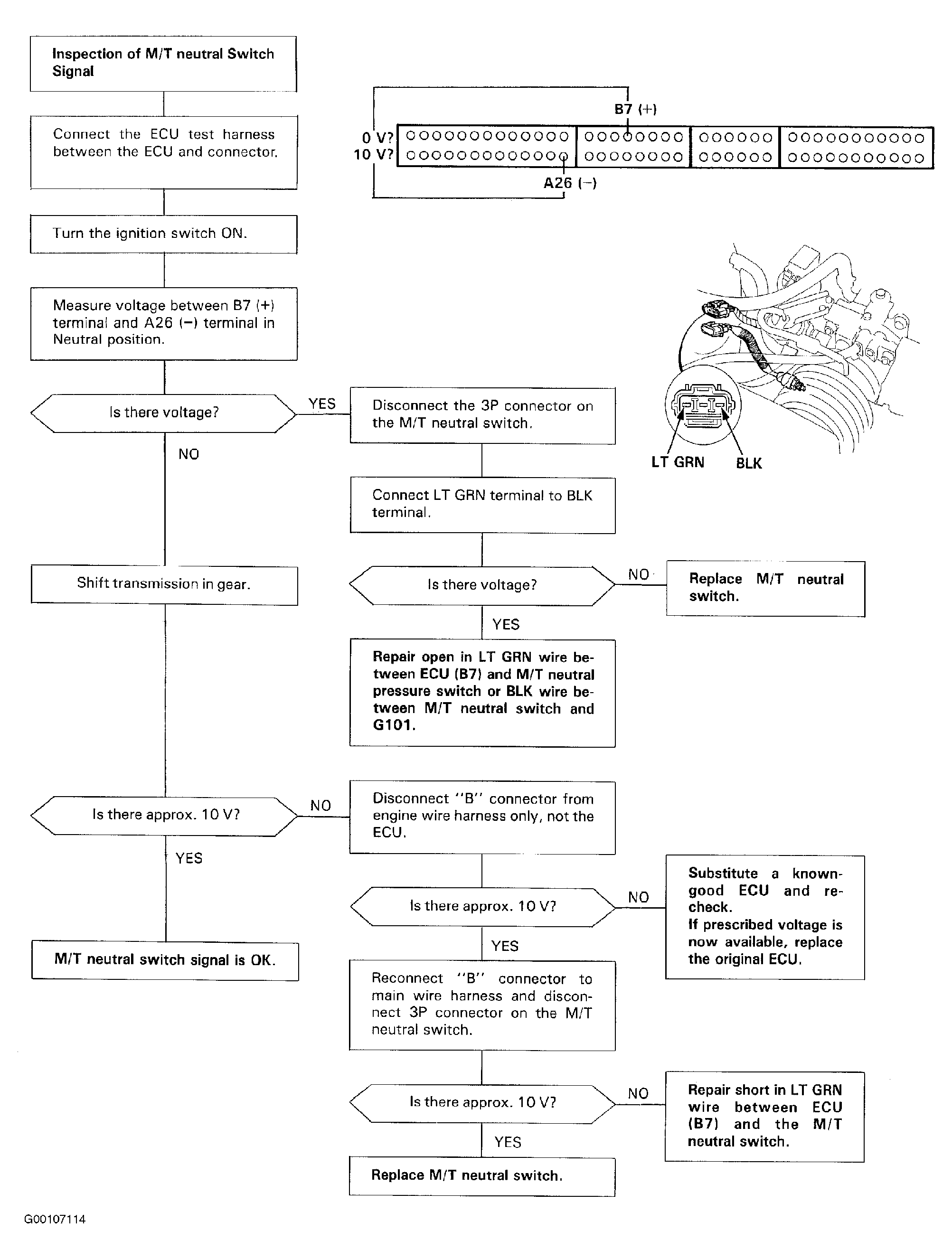

Fig 1: M/T Neutral Signal Switch Diagnostic Flow Chart

Courtesy of AMERICAN HONDA MOTOR CO., INC.
