Removal & Installation

Remove negative battery cable. Remove carpet from right footwell. Remove ECM cover. See Figure. Unplug electrical connectors. Remove ECM. To install, reverse removal procedure.

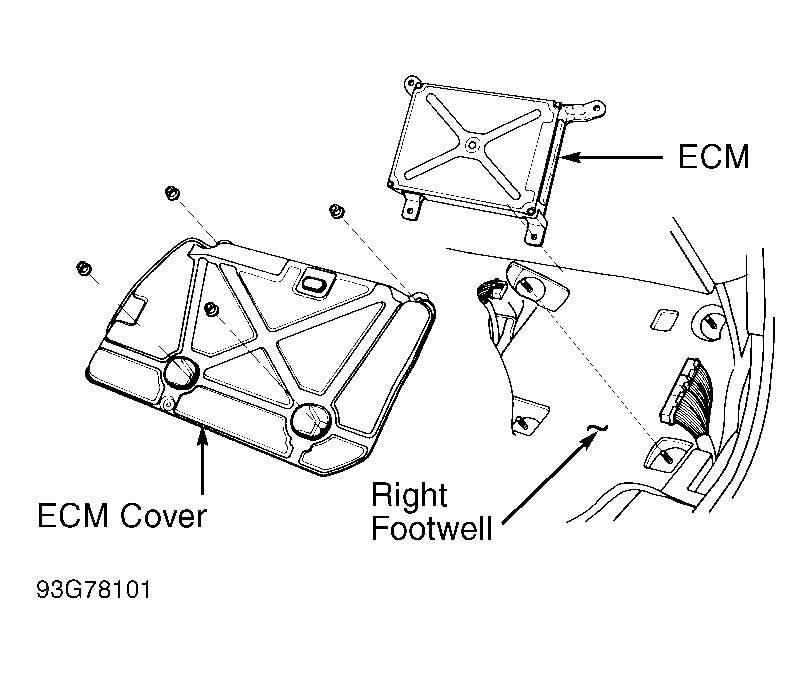

Fig 1: Removing ECM
G93G78101Courtesy of AMERICAN HONDA MOTOR CO., INC.
