Brake Bulb Check System

For testing procedure, see Fig 1 .

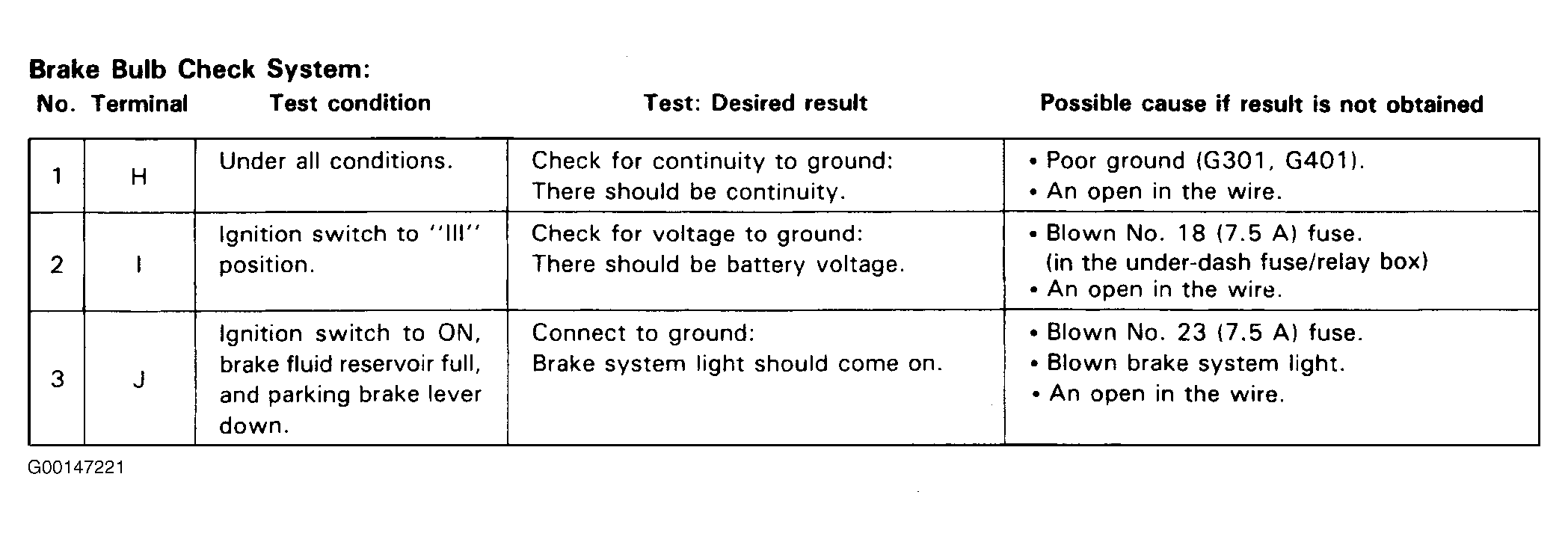

Fig 1: Brake Warning System Input Test
G00147221Courtesy of AMERICAN HONDA MOTOR CO., INC.
