Oil Pressure Indicator Flasher System

For testing procedure, see Fig 1 .

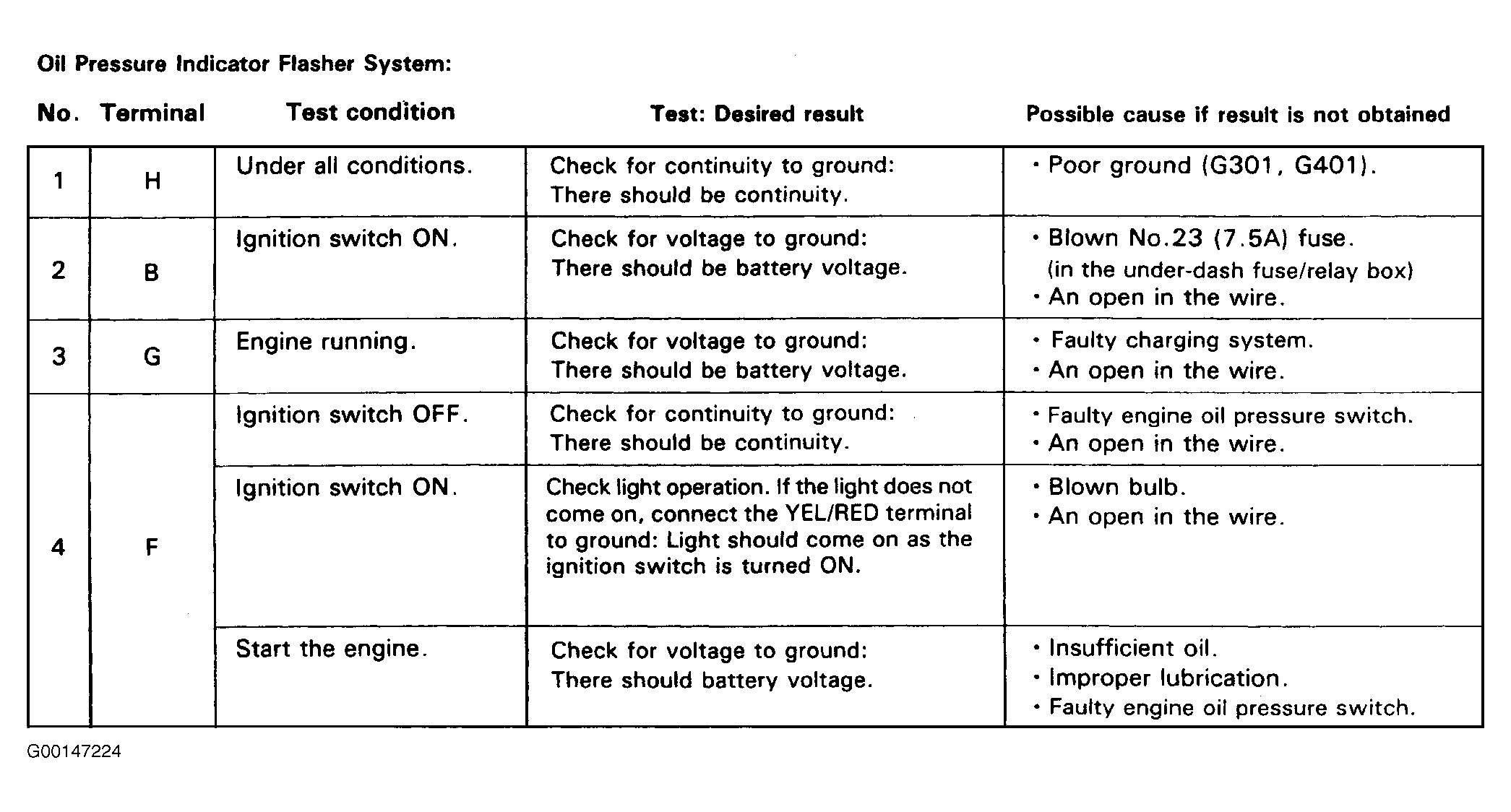

Fig 1: Oil Pressure Indicator Flasher System Input Test
G00147224Courtesy of AMERICAN HONDA MOTOR CO., INC.
