Side Marker Light Flasher System

For testing procedure, see Fig 1 .

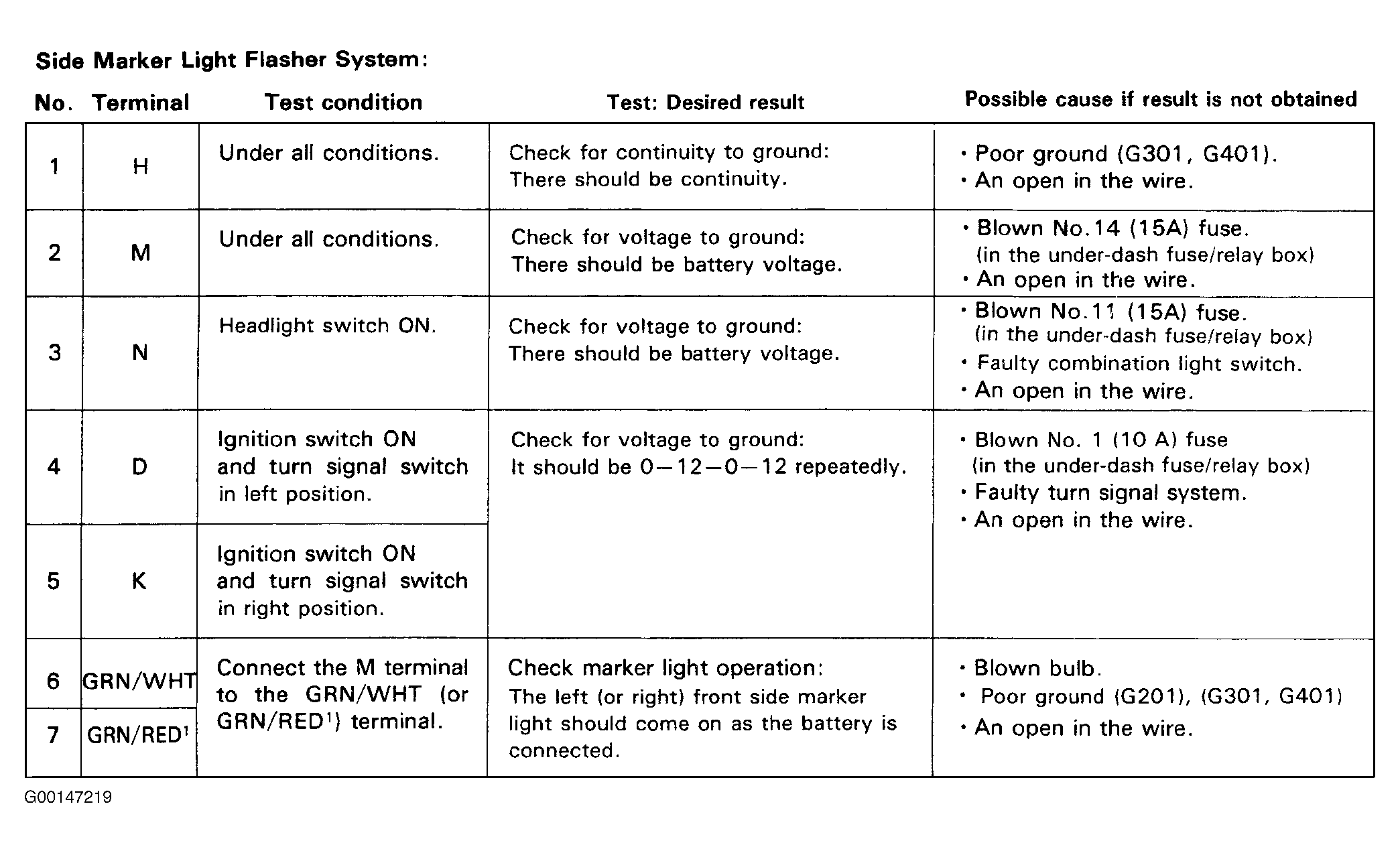

Fig 1: Side Marker Light Flasher System Input Test
G00147219Courtesy of AMERICAN HONDA MOTOR CO., INC.
