Component Tests: Chime

  1. Remove the front console to disconnect the 2-P connector from the dashboard wire harness. See Fig 1 .
  2. Test chime operation by connecting battery positive to the ORN terminal, and negative to the BLK terminal, and cycling the power on-off repeatedly.
  3. If the chime fails to sound every time power is cycled, replace it.

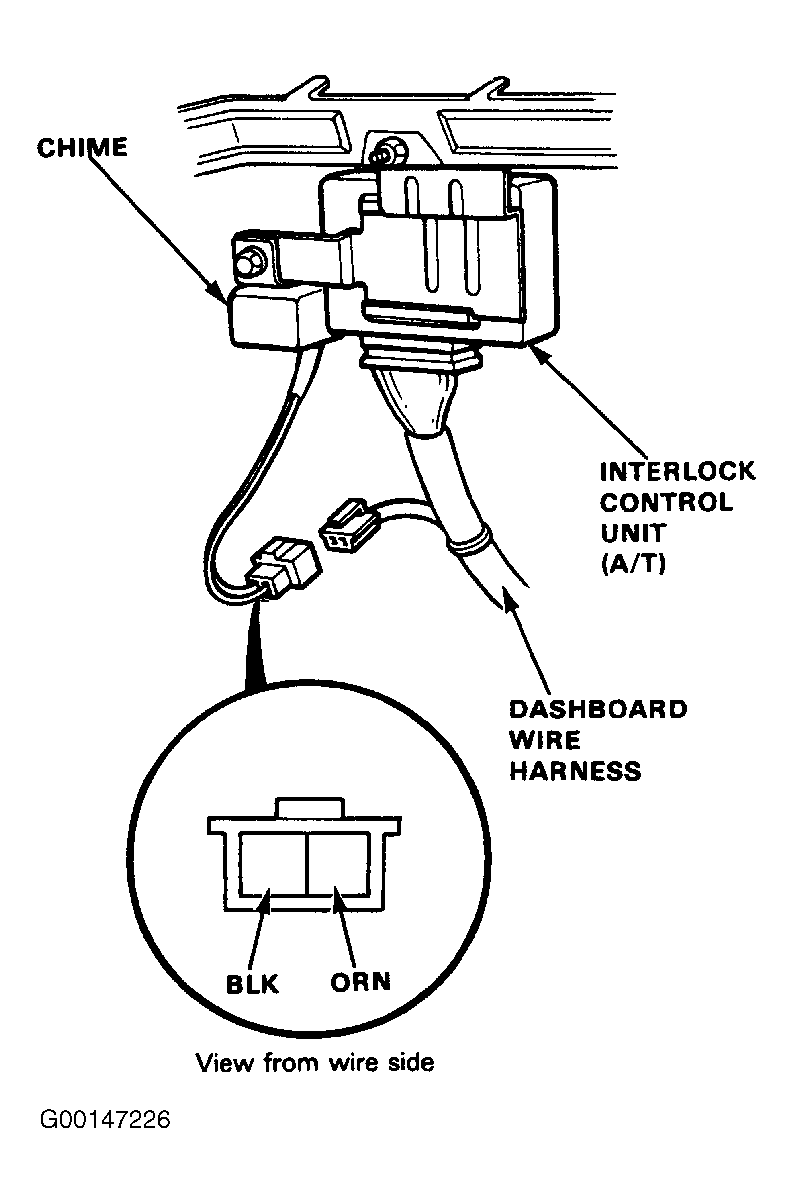

Fig 1: Locating & Identifying Chime 2-P Connector
G00147226Courtesy of AMERICAN HONDA MOTOR CO., INC.
