Ignition Key Switch

  1. Remove the dashboard lower panel and left knee bolster, then disconnect the 5-P connector from the main wire harness. See Fig 1 .
  2. There should be continuity between the BLU/WHT and WHT/GRN terminals when the ignition switch is turned from "I" to "O" position. There should be no continuity when the ignition key is removed.

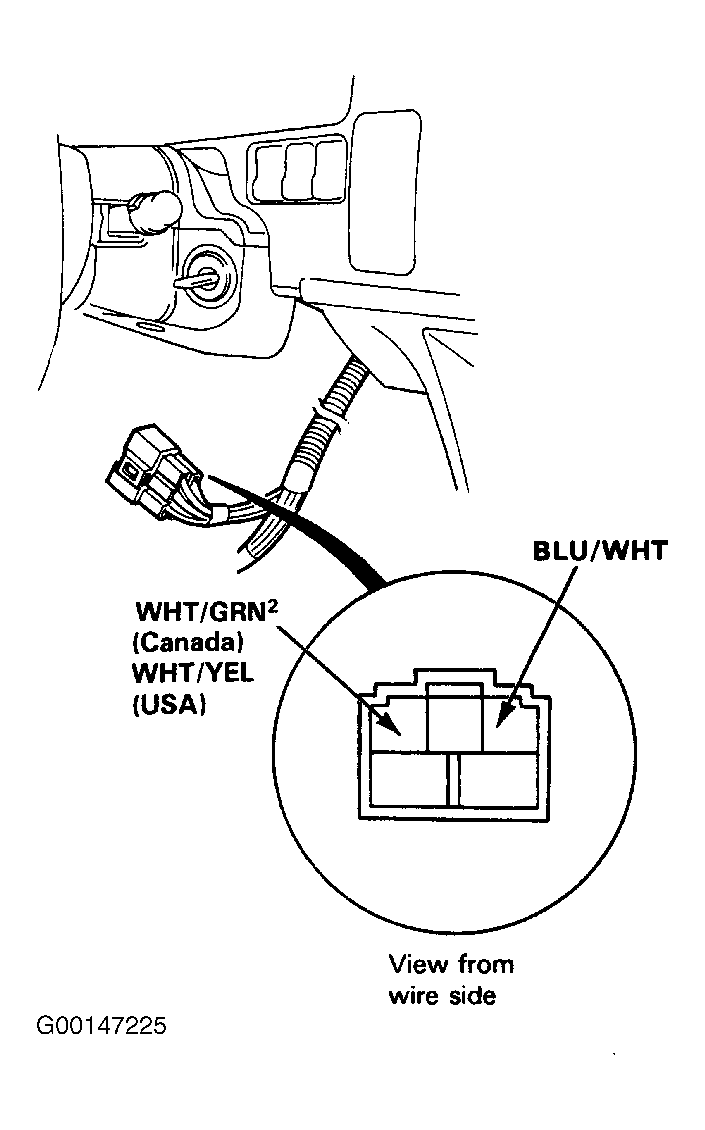

Fig 1: Locating & Identifying Ignition Key Switch 5-P Connector
G00147225Courtesy of AMERICAN HONDA MOTOR CO., INC.
