Electrical Component Locator: Switches
SWITCHES LOCATION
| Component | Location |
|---|---|

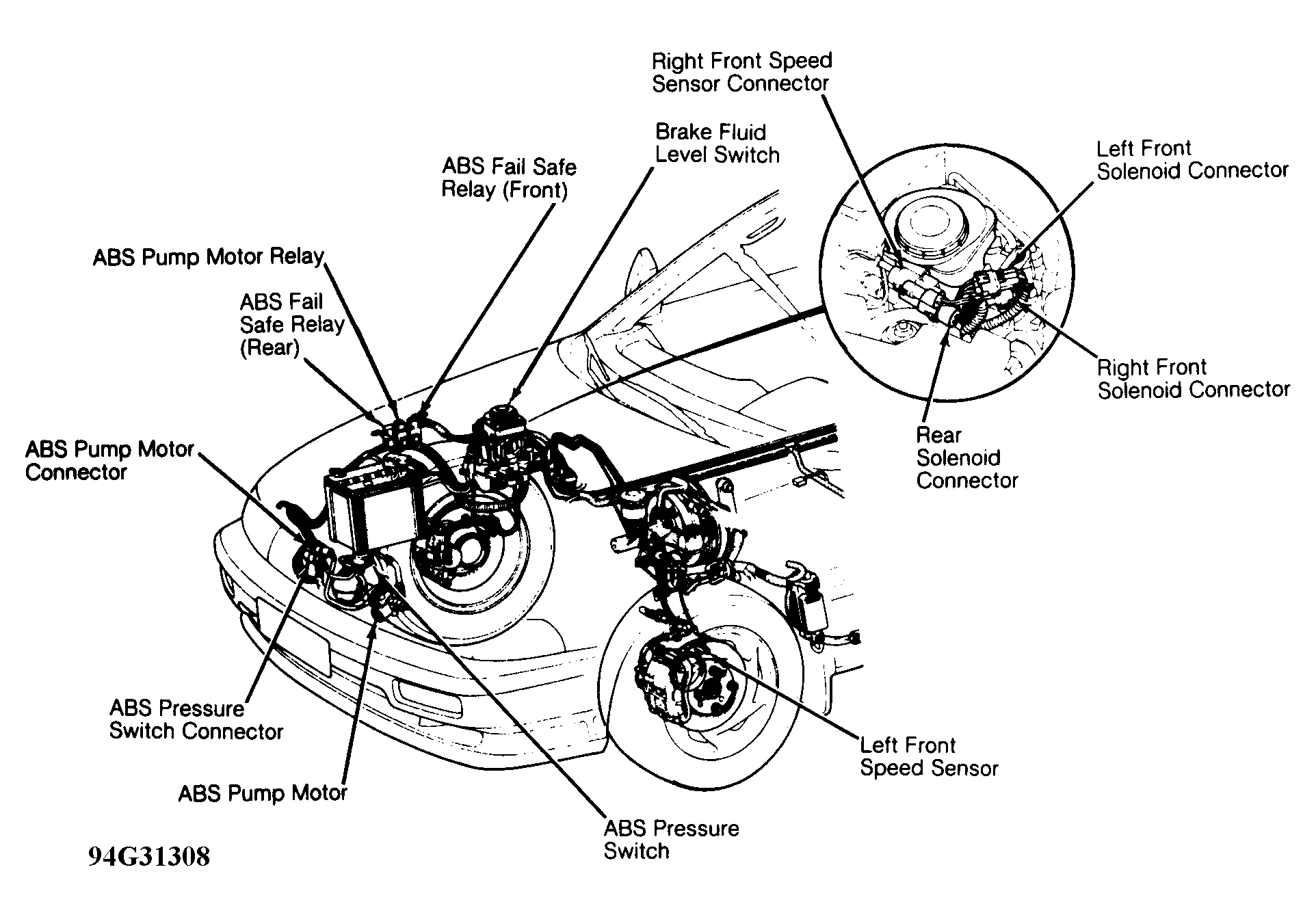

| ABS Pressure Switch | Below battery. See Figure . |
| A/C Pressure Switch | In refrigerant pipe between receiver-drier and condenser. |
| Back-Up Light Switch | On left front corner of transaxle. |
| Brake Fluid Level Switch | On bottom of brake fluid reservoir cap. See Figure . |
| Brakelight Switch | On bracket, above brake pedal. |
| Clutch Interlock Switch (M/T) | On bracket, above clutch pedal. |
| Clutch Switch (M/T) | On bracket, above clutch pedal. |
| Engine Coolant Temperature Switch | Lower right rear of engine, on thermostat housing. See Figure . |
| Engine Oil Pressure Switch | Near oil filter. |
| Engine Oil Temperature Switch | Near oil filter. See Figure . |
| Neutral Safety Switch (A/T) | Integrated with shift lever position switch. |
| Parking Brake Switch | On base of parking brake lever. |
| Power Steering Pressure Switch | On left side of engine compartment, on power steering line. See Figure . |
| Seat Belt Switch | In driver's seat belt buckle. |
| Shift Lever Position Switch (A/T) | Below center console, at base of shift lever. |
| VTEC Pressure Switch (1.7L) | On top right side of engine, near distributor. |
