Fuel Gauge Sending Unit

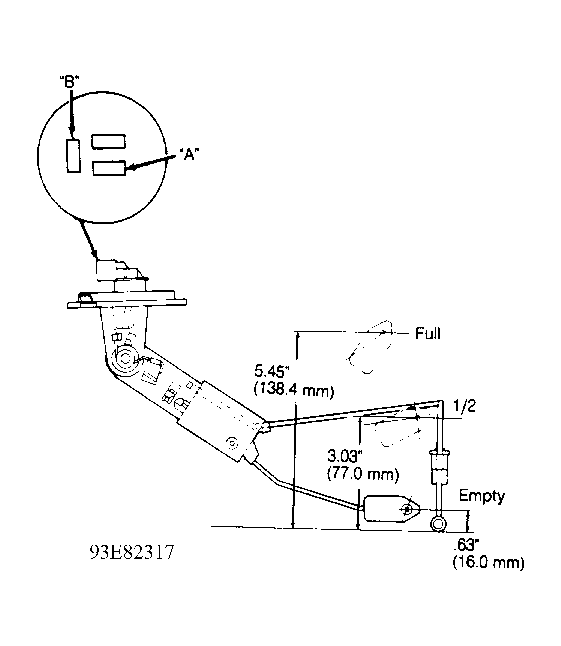

Remove rear seat. Remove fuel pump access cover. Turn ignition off. Unplug 3-pin connector from fuel gauge sending unit. Using Fuel Sender Wrench (07920-SB20000), remove sending unit. Measure resistance between sending unit terminals "A" and "B" while moving float. See Fig 1 . Resistance must be as specified in FUEL GAUGE SENDING UNIT RESISTANCE table.
FUEL GAUGE SENDING UNIT RESISTANCE
| Float Position | Ohms |
|---|---|
| Full | 2-5 |
| 1/2 | 25-39 |
| Empty | 105-110 |
