Vehicle Speed Sensor (VSS)

Remove instrument cluster. Connect ohmmeter between terminals "A" and "B" of VSS. See Fig 1 . Insert pencil into speedometer cable socket, and rotate it. Replace VSS if continuity does not exist 4 times per revolution.

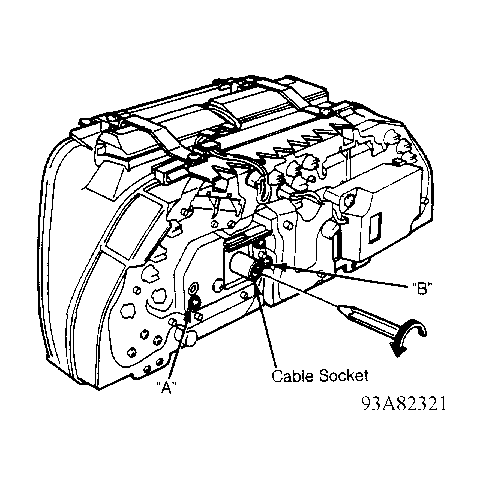

Fig 1: Testing Vehicle Speed Sensor

Courtesy of AMERICAN HONDA MOTOR CO., INC.
