INTEGRA 1.8L Pin Voltage Charts

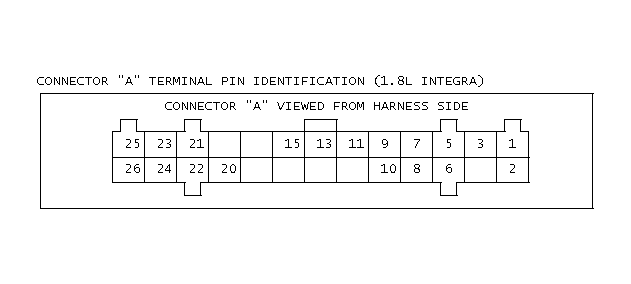

Fig 1: Connector "A" Terminal Pin Identification (1.8L Integra)

CONNECTOR "A" TERMINAL PIN VOLTAGE CHART (1.8L INTEGRA) ⁽¹⁾

Pin No.

Wire Color

Function/Description

Voltage Value (DC Volts Unless Otherwise Specified)

Brown

Injector No. 1

Battery Voltage W/KOEO

Yellow

Injector No. 4

Battery Voltage W/KOEO

Red

Injector No. 2

Battery Voltage W/KOEO

Lt. Blue

Injector No. 3

Battery Voltage W/KOEO

Orange/Black

Oxygen Sensor Heater

N/A

Green/Black

Fuel Pump Relay

12 Volts For 2 Sec. After KOEO

Green/Black

Fuel Pump Relay

12 Volts For 2 Sec. After KOEO

Blue/Yellow

Idle Air Control Valve (IACV)

N/A

A10

Green/Yellow

Pressure Regulator Control Solenoid

Battery Voltage W/KOEO

A11

Red

EGR Solenoid Control Valve

Battery Voltage W/KOEO

A13

Green/Orange

MIL CHECK ENGINE Light

Battery Voltage W/KOEO

A15

Yellow

A/C Clutch Relay

Battery Voltage W/KOEO

A20

Green

Purge Control Solenoid Valve

Battery Voltage W/KOEO

A21

Yellow/Green

Ignitor

N/A

A22

Yellow/Green

Ignitor

N/A

A23

Black

Power Ground

Below One Volt W/KOEO

A24

Black

Power Ground

Below One Volt W/KOEO

A25

Yellow/Black

Fuel Pump Relay

Battery Voltage W/KOEO

A26

Brown/Black

Shield Ground

N/A

⁽¹⁾	Terminal pins not listed are not used. KOEO=Key On Engine Off.

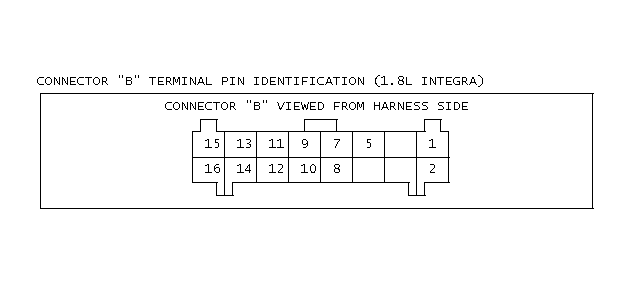

Fig 2: Connector "B" Terminal Pin Identification (1.8L Integra)

CONNECTOR "B" TERMINAL PIN VOLTAGE CHART (1.8L INTEGRA) ⁽¹⁾

Pin No.

Wire Color

Function/Description

Voltage Value (DC Volts Unless Otherwise Specified)

Yellow/Black

Fuel Pump Relay

Battery Voltage W/KOEO

Brown/Black

Ground

Below One Volt W/KOEO

Blue/Red

A/C Switch

N/A

Green

Park/Neutral Signal (A/T)

N/A

Red

Oil Pressure Switch

N/A

Blue/White

Fuel Pump Relay

12 Volts With Switch In START Position

B10

Yellow/Red

Vehicle Speed Sensor

Zero and 5 Volts As Left Front Wheel Rotates

B11

Orange

CYL Sensor "P"

N/A

B12

White

CYL Sensor "M"

N/A

B13

Orange/Blue

TDC Sensor "P"

N/A

B14

White/Blue

TDC Sensor "M"

N/A

B15

Blue/Green

CRANK Sensor "P"

N/A

B16

Blue/Yellow

CRANK Sensor "M"

N/A

⁽¹⁾	Terminal pins not listed are not used. KOEO=Key On Engine Off.

Fig 3: Connector "D" Terminal Pin Identification (1.8L Integra)

CONNECTOR "D" TERMINAL PIN VOLTAGE CHART (1.8L INTEGRA) ⁽¹⁾

Pin No.

Wire Color

Function/Description

Voltage Value (DC Volts Unless Otherwise Specified)

White/Yellow

Battery Power

Battery Voltage At All Times

Green/White

Brake Signal

Battery Voltage With Brake Applied

Brown

Service Check Connector

N/A

Lt. Blue

Data Link Connector

N/A

Blue

TCM (A/T)

N/A

Blue

Alternator

N/A

D11

Red/Blue

Throttle Position Sensor

0.5 Volt Closed; 4.5 Volts Open

D12

Yellow

EGR Valve Lift Sensor

One Volt Closed; 4.5 Volts Open

D13

Red/White

Coolant Temp. Sensor

N/A

D14

White

Oxygen (O2) Sensor

0.4-0.5 Volt When Ignition is First Turned On, Decreasing To Less Than 0.1 Volt in Less Than 2 Minutes

D15

Red/Yellow

Intake Air Temperature (TA) Sensor

N/A

D16

Blue/White

TCM (A/T)

N/A

D17

White

MAP Sensor

3-5 Volts Depending On Atmospheric Pressure

D19

Yellow/Red

MAP Sensor Reference

Approximately 5 Volts

D20

Yellow/White

Throttle Position Sensor Voltage

5 Volts

D21

Green/White

MAP Sensor Signal Ground

Approximately Zero

D22

Green/White

Signal Ground

Approximately Zero

⁽¹⁾	Terminal pins not listed are not used. KOEO=Key On Engine Off.
