Wiring Diagrams - Legend

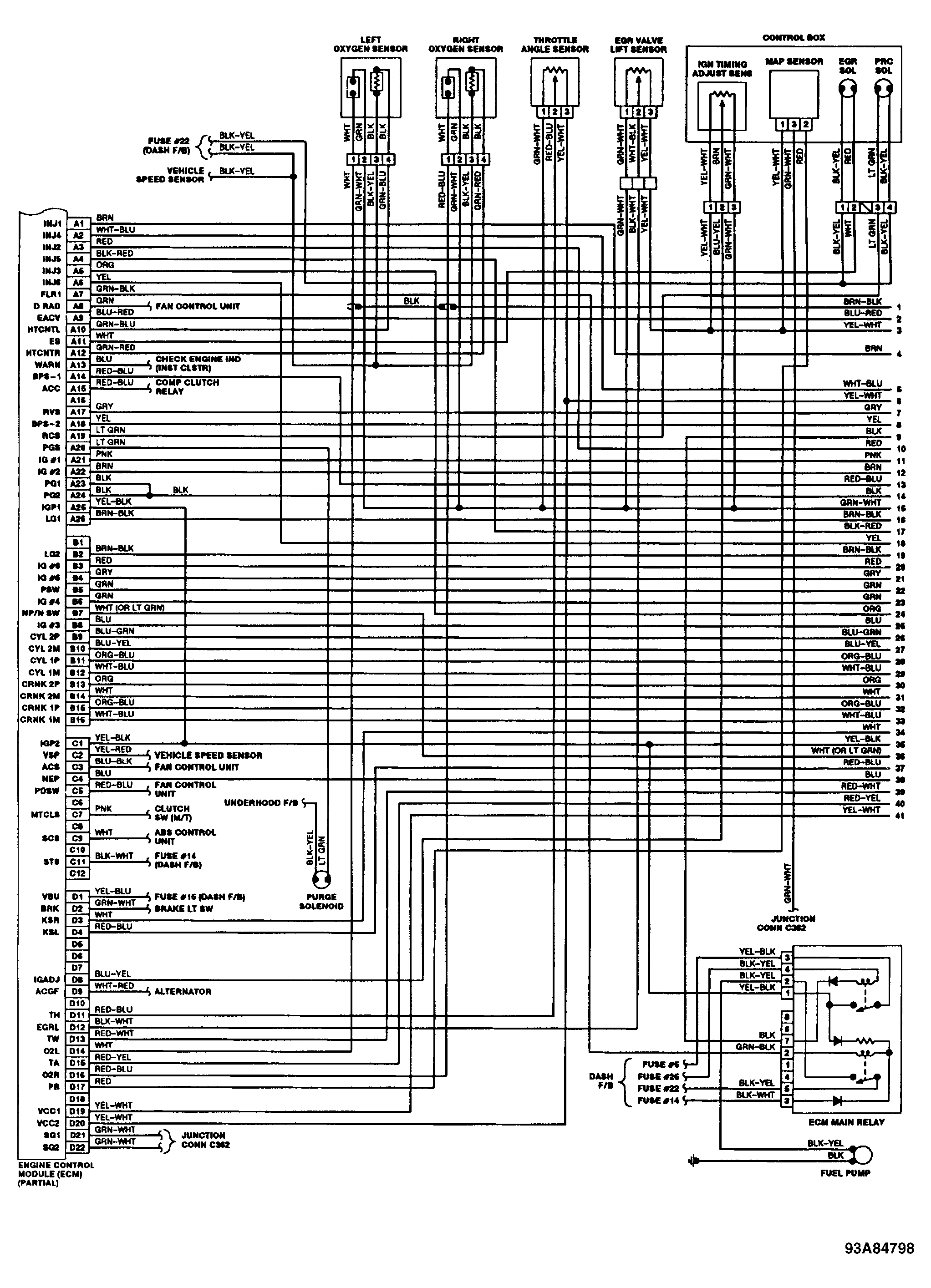

Fig 1: Wiring Diagram (Legend 3.2L - 1 Of 3)
G93A84798

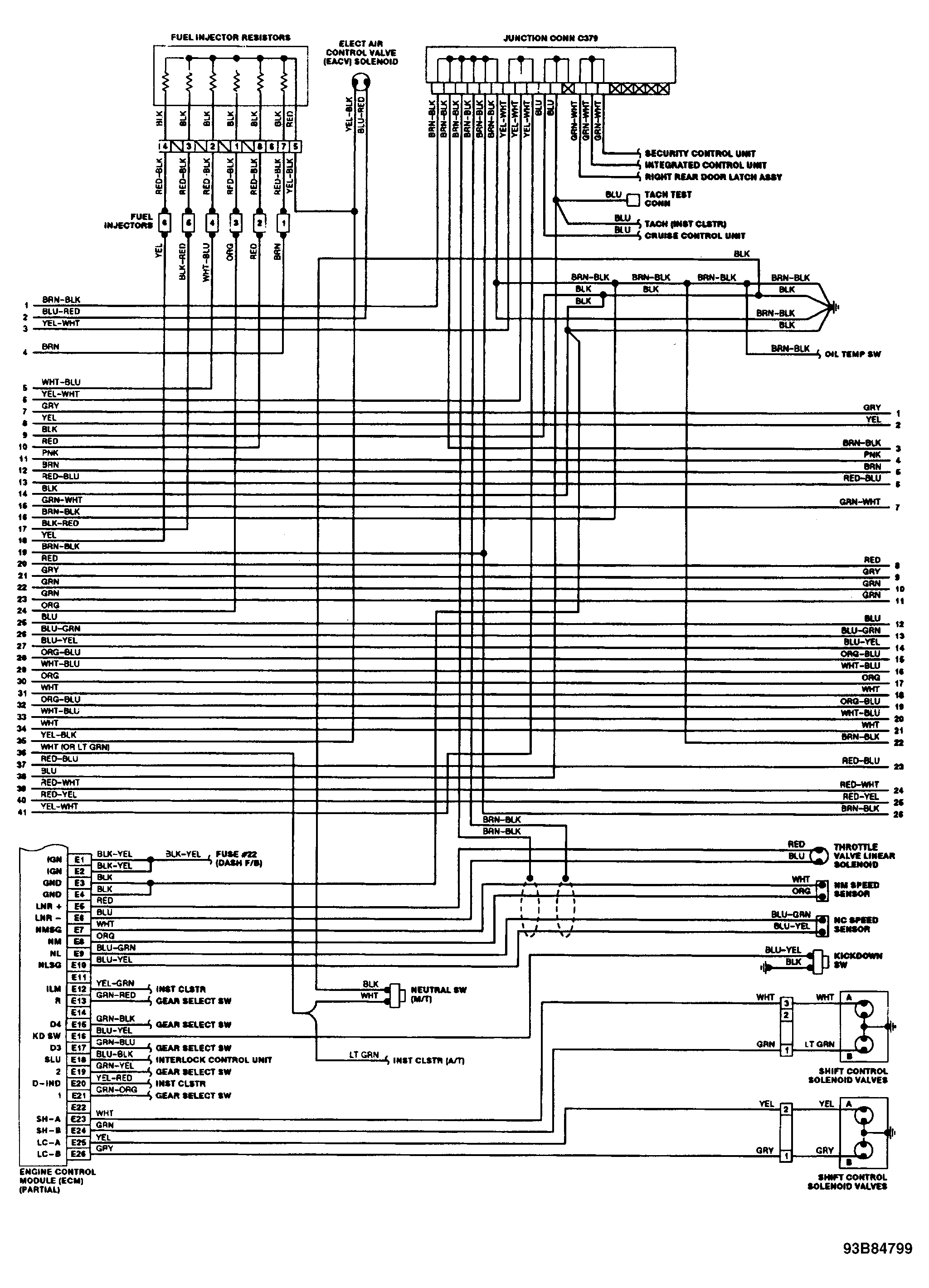

Fig 2: Wiring Diagram (Legend 3.2L - 2 Of 3)
G93B84799

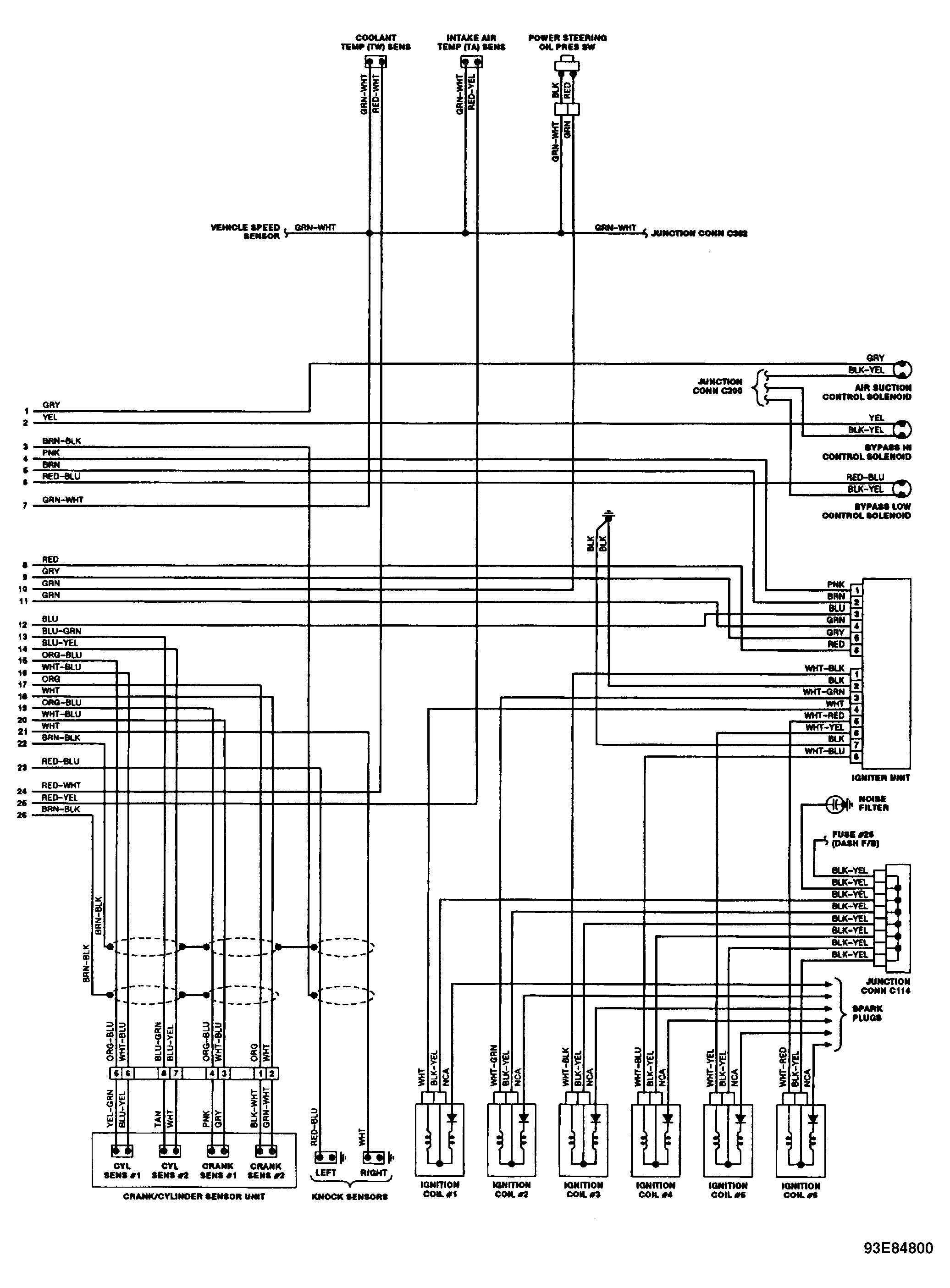

Fig 3: Wiring Diagram (Legend 3.2L - 3 Of 3)
G93E84800
