Control Units
CONTROL UNITS LOCATION
| Component | Location | |
|---|---|---|
| ABS Control Unit | ||

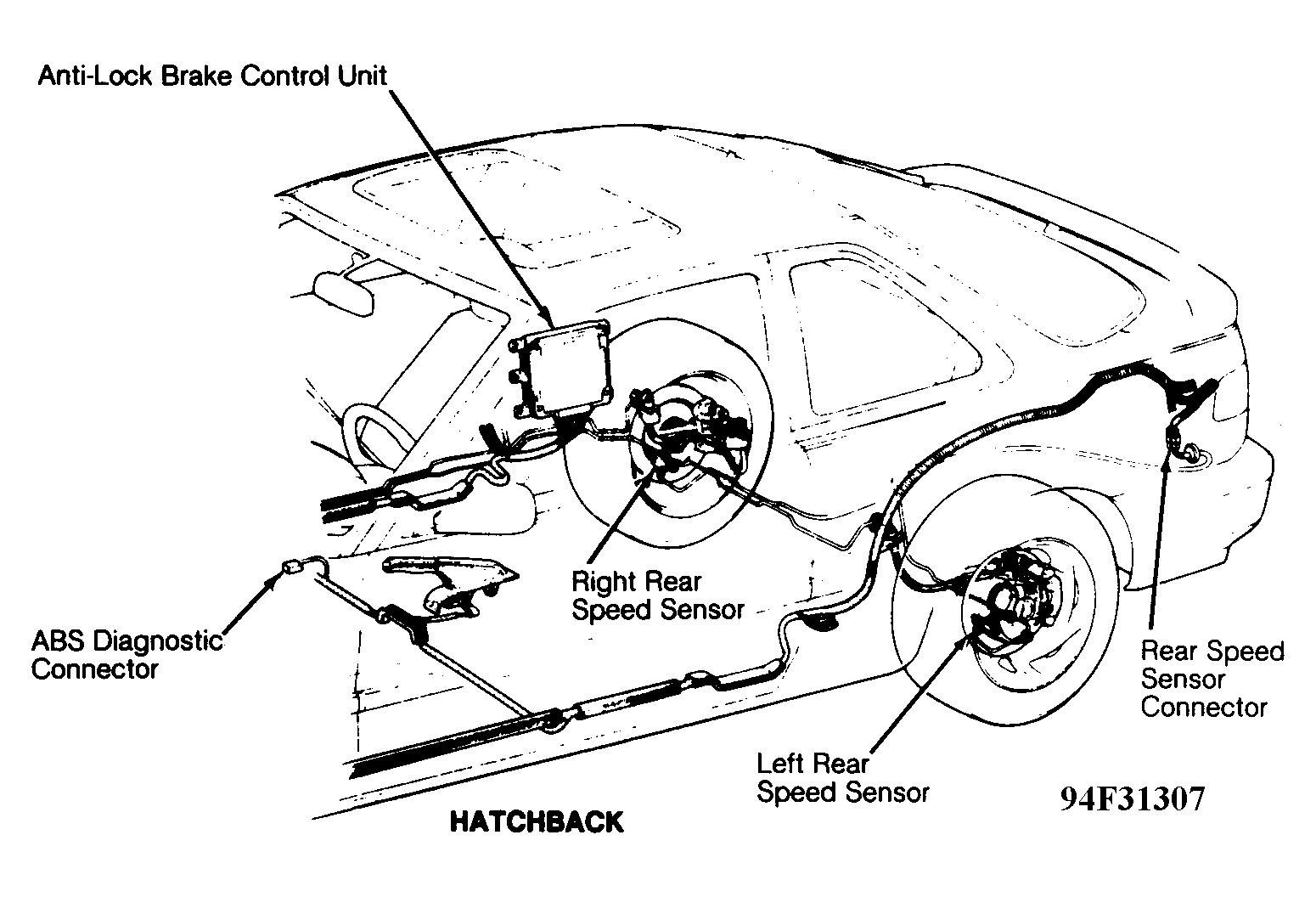

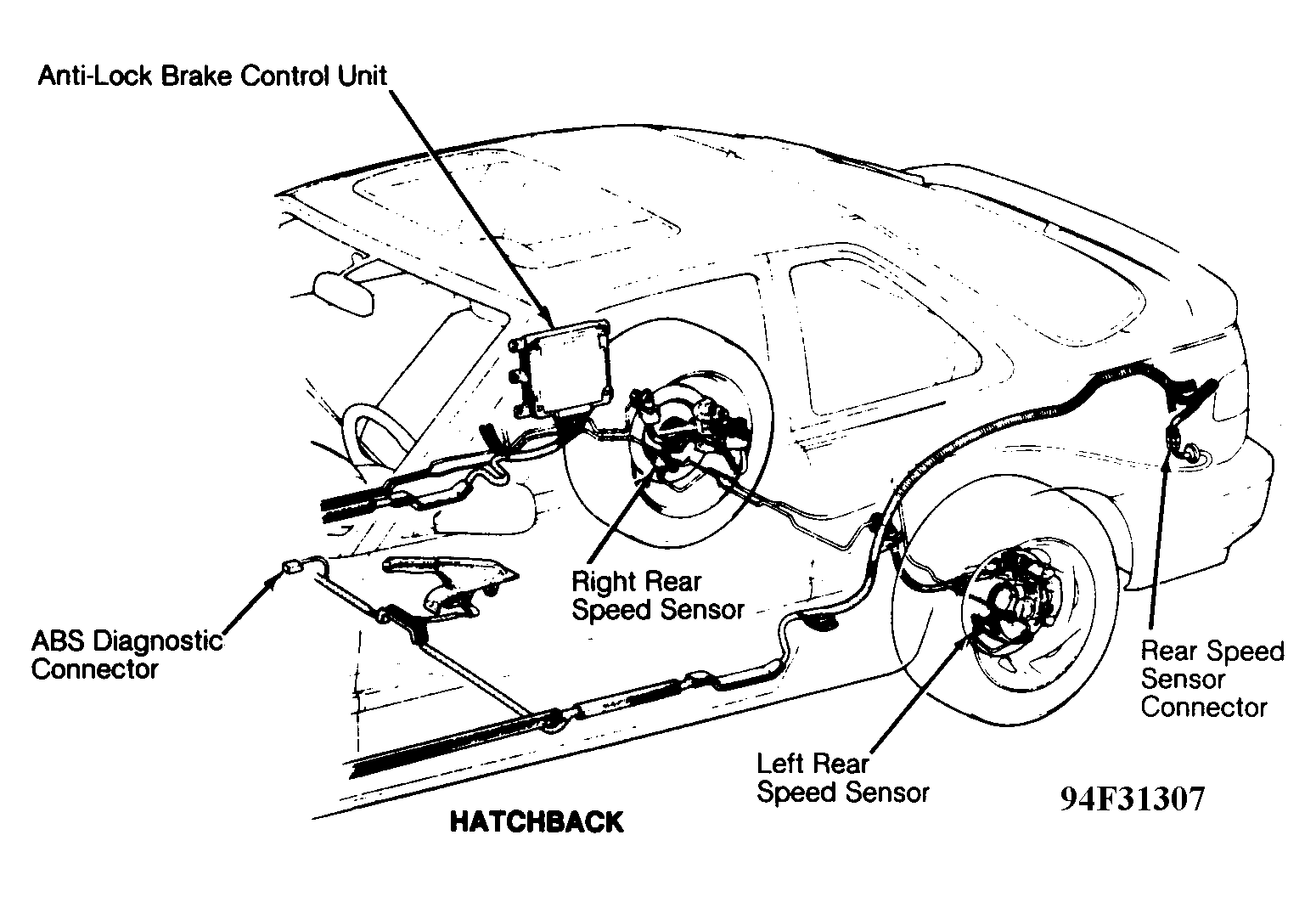

| Hatchback | Behind right quarter panel. See Figure . | |

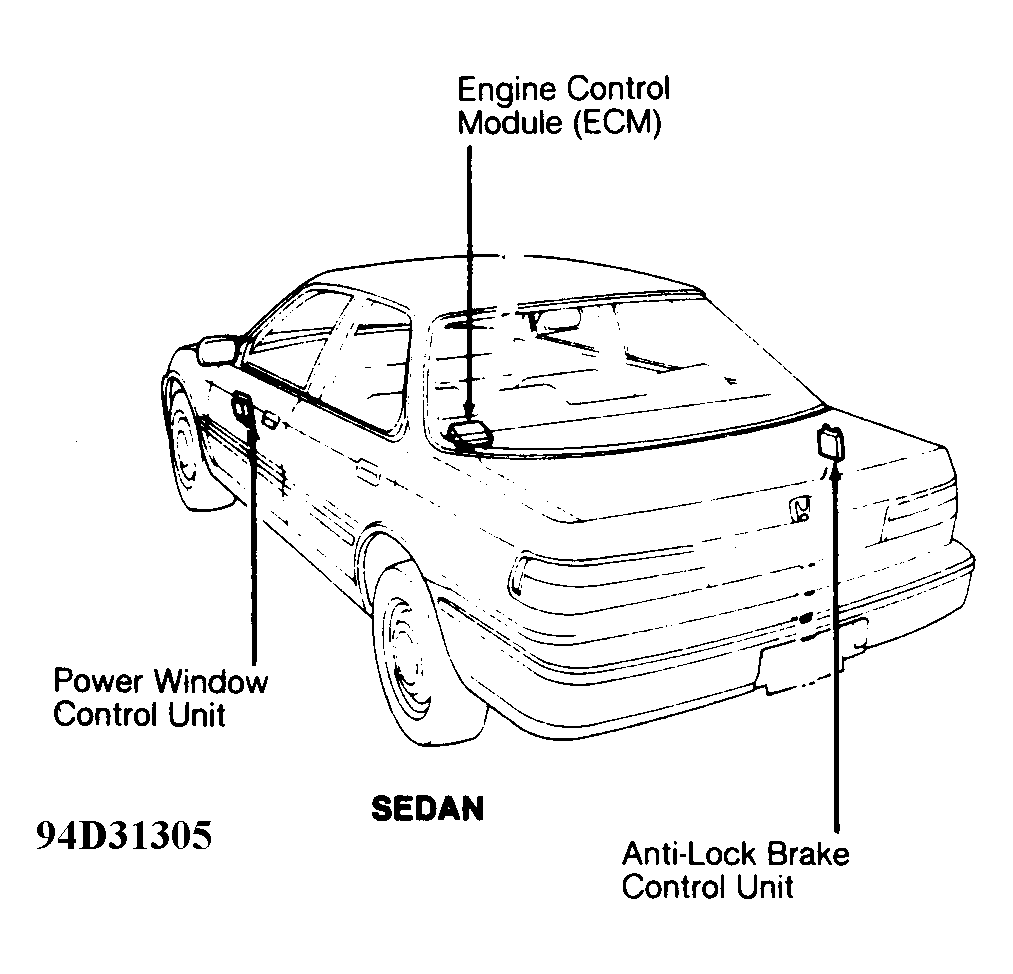

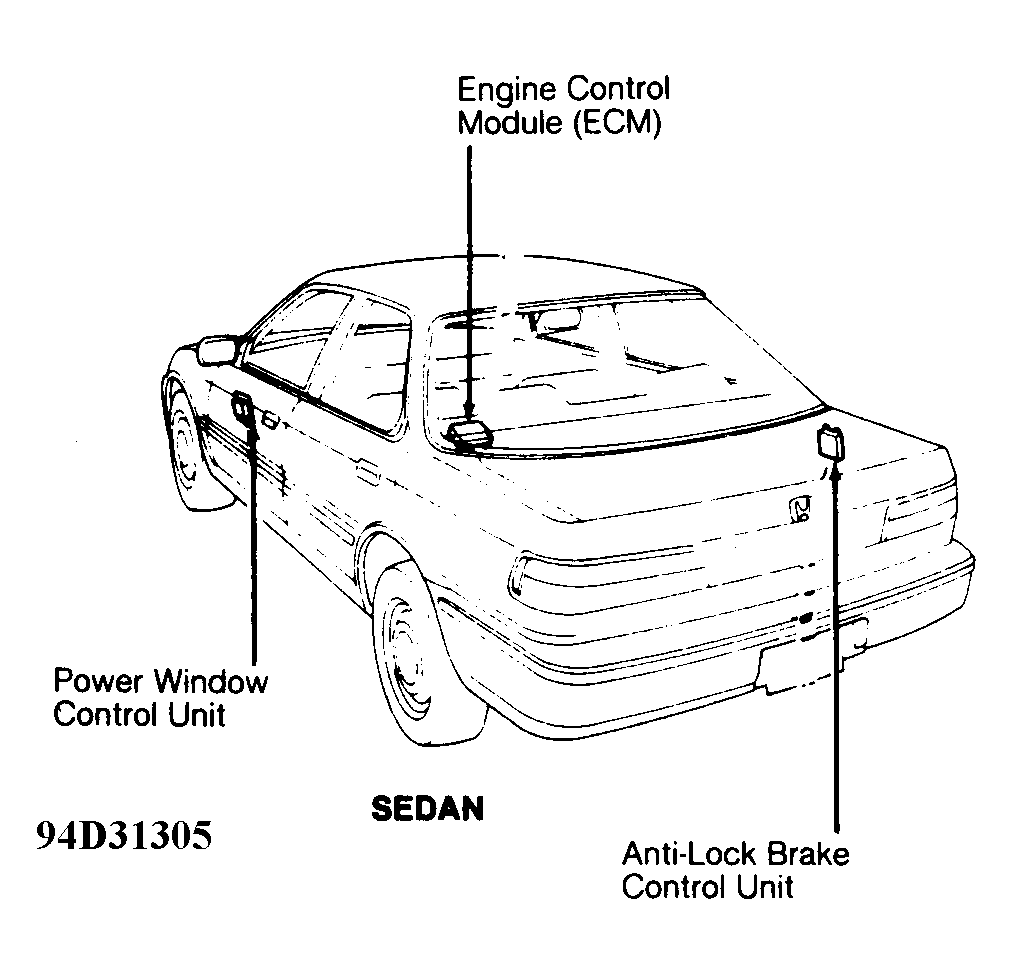

| Sedan | On right side of luggage compartment, behind trim panel. See Figure . | |

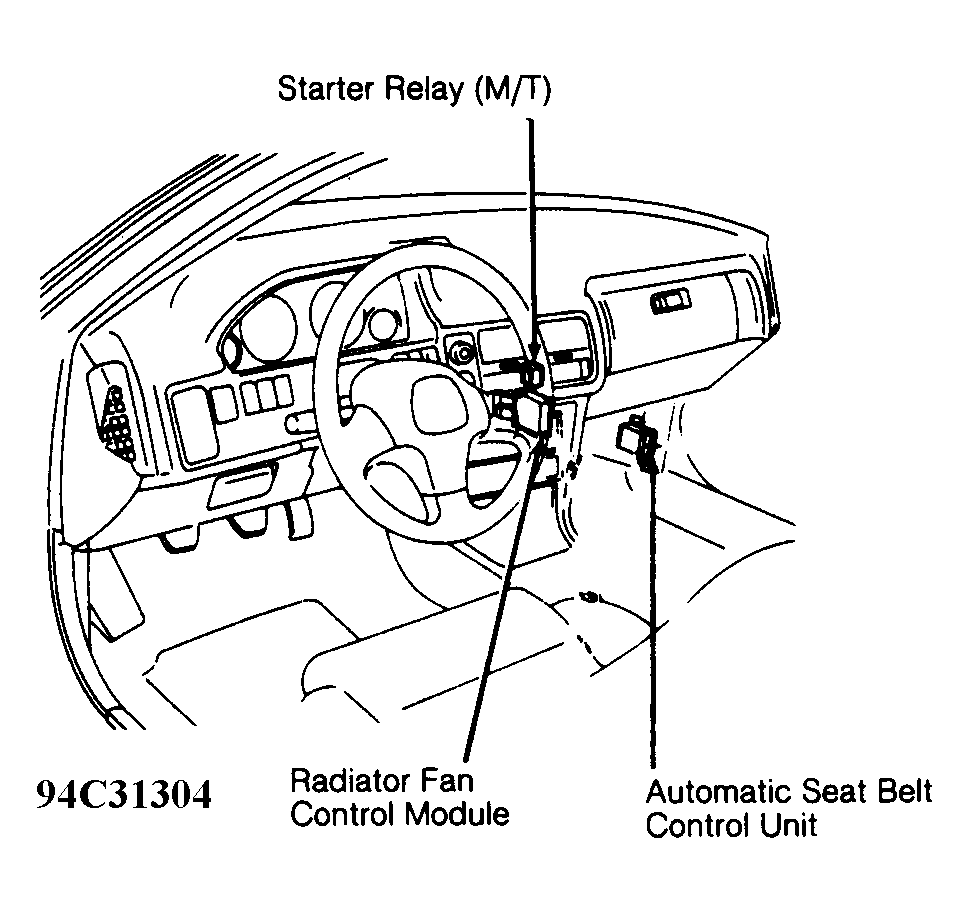

| Automatic Seat Belt Control Unit | Behind right kick panel. See Figure . | |
| Chime Module | Behind center of dash. | |
| Cruise Control Unit | Under left side of dash, above fuse/relay block. See Figure . | |
| Engine Control Module (ECM) | Right front footwell (under carpet). See Figure . | |

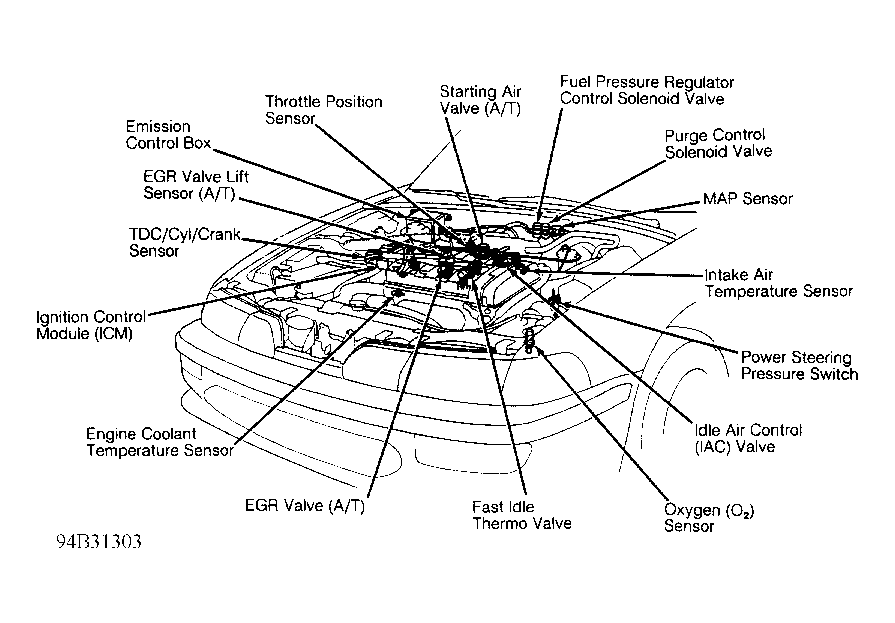

| Ignition Control Module (ICM) | Inside distributor. See Figure . | |
| Integrated Control Unit | On rear of passenger compartment fuse/relay block. See Figure . | |
| Interlock Control Unit (A/T) | Behind center of dash. | |
| Power Door Lock Control Unit | Under left side of dash, left of steering column. See Figure . | |
| Power Window Control Unit | Integral with driver's power window switch. See Figure . | |
| Radiator Fan Control Module | Behind center of dash, on right side of heater assembly. See Figure . | |
| Security Control Unit | Below glove box. | |
| Transmission Ctrl Module (TCM) | Left side of dash, above fuse/relay box. See Figure . | |
