Electrical Component Locator: Miscellaneous

MISCELLANEOUS LOCATION

Component Location
A/C Diode Below right side of dash, below evaporator housing.
A/C Thermostat Behind center console, on left side of evaporator.
A/T Speed Pulser On top right side of transmission.
Blower Motor Resistor Behind glove box, on top of blower motor housing.
Check/Test Connectors
ABS Test Connector Under passenger seat. See Figure .
Data Link Connector (DLC) Behind right kick panel.
Service Check Connector Behind right kick panel.
Cruise Control Actuator On left side of engine compartment, in front of strut tower.
Daytime Running Light (DRL) Resistor (Canada) In left front corner of engine compartment.

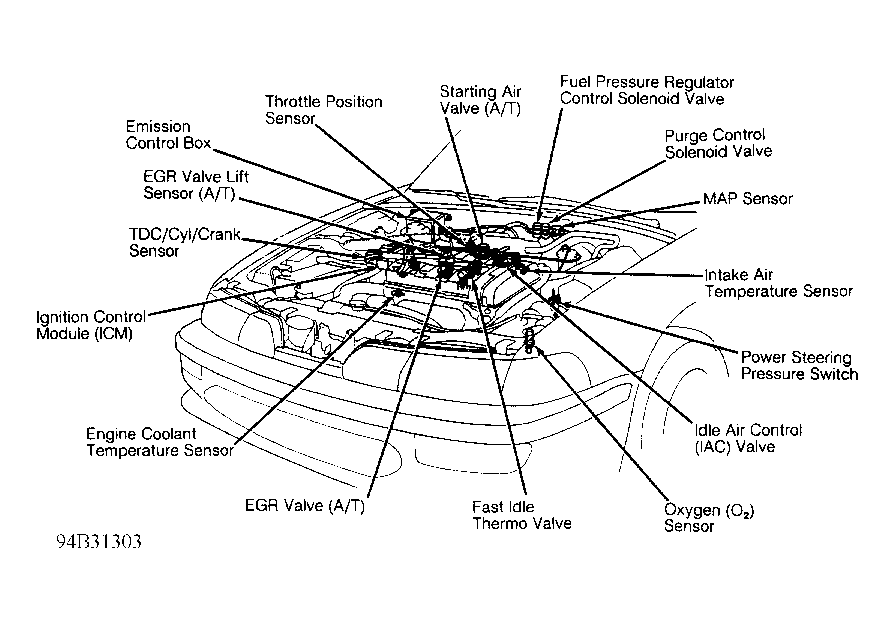

Emission Control Box On right side of firewall includes EGR & fast idle solenoids). See Figure .
