Steering Column: Overhaul

NOTE: For exploded view of steering column, see Fig 1.

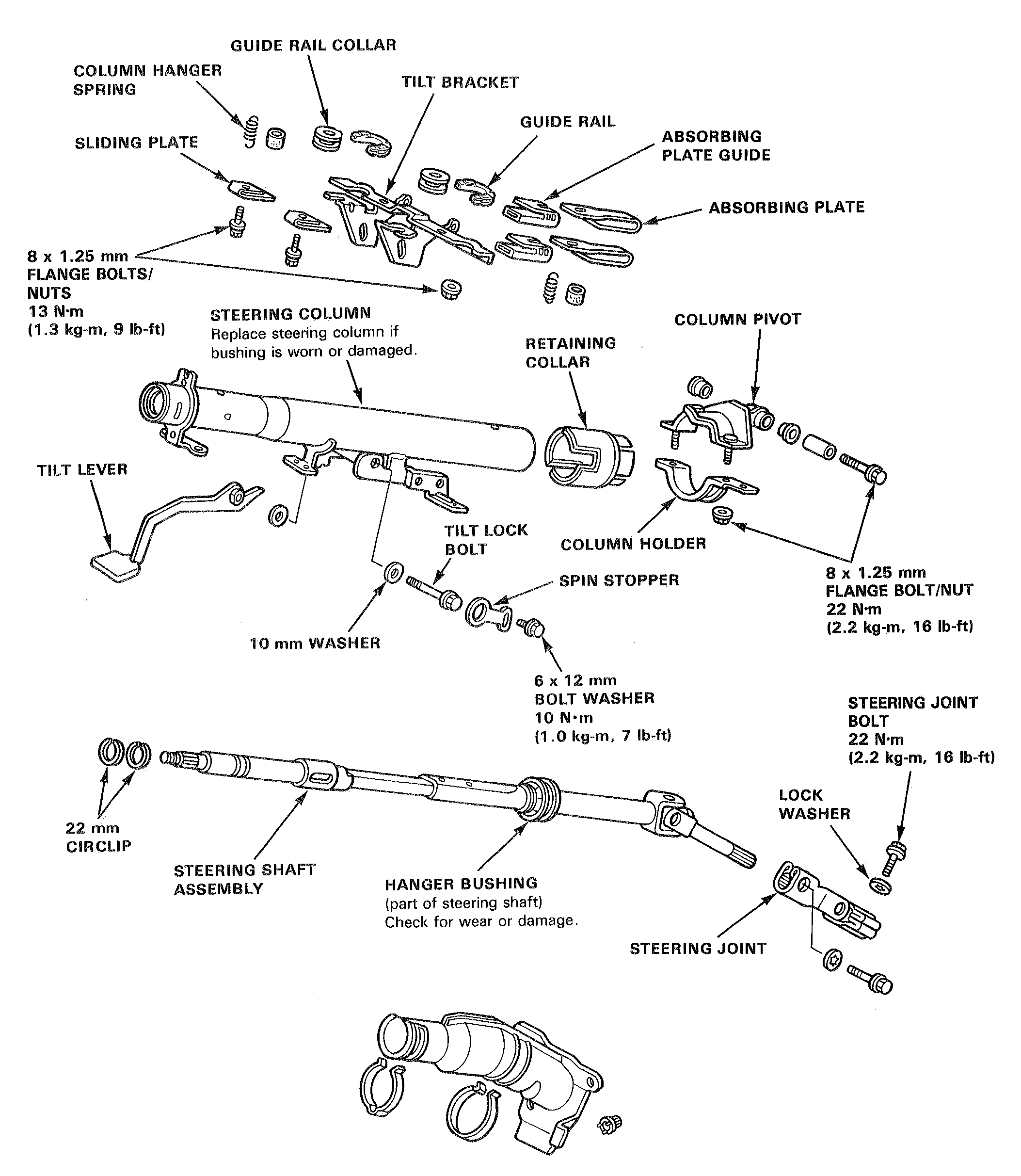

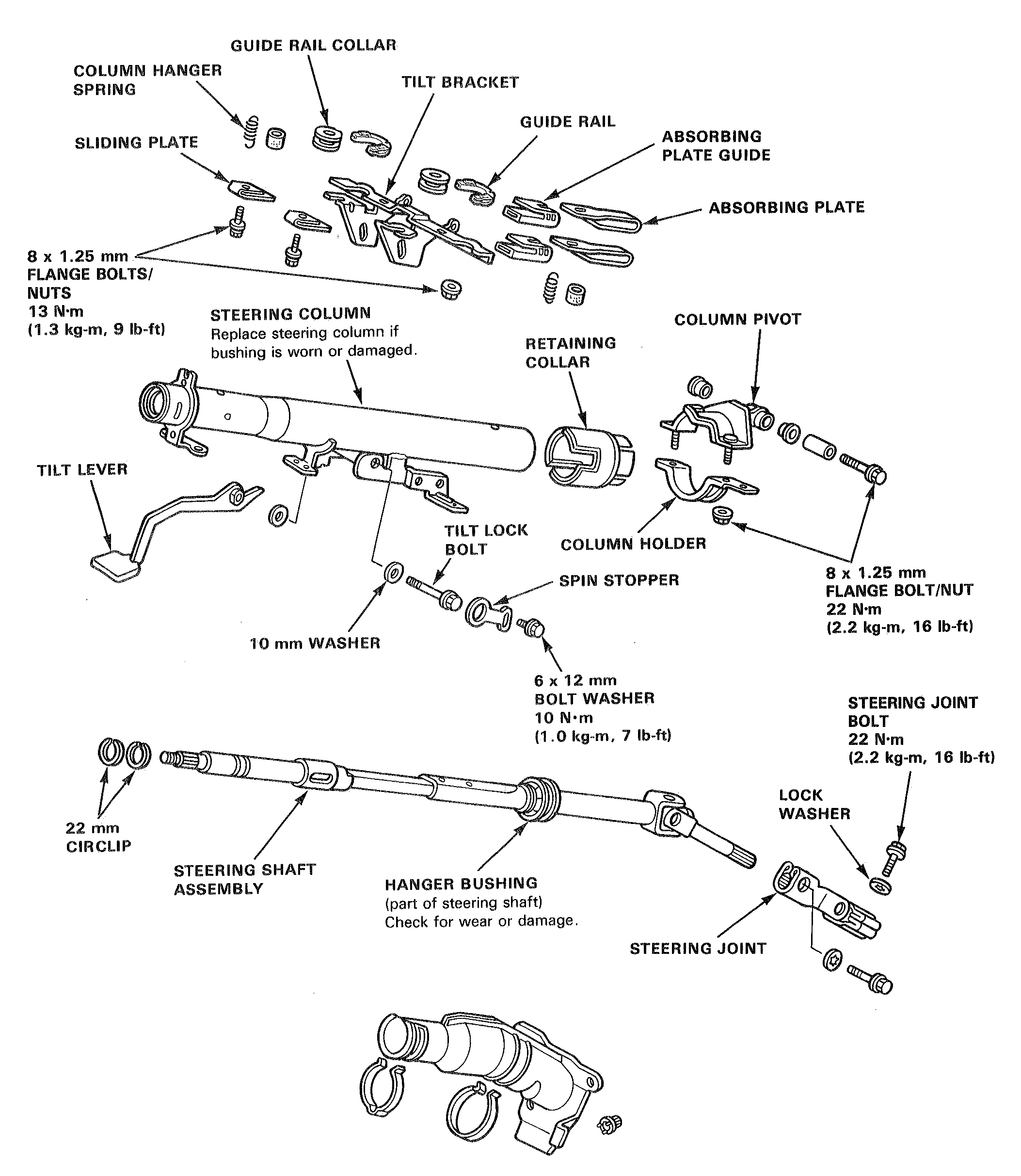

Fig 1: Exploded View Of Steering Column Assembly
G00501232Courtesy of AMERICAN HONDA MOTOR CO., INC.
